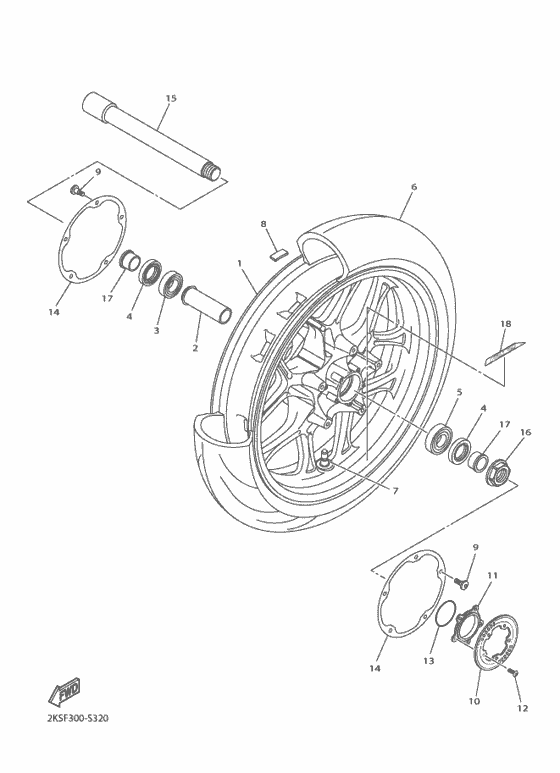

Front wheel Diagram Yamaha YZF-R1 R1M
- Year
- 2017
- Colour
- Bluish White Metallic 2
- Model code
- 2KSF
- Sales region
- Europe (060)
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- YZF-R1M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2CR-25168-00-P0 Cast Wheel, FrontDPBM15 |
2CR-25168-00-P0 |
from US $1,848 |
||
|
2
|
2
2CR-2510B-00-00 Spacer Assy |
2CR-2510B-00-00 |
from US $27.06 |
||
|
3
|
3
933-06005-07-00 Bearing |
933-06005-07-00 |
from US $20.40 |
||
|
4
|
4
931-06310-01-00 Oil Seal |
931-06310-01-00 |
from US $4.53 |
||
|
5
|
5
93306-20509-00 Bearing (B6205) (93306-20525-00 |
93306-20509-00 |
from US $23.80 |
||
|
6
|
6
941-12171-32-00 Tire (120/70 Zr17M/c 58W)BRIDGESTONE |
941-12171-32-00 |
US $334.67 |
||
|
7
|
7
939-00000-30-00 Valve, Rim (Tr412)TAIHEIYO |
939-00000-30-00 |
from US $7.65 |
||
|
8
|
8
2CR-25398-00-00 Balancer, Wheel (5G)UN |
2CR-25398-00-00 |
from US $3.54 |
||
|
9
|
9
2CR-2589H-00-00 Screw |
2CR-2589H-00-00 |
from US $7.37 |
||
| replacement | |||||
|
9
|
9
2CR-2589H-09-00 SCREW |
2CR-2589H-09-00 |
from US $5.73 |
||
|
10
|
10
1SD-2517G-00-00 Rotor, Sensor |
1SD-2517G-00-00 |
from US $98.78 |
||
|
11
|
11
2CR-2514A-00-00 Ring, Wheel 1 |
2CR-2514A-00-00 |
from US $41.59 |
||
|
12
|
12
901-49050-37-00 Screw |
901-49050-37-00 |
from US $1.28 |
||
| replacement | |||||
|
12
|
12
90149-05038-00 Screw |
90149-05038-00 |
from US $0.80 |
||
|
13
|
13
93210-47440-00 O-Ring |
93210-47440-00 |
from US $3.54 |
||
|
14
|
14
2CR-2539F-00-00 Plate 1 |
2CR-2539F-00-00 |
from US $16.58 |
||
|
15
|
15
2CR-25181-00-00 Axle, Wheel |
2CR-25181-00-00 |
from US $67.15 |
||
|
16
|
16
901-79240-04-00 Nut |
901-79240-04-00 |
from US $12.75 |
||
|
17
|
17
903-87250-32-00 Collar |
903-87250-32-00 |
from US $13.60 |
||
|
18
|
18
2KS-251G3-00-00 EMBLEM |
2KS-251G3-00-00 |
from US $10.63 |
||
| replacement | |||||
|
18
|
18
2KS-251G3-01-00 |
2KS-251G3-01-00 |
US $14.35 |
||
