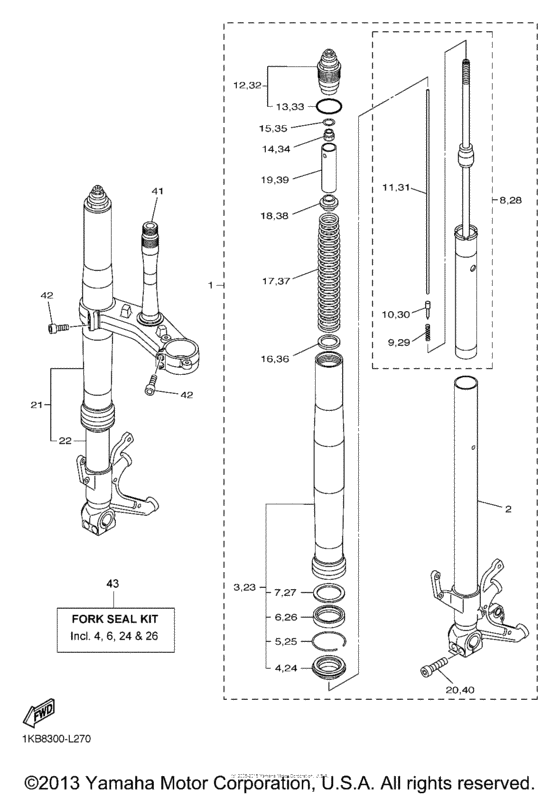

Front fork Diagram Yamaha YZF-R1 R1
- Year
- 2012
- Colour
- Bluish White Cocktail 1
- Model code
- 1KBF
- Sales region
- United States (California)
- Базовая модель
- YZFR1BCW
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1KB-23102-10-00 Front Fork Assy (L.h) |
1KB-23102-10-00 |
from US $964.16 |
||
|
2
|
2
1KB-23110-00-00 Inner Tube Comp.1 |
1KB-23110-00-00 |
from US $456.94 |
||
| replacement | |||||
|
2
|
2
1KB-23110-01-00 Inner Tube Comp.1 |
1KB-23110-01-00 |
from US $456.94 |
||
|
3
|
3
14B-23106-10-00 Outer Tube Comp. (L.h) |
14B-23106-10-00 |
from US $425.57 |
||
|
4
|
4
4TX-23144-01-00 Seal, Dust |
4TX-23144-01-00 |
from US $8.60 |
||
|
5
|
5
4TX-23156-00-00 Ring, Snap |
4TX-23156-00-00 |
from US $3.26 |
||
|
6
|
6
5VX-23145-00-00 Oil Seal |
5VX-23145-00-00 |
from US $7.62 |
||
|
7
|
7
4TX-23115-00-00 Guide, Cover Upper |
4TX-23115-00-00 |
from US $5.38 |
||
|
8
|
8
1KB-2315K-00-00 Cyl. Comp., 2 |
1KB-2315K-00-00 |
from US $344.02 |
||
|
9
|
9
14B-2319M-00-00 Spring, Valve |
14B-2319M-00-00 |
from US $1.98 |
||
|
10
|
10
14B-23109-00-00 Valve |
14B-23109-00-00 |
from US $4.39 |
||
|
11
|
11
14B-2318Y-00-00 Plunger |
14B-2318Y-00-00 |
US $3.68 |
||
|
12
|
12
14B-23111-00-00 Bolt, Cap |
14B-23111-00-00 |
from US $161.65 |
||
|
13
|
13
93210-41N50-00 O-Ring |
93210-41N50-00 |
from US $3.68 |
||
|
14
|
14
13S-23393-00-00 Nut, Special |
13S-23393-00-00 |
from US $11.33 |
||
|
15
|
15
13S-2332N-00-00 Plate, Valve 2 |
13S-2332N-00-00 |
from US $2.55 |
||
|
16
|
16
90201-25291-00 Washer, Plate |
90201-25291-00 |
from US $1.56 |
||
|
17
|
17
14B-23141-00-00 Spring, Front Fork |
14B-23141-00-00 |
US $107.63 |
||
|
18
|
18
13S-23142-00-00 Seat, Spring Upper |
13S-23142-00-00 |
from US $1.98 |
||
|
19
|
19
14B-23118-00-00 Spacer |
14B-23118-00-00 |
from US $8.08 |
||
|
20
|
20
91314-08035-00 Bolt, Hexagon Socket Head |
91314-08035-00 |
from US $3.24 |
||
|
21
|
21
1KB-23103-10-00 Front Fork Assy (R.h) |
1KB-23103-10-00 |
from US $1,074.52 |
||
|
22
|
22
1KB-23120-00-00 Inner Tube Comp. 2 |
1KB-23120-00-00 |
from US $448.29 |
||
| replacement | |||||
|
22
|
22
1KB-23120-01-00 Inner Tube Comp. 2 |
1KB-23120-01-00 |
from US $366.97 |
||
|
23
|
23
14B-23106-10-00 Outer Tube Comp. (L.h) |
14B-23106-10-00 |
from US $425.57 |
||
|
24
|
24
4TX-23144-01-00 Seal, Dust |
4TX-23144-01-00 |
from US $8.60 |
||
|
25
|
25
4TX-23156-00-00 Ring, Snap |
4TX-23156-00-00 |
from US $3.26 |
||
|
26
|
26
5VX-23145-00-00 Oil Seal |
5VX-23145-00-00 |
from US $7.62 |
||
|
27
|
27
4TX-23115-00-00 Guide, Cover Upper |
4TX-23115-00-00 |
from US $5.38 |
||
|
28
|
28
1KB-2315L-00-00 Cyl. Comp., 3 |
1KB-2315L-00-00 |
from US $344.02 |
||
|
29
|
29
14B-2319M-00-00 Spring, Valve |
14B-2319M-00-00 |
from US $1.98 |
||
|
30
|
30
14B-23109-00-00 Valve |
14B-23109-00-00 |
from US $4.39 |
||
|
31
|
31
14B-2318Y-00-00 Plunger |
14B-2318Y-00-00 |
US $3.68 |
||
|
32
|
32
14B-2311J-00-00 Bolt, Cap 2 |
14B-2311J-00-00 |
from US $161.65 |
||
|
33
|
33
93210-41N50-00 O-Ring |
93210-41N50-00 |
from US $3.68 |
||
|
34
|
34
13S-23393-00-00 Nut, Special |
13S-23393-00-00 |
from US $11.33 |
||
|
35
|
35
13S-2332N-00-00 Plate, Valve 2 |
13S-2332N-00-00 |
from US $2.55 |
||
|
36
|
36
90201-25291-00 Washer, Plate |
90201-25291-00 |
from US $1.56 |
||
|
37
|
37
14B-23141-00-00 Spring, Front Fork |
14B-23141-00-00 |
US $107.63 |
||
|
38
|
38
13S-23142-00-00 Seat, Spring Upper |
13S-23142-00-00 |
from US $1.98 |
||
|
39
|
39
14B-23118-00-00 Spacer |
14B-23118-00-00 |
from US $8.08 |
||
|
40
|
40
91314-08035-00 Bolt, Hexagon Socket Head |
91314-08035-00 |
from US $3.24 |
||
|
41
|
41
14B-23340-00-00 Under Bracket Comp |
14B-23340-00-00 |
from US $545.60 |
||
|
42
|
42
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.07 |
||
|
43
|
43
5VX-W003B-00-00 Fork Seal Kit |
5VX-W003B-00-00 |
from US $46.46 |
||
