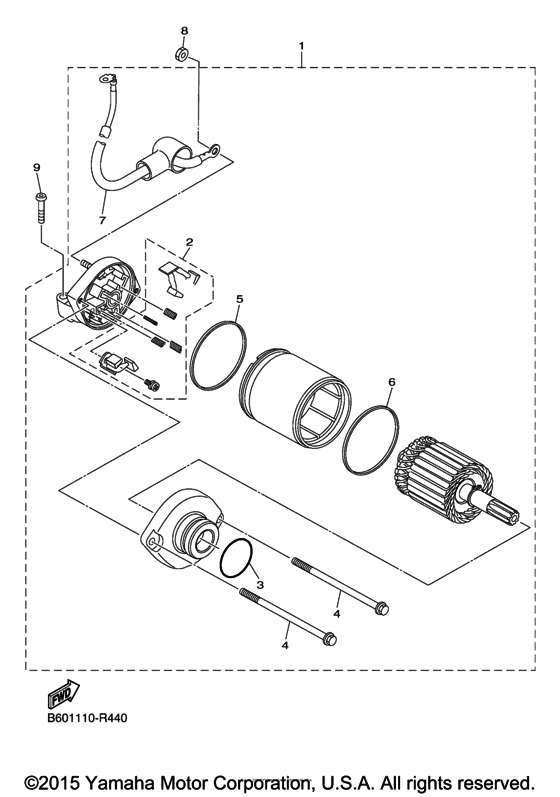

Starting motor Diagram Yamaha YZF-R1 R1
- Year
- 2016
- Model code
- 2CRF
- Sales region
- United States (California)
- Базовая модель
- YZFR1GCL
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2CR-81890-10-00 Motor Assy |
2CR-81890-10-00 |
from US $386.30 |
||
|
2
|
2
2CR-81801-10-00 Brush Set |
2CR-81801-10-00 |
from US $12.75 |
||
|
3
|
3
5VV-H182L-00-00 O-Ring 1 |
5VV-H182L-00-00 |
from US $4.53 |
||
|
4
|
4
2CR-81846-00-00 Screw |
2CR-81846-00-00 |
from US $4.53 |
||
|
5
|
5
93210-06422-00 O-Ring |
93210-06422-00 |
from US $1.84 |
||
| replacement | |||||
|
5
|
5
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.84 |
||
|
6
|
6
2CR-81861-00-00 Gasket |
2CR-81861-00-00 |
from US $5.38 |
||
| replacement | |||||
|
6
|
6
2CR-81861-10-00 Gasket |
2CR-81861-10-00 |
from US $5.38 |
||
|
7
|
7
2CR-8183G-10-00 Cord Comp |
2CR-8183G-10-00 |
from US $50.57 |
||
|
8
|
8
95302-06700-00 Nut, Hexagon |
95302-06700-00 |
from US $1.42 |
||
| replacements | |||||
|
8
|
8
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
8
|
8
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
|
9
|
9
913-12060-30-00
Bolt
|
913-12060-30-00 |
— | ||
| replacement | |||||
|
9
|
9
90110-06138-00 Bolt |
90110-06138-00 |
from US $0.99 |
||
