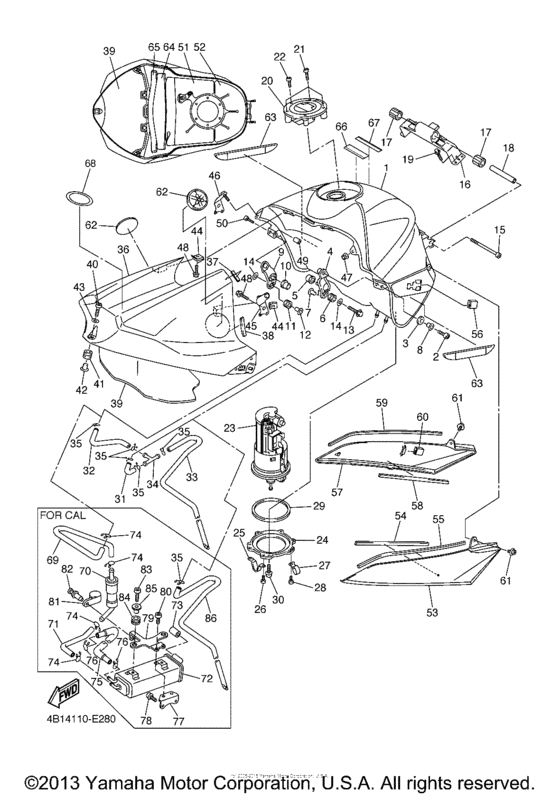

Fuel tank Diagram Yamaha YZF-R1 R1S Limited Edition
- Year
- 2006
- Colour
- Reddish Yellow Cocktail 1
- Model code
- 4B15
- Sales region
- United States (California)
- Базовая модель
- YZFR1LEVC
- Engine Capacity
- 1000
- Model
- YZF-R1S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VY-YK241-30-P3
Fuel Tank Comp
for Color REDDISH YELLOW COCKTAIL 1 RYC1 / 0251 |
5VY-YK241-30-P3 |
— | ||
|
2
|
2
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.04 |
||
|
3
|
3
5VY-24183-00-00 Damper, Locating 3 |
5VY-24183-00-00 |
from US $3.26 |
||
|
4
|
4
5VY-24191-00-00 Bracket, Fuel Tank 1 |
5VY-24191-00-00 |
from US $11.90 |
||
| replacement | |||||
|
4
|
4
5VY-24191-10-00 Bracket, Fuel Tank 1 |
5VY-24191-10-00 |
from US $11.90 |
||
|
5
|
5
5VY-24181-00-00 Damper, Locating 1 |
5VY-24181-00-00 |
from US $2.69 |
||
|
6
|
6
90480-10542-00 Grommet |
90480-10542-00 |
from US $5.95 |
||
|
7
|
7
90387-066Y6-00 Collar |
90387-066Y6-00 |
from US $4.39 |
||
|
8
|
8
90387-061U9-00 Collar |
90387-061U9-00 |
from US $3.68 |
||
| replacement | |||||
|
8
|
8
90387-087L0-00 Collar |
90387-087L0-00 |
from US $3.68 |
||
|
9
|
9
5VY-24192-00-00 Bracket, Fuel Tank 2 |
5VY-24192-00-00 |
from US $11.90 |
||
| replacement | |||||
|
9
|
9
5VY-24192-10-00 Bracket, Fuel Tank 2 |
5VY-24192-10-00 |
from US $11.90 |
||
|
10
|
10
5VY-24181-00-00 Damper, Locating 1 |
5VY-24181-00-00 |
from US $2.69 |
||
|
11
|
11
90480-10542-00 Grommet |
90480-10542-00 |
from US $5.95 |
||
|
12
|
12
90387-066Y6-00 Collar |
90387-066Y6-00 |
from US $4.39 |
||
|
13
|
13
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.36 |
||
|
14
|
14
90201-06063-00 Washer, Plate |
90201-06063-00 |
from US $1.70 |
||
| replacement | |||||
|
14
|
14
90201-06095-00 Washer, Plate |
90201-06095-00 |
from US $1.70 |
||
|
15
|
15
91317-06090-00 Bolt |
91317-06090-00 |
from US $3.74 |
||
|
16
|
16
5VY-2413Y-00-00 Bracket, Tank Fitting |
5VY-2413Y-00-00 |
from US $49.18 |
||
|
17
|
17
5SL-24183-00-00 Damper, Locating 3 |
5SL-24183-00-00 |
from US $3.68 |
||
|
18
|
18
903-87060-55-00 Collar |
903-87060-55-00 |
from US $4.39 |
||
|
19
|
19
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.42 |
||
|
20
|
20
5JJ-24602-00-00
Cap Assy
|
5JJ-24602-00-00 |
— | ||
| replacement | |||||
|
20
|
20
39P-24602-00-00 Cap Assy |
39P-24602-00-00 |
from US $167.98 |
||
|
21
|
21
90110-05112-00 Bolt, Hexagon Socket Head |
90110-05112-00 |
from US $1.70 |
||
|
22
|
22
91317-05010-00 Bolt |
91317-05010-00 |
from US $1.21 |
||
|
23
|
23
5PW-13907-01-00
Fuel Pump Comp
|
5PW-13907-01-00 |
— | ||
| replacements | |||||
|
23
|
23
5PW-13907-02-00
Fuel Pump Comp
|
5PW-13907-02-00 |
— | ||
|
23
|
23
5PW-13907-03-00 Fuel Pump Comp. |
5PW-13907-03-00 |
from US $448.76 |
||
|
23
|
23
5PW-13907-05-00 Fuel Pump Comp. |
5PW-13907-05-00 |
US $792.95 |
||
|
24
|
24
5VY-24491-00-00 Bracket, Fuel Pump |
5VY-24491-00-00 |
US $85.37 |
||
|
25
|
25
5PW-24192-00-00 Bracket, Fuel Tank 2 |
5PW-24192-00-00 |
US $59 |
||
|
26
|
26
98907-05008-00 Screw, Binding |
98907-05008-00 |
from US $1.98 |
||
|
27
|
27
90461-10010-00 Clamp |
90461-10010-00 |
from US $6.66 |
||
|
28
|
28
90154-05012-00 Screw, Bind |
90154-05012-00 |
from US $1.35 |
||
| replacement | |||||
|
28
|
28
98907-05008-00 Screw, Binding |
98907-05008-00 |
from US $1.98 |
||
|
29
|
29
5JW-24486-00-00
O-Ring
|
5JW-24486-00-00 |
— | ||
| replacement | |||||
|
29
|
29
19B-24486-01-00 O-Ring |
19B-24486-01-00 |
from US $20.97 |
||
|
30
|
30
90110-05014-00 Bolt, Hexagon Socket Head |
90110-05014-00 |
from US $1.70 |
||
|
31
|
31
5VY-24315-00-00 Pipe 5 |
5VY-24315-00-00 |
from US $4.84 |
||
|
32
|
32
5VY-24316-00-00 Pipe 6 |
5VY-24316-00-00 |
from US $6.02 |
||
|
33
|
33
5VY-24317-00-00 Pipe 7 |
5VY-24317-00-00 |
US $21.20 |
||
|
34
|
34
90413-07007-00 Way 3 |
90413-07007-00 |
from US $3.26 |
||
|
35
|
35
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
35
|
35
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
36
|
36
5VY-2171A-01-P5
Cover, Top
for Color REDDISH YELLOW COCKTAIL 1 RYC1 / 0251 |
5VY-2171A-01-P5 |
— | ||
|
37
|
37
5VY-2414J-00-00 Damper, Plate 2 |
5VY-2414J-00-00 |
US $2.13 |
||
|
38
|
38
4XV-2834E-00-00 Damper 3 |
4XV-2834E-00-00 |
from US $1.98 |
||
|
39
|
39
5VY-24145-00-00 Damper, Side Cover |
5VY-24145-00-00 |
US $9.36 |
||
|
40
|
40
91314-06025-00 Bolt, Hexagon Socket Head |
91314-06025-00 |
from US $1.56 |
||
|
41
|
41
90480-12314-00 Grommet |
90480-12314-00 |
from US $1.28 |
||
| replacement | |||||
|
41
|
41
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.28 |
||
|
42
|
42
903-87065-J6-00
Collar
|
903-87065-J6-00 |
— | ||
| replacement | |||||
|
42
|
42
903-87061-59-00 Collar |
903-87061-59-00 |
from US $1.56 |
||
|
43
|
43
90201-06M30-00 Washer, Plate |
90201-06M30-00 |
from US $1.70 |
||
|
44
|
44
90183-05074-00 Nut, Spring(3Yx) |
90183-05074-00 |
from US $1.98 |
||
|
45
|
45
5VY-24117-00-00
Stay, Fuel Tank 3
|
5VY-24117-00-00 |
— | ||
|
46
|
46
5VY-24118-00-00 Stay, Fuel Tank 4 |
5VY-24118-00-00 |
from US $3.68 |
||
|
47
|
47
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
48
|
48
90105-05002-00 Bolt, Flange |
90105-05002-00 |
from US $1.70 |
||
|
49
|
49
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
50
|
50
98907-05014-00 Screw, Bind |
98907-05014-00 |
from US $1.56 |
||
| replacement | |||||
|
50
|
50
901-5405X-03-00
Screw, Binding (11H)
|
901-5405X-03-00 |
— | ||
|
51
|
51
5VY-2414N-00-00 Damper, Plate 4 |
5VY-2414N-00-00 |
from US $55.39 |
||
|
52
|
52
5VY-2414P-00-00 Damper, Plate 5 |
5VY-2414P-00-00 |
from US $38.41 |
||
|
53
|
53
5VY-24129-01-00 Cover, Side 1 |
5VY-24129-01-00 |
from US $32.30 |
||
|
54
|
54
5PW-2414J-00-00 Damper, Plate 2 |
5PW-2414J-00-00 |
from US $2.27 |
||
|
55
|
55
5PW-2414H-00-00 Damper, Plate 1 |
5PW-2414H-00-00 |
from US $1.70 |
||
|
56
|
56
5PW-2411J-01-00 Damper, Side Cover |
5PW-2411J-01-00 |
from US $2.02 |
||
|
57
|
57
5VY-24139-01-00 Cover, Side 2 |
5VY-24139-01-00 |
from US $32.30 |
||
|
58
|
58
5PW-2414J-00-00 Damper, Plate 2 |
5PW-2414J-00-00 |
from US $2.27 |
||
|
59
|
59
5PW-2414H-00-00 Damper, Plate 1 |
5PW-2414H-00-00 |
from US $1.70 |
||
|
60
|
60
5PW-2411J-01-00 Damper, Side Cover |
5PW-2411J-01-00 |
from US $2.02 |
||
|
61
|
61
90159-05015-00 Screw, With Washer |
90159-05015-00 |
from US $2.27 |
||
|
62
|
62
5PW-2413B-10-00 Emblem |
5PW-2413B-10-00 |
from US $34.43 |
||
|
63
|
63
5VY-2414K-00-00 Damper, Plate 3 |
5VY-2414K-00-00 |
US $9.94 |
||
|
64
|
64
5VY-2414R-00-00 Damper, Plate 6 |
5VY-2414R-00-00 |
from US $7.93 |
||
|
65
|
65
5VY-2414H-00-00
Damper, Plate 1
|
5VY-2414H-00-00 |
— | ||
|
66
|
66
5GK-2118K-00-00 Label, Caution |
5GK-2118K-00-00 |
from US $3.40 |
||
|
67
|
67
5PW-2415E-11-00 Label, Caution |
5PW-2415E-11-00 |
from US $2.55 |
||
| replacement | |||||
|
67
|
67
5PW-2415E-12-00 |
5PW-2415E-12-00 |
US $4.32 |
||
|
68
|
68
5XC-2164B-00-00
Emblem, 3D
3D |
5XC-2164B-00-00 |
— | ||
|
69
|
69
5VY-24313-00-00 Pipe 3 |
5VY-24313-00-00 |
from US $17.48 |
||
|
70
|
70
5RB-24180-00-00 Roll Over Valve Assy |
5RB-24180-00-00 |
from US $36.34 |
||
|
71
|
71
5VY-24314-00-00 Pipe 4 |
5VY-24314-00-00 |
US $7.22 |
||
|
72
|
72
5VY-24170-00-00 Canister Assy |
5VY-24170-00-00 |
from US $250.99 |
||
|
73
|
73
90445-11418-00 Hose (L70) |
90445-11418-00 |
from US $1.84 |
||
| replacement | |||||
|
73
|
73
90445-112E0-00 Hose (L70) |
90445-112E0-00 |
from US $1.36 |
||
|
74
|
74
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
74
|
74
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
75
|
75
5VY-1443J-00-00 Pipe |
5VY-1443J-00-00 |
US $15.64 |
||
|
76
|
76
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
76
|
76
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
77
|
77
5VY-2419F-00-00 Bracket, Canistor |
5VY-2419F-00-00 |
US $27.50 |
||
|
78
|
78
92017-06016-00 Bolt, Button Head |
92017-06016-00 |
from US $1.56 |
||
|
79
|
79
5VY-24216-00-00 Stay |
5VY-24216-00-00 |
US $40.73 |
||
|
80
|
80
92017-06010-00 Bolt, Button Head |
92017-06010-00 |
from US $1.56 |
||
|
81
|
81
90461-15139-00 Clamp(4Tr) |
90461-15139-00 |
from US $1.57 |
||
| replacement | |||||
|
81
|
81
904-64150-14-00 Clamp |
904-64150-14-00 |
from US $1.70 |
||
|
82
|
82
90269-05001-00 Rivet |
90269-05001-00 |
from US $2.70 |
||
|
83
|
83
92017-06016-00 Bolt, Button Head |
92017-06016-00 |
from US $1.56 |
||
|
84
|
84
90480-13018-00 Grommet |
90480-13018-00 |
from US $1.56 |
||
|
85
|
85
90387-062L2-00 Collar |
90387-062L2-00 |
from US $3.54 |
||
|
86
|
86
5VY-24312-00-00 Pipe 2 |
5VY-24312-00-00 |
from US $19.68 |
||
