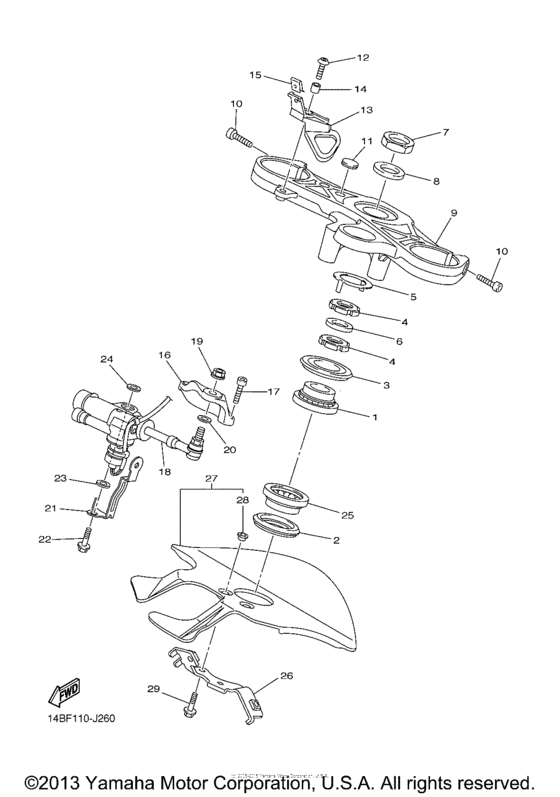

Steering Diagram Yamaha YZF-R1 R1LE Valentino Rossi Edition
- Year
- 2010
- Model code
- 14BL
- Sales region
- USA
- Базовая модель
- YZFR1LEZ
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
933-99999-32-00 Bearing |
933-99999-32-00 |
from US $36.20 |
||
|
2
|
2
3FV-23462-00-00 Seal, Steering |
3FV-23462-00-00 |
from US $17.14 |
||
|
3
|
3
4XV-23415-01-00 Cover, Ball Race 1 |
4XV-23415-01-00 |
from US $16.58 |
||
|
4
|
4
90179-30691-00 Nut |
90179-30691-00 |
from US $24.79 |
||
|
5
|
5
4XV-23418-00-00 Washer, Special |
4XV-23418-00-00 |
from US $10.91 |
||
|
6
|
6
90202-30235-00 Washer, Plate |
90202-30235-00 |
from US $1.56 |
||
|
7
|
7
90170-28419-00 Nut |
90170-28419-00 |
from US $21.11 |
||
|
8
|
8
90201-281U8-00 Washer, Plate |
90201-281U8-00 |
from US $8.50 |
||
|
9
|
9
14B-23435-10-00 Crown, Handle |
14B-23435-10-00 |
from US $132.24 |
||
|
10
|
10
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.07 |
||
|
11
|
11
14B-2836B-00-00 Tuning Fork Mark |
14B-2836B-00-00 |
from US $10.06 |
||
|
12
|
12
90111-06041-00 Bolt, Hex. Socket Button |
90111-06041-00 |
from US $1.70 |
||
|
13
|
13
5VY-26292-11-00 Stay |
5VY-26292-11-00 |
from US $4.39 |
||
| replacement | |||||
|
13
|
13
5VY-26292-12-00 Stay |
5VY-26292-12-00 |
US $12.24 |
||
|
14
|
14
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
15
|
15
90183-050A0-00 Nut, Spring |
90183-050A0-00 |
from US $2.69 |
||
|
16
|
16
14B-23495-00-00 Stay, Damper |
14B-23495-00-00 |
from US $38.13 |
||
|
17
|
17
901-10061-75-00
Bolt, Hexagon Socket Head
|
901-10061-75-00 |
— | ||
| replacements | |||||
|
17
|
17
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.07 |
||
|
17
|
17
91312-06020-00 Bolt, Hexagon Socket Head |
91312-06020-00 |
from US $1.21 |
||
|
18
|
18
14B-23490-00-00 Handlebar Shimmy Damper Assy |
14B-23490-00-00 |
from US $805.07 |
||
|
19
|
19
95602-08200-00 Nut, U Flange |
95602-08200-00 |
from US $1.84 |
||
| replacement | |||||
|
19
|
19
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
20
|
20
90201-08M09-00 Washer, Plate |
90201-08M09-00 |
from US $1.84 |
||
|
21
|
21
45B-2331E-00-00 Guide, Cable |
45B-2331E-00-00 |
from US $13.32 |
||
|
22
|
22
90105-08108-00 Bolt, Flange |
90105-08108-00 |
from US $1.07 |
||
| replacement | |||||
|
22
|
22
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.07 |
||
|
23
|
23
90201-08676-00 Washer, Plate |
90201-08676-00 |
from US $1.28 |
||
| replacement | |||||
|
23
|
23
90201-08649-00 Washer, Plate |
90201-08649-00 |
from US $1.28 |
||
|
24
|
24
5VY-26398-00-00 Washer |
5VY-26398-00-00 |
from US $7.93 |
||
|
25
|
25
93399-99957-00 Bearing |
93399-99957-00 |
from US $51.26 |
||
|
26
|
26
14B-23377-00-00 Bracket, Horn |
14B-23377-00-00 |
from US $18.42 |
||
|
27
|
27
14B-23808-00-00 Steering, Cover Assy |
14B-23808-00-00 |
from US $13.32 |
||
|
28
|
28
90560-06244-00 Spacer |
90560-06244-00 |
from US $1.84 |
||
|
29
|
29
90105-06557-00 Bolt, Flange |
90105-06557-00 |
from US $1.13 |
||
| replacement | |||||
|
29
|
29
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
