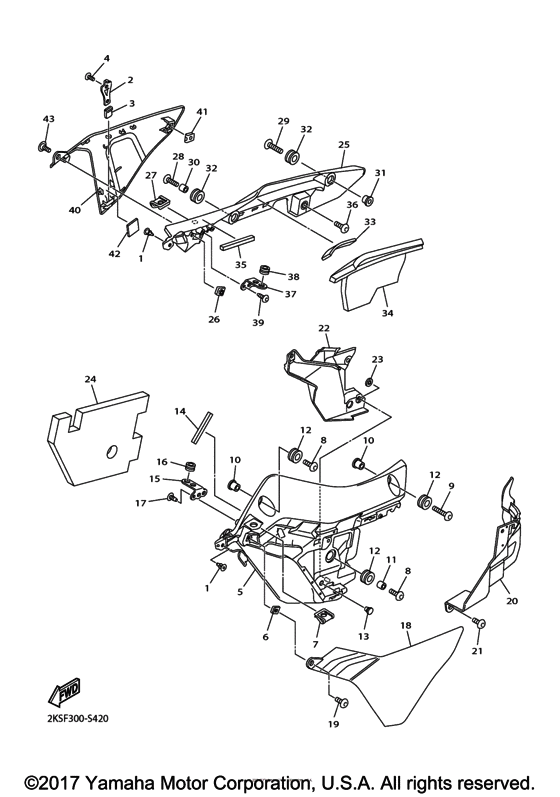

Cowling 3 Diagram Yamaha YZF-R1 R1M
- Year
- 2017
- Colour
- Bluish White Metallic 2
- Model code
- 2KSH
- Sales region
- United States (California)
- Базовая модель
- YZFR1MHC
- Engine Capacity
- 1000
- Model
- YZF-R1M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
2
|
2
2CR-2833J-00-00 Bracket 12 |
2CR-2833J-00-00 |
from US $2.98 |
||
|
3
|
3
5PW-2411J-01-00 Damper, Side Cover |
5PW-2411J-01-00 |
from US $2.41 |
||
|
4
|
4
92012-06012-00 Bolt, Button Head |
92012-06012-00 |
from US $1.56 |
||
|
5
|
5
2CR-2836A-01-00 Bracket 1 |
2CR-2836A-01-00 |
from US $29.75 |
||
|
6
|
6
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
6
|
6
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
7
|
7
4XV-2177L-01-00 Plate, Spring |
4XV-2177L-01-00 |
from US $7.23 |
||
|
8
|
8
90149-06302-00 Screw |
90149-06302-00 |
from US $3.83 |
||
|
9
|
9
90111-06030-00 Bolt, Hex. Socket Button |
90111-06030-00 |
from US $2.69 |
||
|
10
|
10
903-87063-08-00 Collar |
903-87063-08-00 |
from US $4.25 |
||
|
11
|
11
903-87062-60-00 Collar |
903-87062-60-00 |
from US $1.56 |
||
|
12
|
12
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
13
|
13
903-38060-18-00
Plug
|
903-38060-18-00 |
— | ||
| replacement | |||||
|
13
|
13
903-38071-80-00 Plug |
903-38071-80-00 |
from US $1.98 |
||
|
14
|
14
2C0-28247-00-00 Damper 4 |
2C0-28247-00-00 |
from US $1.42 |
||
|
15
|
15
2CR-2833G-00-00 Bracket 10 |
2CR-2833G-00-00 |
from US $3.26 |
||
|
16
|
16
90480-10517-00 Grommet |
90480-10517-00 |
from US $1.98 |
||
|
17
|
17
977-02500-12-00
Screw, Truss Head Tapping
|
977-02500-12-00 |
— | ||
| replacement | |||||
|
17
|
17
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
18
|
18
2CR-2842M-01-P2 Cover 1SMX |
2CR-2842M-01-P2 |
from US $163.03 |
||
|
19
|
19
901-11050-45-00 Bolt, Hex. Socket Button |
901-11050-45-00 |
from US $1.42 |
||
|
20
|
20
2CR-2843J-01-00 Cover 3 |
2CR-2843J-01-00 |
from US $11.19 |
||
|
21
|
21
901-11050-45-00 Bolt, Hex. Socket Button |
901-11050-45-00 |
from US $1.42 |
||
|
22
|
22
2CR-2836F-00-00 Bracket 3 |
2CR-2836F-00-00 |
from US $11.48 |
||
|
23
|
23
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.34 |
||
|
24
|
24
2CR-28415-00-00 Damper 1 |
2CR-28415-00-00 |
from US $51.26 |
||
| replacement | |||||
|
24
|
24
2CR-28415-01-00 Damper 1 |
2CR-28415-01-00 |
US $67.88 |
||
|
25
|
25
2CR-2836E-00-00 Bracket 2 |
2CR-2836E-00-00 |
from US $24.09 |
||
|
26
|
26
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
26
|
26
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
27
|
27
4XV-2177L-01-00 Plate, Spring |
4XV-2177L-01-00 |
from US $7.23 |
||
|
28
|
28
90149-06302-00 Screw |
90149-06302-00 |
from US $3.83 |
||
|
29
|
29
90111-06030-00 Bolt, Hex. Socket Button |
90111-06030-00 |
from US $2.69 |
||
|
30
|
30
903-87062-60-00 Collar |
903-87062-60-00 |
from US $1.56 |
||
|
31
|
31
903-87063-08-00 Collar |
903-87063-08-00 |
from US $4.25 |
||
|
32
|
32
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
33
|
33
90520-04012-00 Damper, Plate |
90520-04012-00 |
from US $1.84 |
||
|
34
|
34
2CR-28455-00-00 Damper, 4 |
2CR-28455-00-00 |
from US $4.11 |
||
|
35
|
35
2C0-28247-00-00 Damper 4 |
2C0-28247-00-00 |
from US $1.42 |
||
|
36
|
36
901-11050-45-00 Bolt, Hex. Socket Button |
901-11050-45-00 |
from US $1.42 |
||
|
37
|
37
2CR-2833H-00-00 Bracket 11 |
2CR-2833H-00-00 |
from US $3.26 |
||
|
38
|
38
90480-10517-00 Grommet |
90480-10517-00 |
from US $1.98 |
||
|
39
|
39
977-02500-12-00
Screw, Truss Head Tapping
|
977-02500-12-00 |
— | ||
| replacement | |||||
|
39
|
39
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
40
|
40
2CR-2842N-00-P2 Cover 2SMX |
2CR-2842N-00-P2 |
from US $163.03 |
||
|
41
|
41
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
41
|
41
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
42
|
42
3TB-28217-00-00 Damper 1 |
3TB-28217-00-00 |
from US $2.13 |
||
|
43
|
43
901-11050-45-00 Bolt, Hex. Socket Button |
901-11050-45-00 |
from US $1.42 |
||
