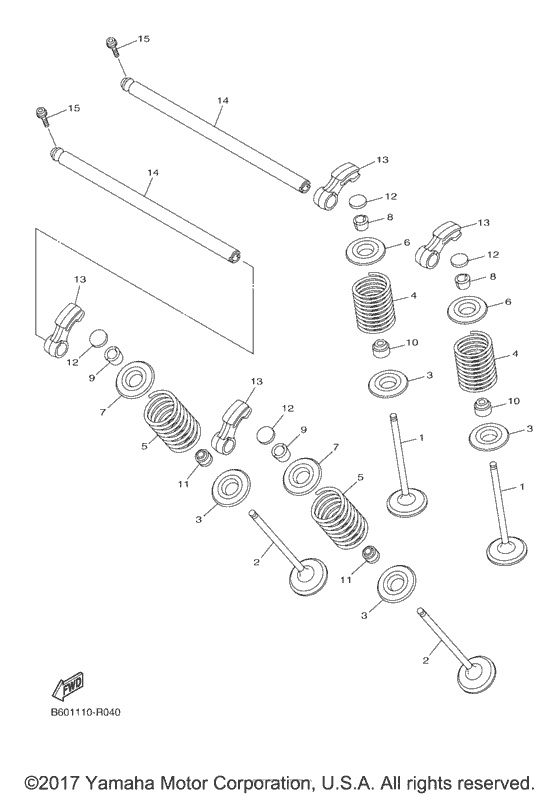

Valve Diagram Yamaha YZF-R1 R1S Limited Edition
- Year
- 2017
- Colour
- Bluish Silver 4
- Model code
- B604
- Sales region
- USA
- Базовая модель
- YZFR1SHGY
- Engine Capacity
- 1000
- Model
- YZF-R1S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2CR-12111-01-00 Valve, Intake |
2CR-12111-01-00 |
from US $126.42 |
||
|
2
|
2
2CR-12121-00-00 Valve, Exhaust |
2CR-12121-00-00 |
from US $42.69 |
||
|
3
|
3
B60-12116-00-00 Seat, Valve Spring |
B60-12116-00-00 |
from US $4.68 |
||
|
4
|
4
B60-12113-00-00 Spring, Valve Inner |
B60-12113-00-00 |
US $18.13 |
||
|
5
|
5
B60-12114-00-00 Spring, Valve Outer |
B60-12114-00-00 |
US $16.45 |
||
|
6
|
6
2CR-12117-00-00 Retainer, Valve Spring |
2CR-12117-00-00 |
from US $5.10 |
||
|
7
|
7
2CR-12127-00-00 Retainer, Valve Spring |
2CR-12127-00-00 |
from US $5.10 |
||
|
8
|
8
1AA-12118-00-00 Valve Spring Retainer Lock |
1AA-12118-00-00 |
from US $3.12 |
||
|
9
|
9
1WG-12118-00-00 Valve Spring Retainer Lock |
1WG-12118-00-00 |
from US $1.84 |
||
|
10
|
10
3P6-12129-00-00 Seal, Valve Stem |
3P6-12129-00-00 |
from US $3.64 |
||
|
11
|
11
4TE-12119-00-00 Seal, Valve Stem |
4TE-12119-00-00 |
from US $2.98 |
||
|
12
|
12
2CR-12169-10-00 Pad, Adjusting (1.900)UR |
2CR-12169-10-00 |
from US $7.65 |
||
|
12
|
12
2CR-12169-70-00 Pad, Adjusting (2.050)UR |
2CR-12169-70-00 |
from US $7.65 |
||
|
12
|
12
2CR-12169-90-00 Pad, Adjusting (2.100)UR |
2CR-12169-90-00 |
from US $7.65 |
||
|
12
|
12
2CR-12169-E0-00 Pad, Adjusting (2.150)UR |
2CR-12169-E0-00 |
from US $7.65 |
||
|
12
|
12
2CR-12169-G0-00 Pad, Adjusting (2.200)UR |
2CR-12169-G0-00 |
from US $7.65 |
||
|
12
|
12
2CR-12169-J0-00 Pad, Adjusting (2.250)UR |
2CR-12169-J0-00 |
from US $7.65 |
||
|
12
|
12
2CR-12169-L0-00 Pad, Adjusting (2.300)UR |
2CR-12169-L0-00 |
from US $7.65 |
||
|
12
|
12
2CR-12169-N0-00 Pad, Adjusting (2.350)UR |
2CR-12169-N0-00 |
from US $5.96 |
||
|
12
|
12
2CR-12169-T0-00 Pad, Adjusting (2.400)UR |
2CR-12169-T0-00 |
from US $7.65 |
||
|
12
|
12
2CR-12169-30-00 Pad, Adjusting (1.950)UR |
2CR-12169-30-00 |
from US $7.65 |
||
|
12
|
12
2CR-12169-50-00 Pad, Adjusting (2.000)UR |
2CR-12169-50-00 |
from US $7.65 |
||
|
12
|
12
2CR-12168-K0-00 Pad, Adjusting (1.600)UR |
2CR-12168-K0-00 |
from US $7.65 |
||
|
12
|
12
2CR-12168-M0-00 Pad, Adjusting (1.650)UR |
2CR-12168-M0-00 |
from US $7.65 |
||
|
12
|
12
2CR-12168-Y0-00 Pad, Adjusting (1.850)UR |
2CR-12168-Y0-00 |
from US $7.65 |
||
|
12
|
12
2CR-12168-W0-00 Pad, Adjusting (1.800)UR |
2CR-12168-W0-00 |
from US $7.65 |
||
|
12
|
12
2CR-12168-U0-00 Pad, Adjusting (1.750)UR |
2CR-12168-U0-00 |
from US $7.65 |
||
|
12
|
12
2CR-12168-R0-00 Pad, Adjusting (1.700)UR |
2CR-12168-R0-00 |
from US $7.65 |
||
|
13
|
13
2CR-12151-00-00 Arm, Valve Rocker |
2CR-12151-00-00 |
from US $86.35 |
||
|
14
|
14
B60-12146-00-00 Shaft, Rocker |
B60-12146-00-00 |
from US $21.82 |
||
|
15
|
15
901-09050-15-00 Bolt |
901-09050-15-00 |
US $5.24 |
||
| replacement | |||||
|
15
|
15
90109-05016-00 Bolt |
90109-05016-00 |
from US $4.26 |
||
