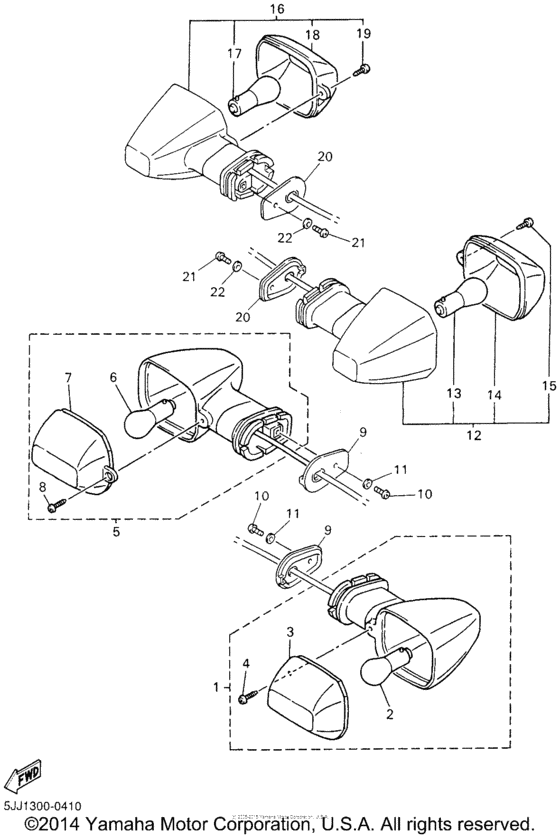

Flasher light Diagram Yamaha YZF-R1 R1 Champions Limited Edition
- Year
- 2001
- Colour
- Deep Purplish Blue Metallic C
- Model code
- 5JJF
- Sales region
- USA
- Базовая модель
- YZFR1SN
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5JJ-83310-10-00 Front Flasher Light Assy 1 |
5JJ-83310-10-00 |
US $119.05 |
||
|
2
|
2
256-84714-61-00
Bulb (12V-27/8W)
12V-27/8W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
2
|
2
137-84714-61-XX
Bulb (12V-21/5W)
12V-27/8W |
137-84714-61-XX |
— | ||
|
2
|
2
137-84714-61-00 Bulb (12V-21/5W)12V-27/8W |
137-84714-61-00 |
from US $4.53 |
||
|
3
|
3
4JH-83332-10-00 Lens, Flasher |
4JH-83332-10-00 |
from US $19.69 |
||
|
4
|
4
97702-40610-00 Screw, Tapping |
97702-40610-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
97707-40610-00 Screw, Tapping |
97707-40610-00 |
from US $1.56 |
||
|
5
|
5
5JJ-83320-10-00
Front Flasher Light Assy 2
|
5JJ-83320-10-00 |
— | ||
|
6
|
6
256-84714-61-00
Bulb (12V-27/8W)
12V-27/8W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
6
|
6
137-84714-61-XX
Bulb (12V-21/5W)
12V-27/8W |
137-84714-61-XX |
— | ||
|
6
|
6
137-84714-61-00 Bulb (12V-21/5W)12V-27/8W |
137-84714-61-00 |
from US $4.53 |
||
|
7
|
7
4JH-83342-10-00 Lens, Flasher 2 |
4JH-83342-10-00 |
from US $19.69 |
||
|
8
|
8
97702-40610-00 Screw, Tapping |
97702-40610-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
97707-40610-00 Screw, Tapping |
97707-40610-00 |
from US $1.56 |
||
|
9
|
9
5JJ-83318-00-00 Stay, Flasher 1 |
5JJ-83318-00-00 |
from US $3.97 |
||
|
10
|
10
98507-04008-00 Screw, Pan Head |
98507-04008-00 |
from US $1.07 |
||
|
11
|
11
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
12
|
12
5JJ-83330-10-00
Rear Flasher Light Assy 1
|
5JJ-83330-10-00 |
— | ||
|
13
|
13
256-83311-70-XX
Bulb (12V-27W)
12V-27W |
256-83311-70-XX |
— | ||
|
14
|
14
4JH-83342-10-00 Lens, Flasher 2 |
4JH-83342-10-00 |
from US $19.69 |
||
|
15
|
15
97702-40610-00 Screw, Tapping |
97702-40610-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
97707-40610-00 Screw, Tapping |
97707-40610-00 |
from US $1.56 |
||
|
16
|
16
5JJ-83340-10-00
Flasher Light Assy 2
|
5JJ-83340-10-00 |
— | ||
|
17
|
17
256-83311-70-XX
Bulb (12V-27W)
12V-27W |
256-83311-70-XX |
— | ||
|
18
|
18
4JH-83332-10-00 Lens, Flasher |
4JH-83332-10-00 |
from US $19.69 |
||
|
19
|
19
97702-40610-00 Screw, Tapping |
97702-40610-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
97707-40610-00 Screw, Tapping |
97707-40610-00 |
from US $1.56 |
||
|
20
|
20
5JJ-83318-00-00 Stay, Flasher 1 |
5JJ-83318-00-00 |
from US $3.97 |
||
|
21
|
21
98507-04008-00 Screw, Pan Head |
98507-04008-00 |
from US $1.07 |
||
|
22
|
22
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
