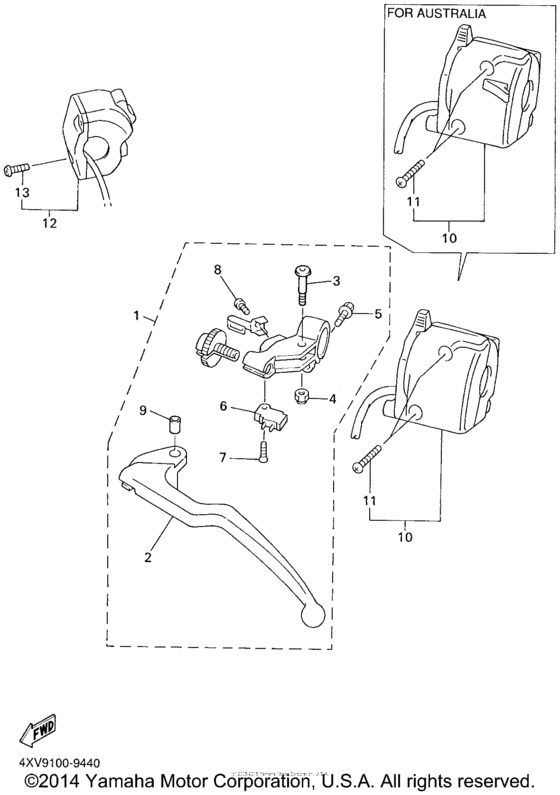

Handle switch & lever Diagram Yamaha YZF-R1 R1 Champions Limited Edition
- Year
- 2001
- Colour
- Deep Purplish Blue Metallic C
- Model code
- 5JJF
- Sales region
- USA
- Базовая модель
- YZFR1SN
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4XV-82910-12-00 Lever Holder Assy (Left) |
4XV-82910-12-00 |
from US $145.04 |
||
| replacement | |||||
|
1
|
1
4XV-82910-15-00 Lever Holder Assembly (Left) |
4XV-82910-15-00 |
from US $160.27 |
||
|
2
|
2
4XV-83912-11-00 Lever 1 |
4XV-83912-11-00 |
from US $25.22 |
||
|
3
|
3
4XV-83945-00-00 Bolt, Lever |
4XV-83945-00-00 |
from US $4.97 |
||
| replacement | |||||
|
3
|
3
2C0-83945-00-00 Bolt, Lever |
2C0-83945-00-00 |
from US $5.38 |
||
|
4
|
4
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
4
|
4
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
5
|
5
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.42 |
||
|
6
|
6
4XV-82917-00-00 Switch |
4XV-82917-00-00 |
from US $28.76 |
||
| replacement | |||||
|
6
|
6
4XV-82917-01-00 Switch |
4XV-82917-01-00 |
from US $20.18 |
||
|
7
|
7
98707-03016-00 Screw, Flat Head |
98707-03016-00 |
from US $1.98 |
||
|
8
|
8
98507-04010-00 Screw, Pan Head |
98507-04010-00 |
from US $1.21 |
||
|
9
|
9
5JJ-83913-00-00 Collar, Lever 1 |
5JJ-83913-00-00 |
from US $5.81 |
||
|
10
|
10
5JJ-83973-00-00 Switch, Handle 3 |
5JJ-83973-00-00 |
US $197.28 |
||
|
11
|
11
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.42 |
||
|
12
|
12
4UN-83975-01-00 Switch, Handle 2 |
4UN-83975-01-00 |
from US $145.07 |
||
|
13
|
13
98507-05022-00 Screw, Pan Head |
98507-05022-00 |
from US $1.98 |
||
| replacement | |||||
|
13
|
13
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
