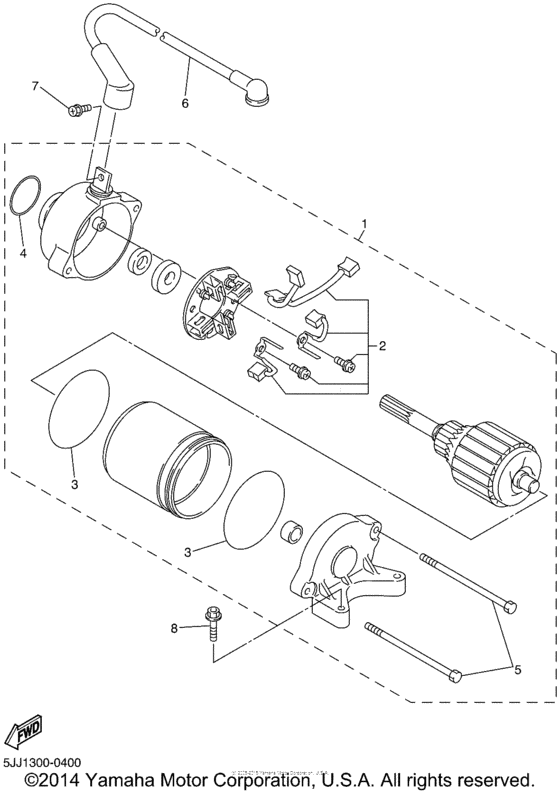

Starting motor Diagram Yamaha YZF-R1 R1 Champions Limited Edition
- Year
- 2001
- Colour
- Deep Purplish Blue Metallic C
- Model code
- 5JJF
- Sales region
- USA
- Базовая модель
- YZFR1SN
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5JJ-81890-00-00 Motor Assy |
5JJ-81890-00-00 |
from US $670.45 |
||
| replacements | |||||
|
1
|
1
5PW-81890-01-00 Starter motor Assy |
5PW-81890-01-00 |
from US $670.45 |
||
|
1
|
1
5PW-81890-02-00 |
5PW-81890-02-00 |
US $825.86 |
||
|
2
|
2
5JJ-81801-00-00 Brush Set |
5JJ-81801-00-00 |
from US $87.62 |
||
| replacements | |||||
|
2
|
2
5VY-81801-00-00 Brush Set |
5VY-81801-00-00 |
from US $101.29 |
||
|
2
|
2
5PW-81801-00-00 Brush Set |
5PW-81801-00-00 |
from US $80.86 |
||
|
3
|
3
93210-55669-00 O-Ring |
93210-55669-00 |
from US $2.55 |
||
|
4
|
4
93210-25711-00 O-Ring |
93210-25711-00 |
from US $9.99 |
||
|
5
|
5
5JJ-81846-00-00 Screw |
5JJ-81846-00-00 |
from US $6.55 |
||
| replacement | |||||
|
5
|
5
5PW-81846-00-00 Screw |
5PW-81846-00-00 |
from US $8.78 |
||
|
6
|
6
5JJ-8183G-00-00
Cord Comp
|
5JJ-8183G-00-00 |
— | ||
|
7
|
7
5JJ-81828-00-00 Bolt 2 |
5JJ-81828-00-00 |
US $1.77 |
||
| replacement | |||||
|
7
|
7
5JJ-81828-01-00 Bolt 2 |
5JJ-81828-01-00 |
US $1.77 |
||
|
8
|
8
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $1.98 |
||
