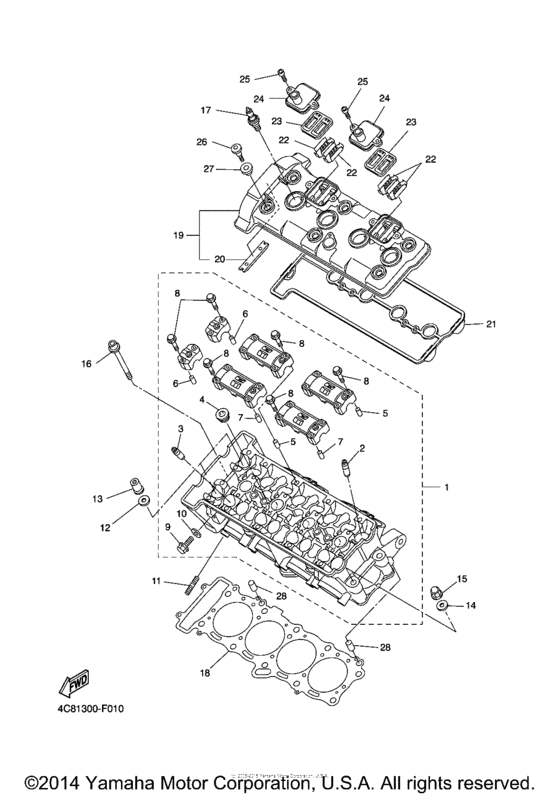

Cylinder head Diagram Yamaha YZF-R1 R1
- Year
- 2007
- Model code
- 4C85
- Sales region
- United States (California)
- Базовая модель
- YZFR1WC
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4C8-11101-00-00 Cylinder Head Assy |
4C8-11101-00-00 |
from US $1,741.82 |
||
|
2
|
2
4C8-11133-10-00 Guide, Valve 1 |
4C8-11133-10-00 |
from US $46.15 |
||
|
3
|
3
4C8-11134-10-00 Guide, Valve 2 |
4C8-11134-10-00 |
from US $51.48 |
||
|
4
|
4
903-40180-02-00 Plug, Straight Screw |
903-40180-02-00 |
from US $3.98 |
||
|
5
|
5
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.34 |
||
|
6
|
6
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.34 |
||
|
7
|
7
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.34 |
||
|
8
|
8
90105-06027-00 Bolt, Flange |
90105-06027-00 |
from US $1.34 |
||
|
9
|
9
95024-06012-00 Bolt, Flange (Small Head) |
95024-06012-00 |
from US $1.56 |
||
|
10
|
10
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.28 |
||
|
11
|
11
95612-08625-00 Bolt, Stud |
95612-08625-00 |
from US $1.66 |
||
|
12
|
12
90201-10050-00 Washer, Plate |
90201-10050-00 |
from US $4.53 |
||
|
13
|
13
90179-10414-00 Nut |
90179-10414-00 |
from US $7.65 |
||
| replacement | |||||
|
13
|
13
901-79100-26-00 Nut |
901-79100-26-00 |
from US $10.26 |
||
|
14
|
14
90201-10050-00 Washer, Plate |
90201-10050-00 |
from US $4.53 |
||
|
15
|
15
90176-10075-00 Nut, Crown |
90176-10075-00 |
from US $4.39 |
||
|
16
|
16
90110-06212-00 Bolt, Hexagon Socket Head |
90110-06212-00 |
from US $5.24 |
||
|
17
|
17
NGK-CR9EK-00-00 Cr9Ek Ngk Splug 1010 |
NGK-CR9EK-00-00 |
US $16.94 |
||
| replacement | |||||
|
17
|
17
CR9-EK000-00-00 CR9EK NGK10 |
CR9-EK000-00-00 |
US $168.30 |
||
|
18
|
18
4C8-11181-00-00 Gasket, Cylinder Head 1 |
4C8-11181-00-00 |
from US $50.82 |
||
|
19
|
19
4C8-11191-00-00 Cover, Cylinder Head 1 (Black) |
4C8-11191-00-00 |
from US $256.98 |
||
|
20
|
20
5BE-12241-00-00
Guide, Stopper 2
|
5BE-12241-00-00 |
— | ||
| replacement | |||||
|
20
|
20
5BE-12241-01-00 GUIDE STOPPER 2 |
5BE-12241-01-00 |
from US $14.22 |
||
|
21
|
21
4C8-11193-00-00 Gasket, Head Cover 1 |
4C8-11193-00-00 |
from US $25.08 |
||
|
22
|
22
5VY-1482K-00-00 Plate |
5VY-1482K-00-00 |
from US $2.55 |
||
|
23
|
23
5SL-14890-10-00 Reed Valve Assy |
5SL-14890-10-00 |
from US $40.07 |
||
|
24
|
24
5VY-14899-00-00 Cap, Case |
5VY-14899-00-00 |
from US $15.30 |
||
| replacement | |||||
|
24
|
24
5VY-14899-01-00 Cap, Case |
5VY-14899-01-00 |
from US $15.30 |
||
|
25
|
25
901-10061-75-00
Bolt, Hexagon Socket Head
|
901-10061-75-00 |
— | ||
| replacements | |||||
|
25
|
25
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.07 |
||
|
25
|
25
91312-06020-00 Bolt, Hexagon Socket Head |
91312-06020-00 |
from US $1.21 |
||
|
26
|
26
90109-066F0-00 Bolt |
90109-066F0-00 |
from US $3.32 |
||
|
27
|
27
5VY-1111G-00-00 Rubber, Mount 1 |
5VY-1111G-00-00 |
from US $3.68 |
||
|
28
|
28
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
