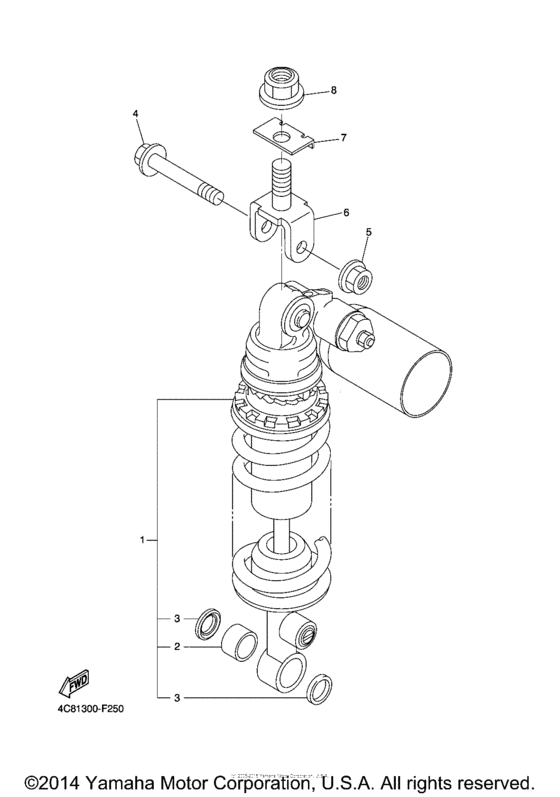

Rear suspension Diagram Yamaha YZF-R1 R1
- Year
- 2007
- Model code
- 4C85
- Sales region
- United States (California)
- Базовая модель
- YZFR1WC
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4C8-22210-10-00 Shock Absorber Assy, |
4C8-22210-10-00 |
US $1,147.54 |
||
| replacement | |||||
|
1
|
1
4C8-22210-11-00 element |
4C8-22210-11-00 |
US $1,147.54 |
||
|
2
|
2
93315-31758-00 Bearing |
93315-31758-00 |
from US $14.48 |
||
|
3
|
3
931-09170-71-00 Oil Seal |
931-09170-71-00 |
from US $3.04 |
||
|
4
|
4
90105-10018-00 Bolt, Flange |
90105-10018-00 |
from US $15.44 |
||
|
5
|
5
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
6
|
6
4C8-22219-00-00 Bracket, Upper |
4C8-22219-00-00 |
from US $66.64 |
||
|
7
|
7
4C8-22127-00-00 Shim |
4C8-22127-00-00 |
from US $3.82 |
||
|
8
|
8
95602-14200-00 Nut, Self-Locking |
95602-14200-00 |
from US $7.51 |
||
| replacement | |||||
|
8
|
8
956-07142-00-00 Nut, Self-Locking |
956-07142-00-00 |
from US $7.48 |
||
