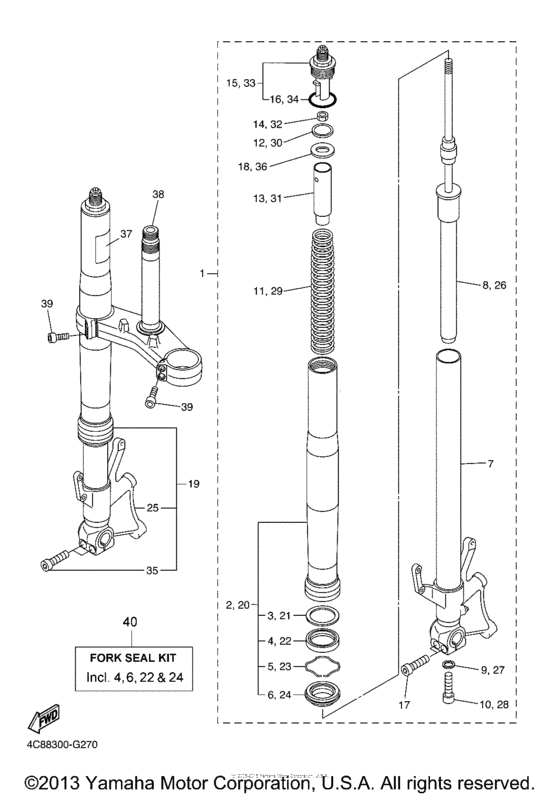

Front fork Diagram Yamaha YZF-R1 R1
- Year
- 2008
- Model code
- 4C8B
- Sales region
- USA
- Базовая модель
- YZFR1XB
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4C8-23102-00-00 Front Fork Assy (L.h) |
4C8-23102-00-00 |
from US $1,261.64 |
||
|
2
|
2
4C8-23136-00-00 Tube, Outer |
4C8-23136-00-00 |
from US $564.43 |
||
|
3
|
3
5PW-23146-00-00 Washer, Oil Seal |
5PW-23146-00-00 |
from US $10.06 |
||
|
4
|
4
4PU-23145-01-00 Oil Seal |
4PU-23145-01-00 |
from US $11.92 |
||
|
5
|
5
4V4-23153-L0-00 Ring, Snap |
4V4-23153-L0-00 |
from US $2 |
||
|
6
|
6
4PU-23144-00-00 Seal, Dust |
4PU-23144-00-00 |
from US $10.58 |
||
|
7
|
7
4C8-23110-00-00 Inner Tube Comp. 1 |
4C8-23110-00-00 |
from US $520.16 |
||
|
8
|
8
4C8-23170-00-00 Cylinder Comp., Front Fork |
4C8-23170-00-00 |
from US $584.27 |
||
|
9
|
9
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.54 |
||
|
10
|
10
5UX-23181-00-00 Bolt, Hexagon Socket Head |
5UX-23181-00-00 |
from US $7.51 |
||
|
11
|
11
4C8-23141-00-00 Spring, Front Fork |
4C8-23141-00-00 |
from US $108.83 |
||
|
12
|
12
5VY-12277-00-00 Washer |
5VY-12277-00-00 |
from US $7.65 |
||
|
13
|
13
5VY-23118-00-00 Spacer |
5VY-23118-00-00 |
from US $35.28 |
||
|
14
|
14
3SP-23357-L0-00 Nut |
3SP-23357-L0-00 |
from US $3.32 |
||
|
15
|
15
4C8-23111-00-00 Bolt, Cap |
4C8-23111-00-00 |
US $405.27 |
||
|
16
|
16
3XJ-23147-L0-00 O-Ring |
3XJ-23147-L0-00 |
from US $5.38 |
||
|
17
|
17
91314-08040-00 Bolt, Hexagon Socket Head |
91314-08040-00 |
from US $3.26 |
||
|
18
|
18
4C8-23149-00-00 Washer, Spring Upper |
4C8-23149-00-00 |
from US $3.24 |
||
|
19
|
19
4C8-23103-00-00 Front Fork Assy (R.h) |
4C8-23103-00-00 |
from US $1,312.09 |
||
|
20
|
20
4C8-23136-00-00 Tube, Outer |
4C8-23136-00-00 |
from US $564.43 |
||
|
21
|
21
5PW-23146-00-00 Washer, Oil Seal |
5PW-23146-00-00 |
from US $10.06 |
||
|
22
|
22
4PU-23145-01-00 Oil Seal |
4PU-23145-01-00 |
from US $11.92 |
||
|
23
|
23
4V4-23153-L0-00 Ring, Snap |
4V4-23153-L0-00 |
from US $2 |
||
|
24
|
24
4PU-23144-00-00 Seal, Dust |
4PU-23144-00-00 |
from US $10.58 |
||
|
25
|
25
4C8-23120-00-00 Inner Tube Comp. 2 |
4C8-23120-00-00 |
US $651.85 |
||
|
26
|
26
4C8-23170-00-00 Cylinder Comp., Front Fork |
4C8-23170-00-00 |
from US $584.27 |
||
|
27
|
27
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.54 |
||
|
28
|
28
5UX-23181-00-00 Bolt, Hexagon Socket Head |
5UX-23181-00-00 |
from US $7.51 |
||
|
29
|
29
4C8-23141-00-00 Spring, Front Fork |
4C8-23141-00-00 |
from US $108.83 |
||
|
30
|
30
5VY-12277-00-00 Washer |
5VY-12277-00-00 |
from US $7.65 |
||
|
31
|
31
5VY-23118-00-00 Spacer |
5VY-23118-00-00 |
from US $35.28 |
||
|
32
|
32
3SP-23357-L0-00 Nut |
3SP-23357-L0-00 |
from US $3.32 |
||
|
33
|
33
4C8-23111-00-00 Bolt, Cap |
4C8-23111-00-00 |
US $405.27 |
||
|
34
|
34
3XJ-23147-L0-00 O-Ring |
3XJ-23147-L0-00 |
from US $5.38 |
||
|
35
|
35
91314-08040-00 Bolt, Hexagon Socket Head |
91314-08040-00 |
from US $3.26 |
||
|
36
|
36
4C8-23149-00-00 Washer, Spring Upper |
4C8-23149-00-00 |
from US $3.24 |
||
|
37
|
37
5PW-23472-00-00 Protector |
5PW-23472-00-00 |
from US $7.93 |
||
|
38
|
38
4C8-23340-00-00 Under Bracket Comp |
4C8-23340-00-00 |
from US $562.30 |
||
|
39
|
39
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.07 |
||
|
40
|
40
4PU-W003B-00-00 Fork Seal Kit |
4PU-W003B-00-00 |
from US $50.11 |
