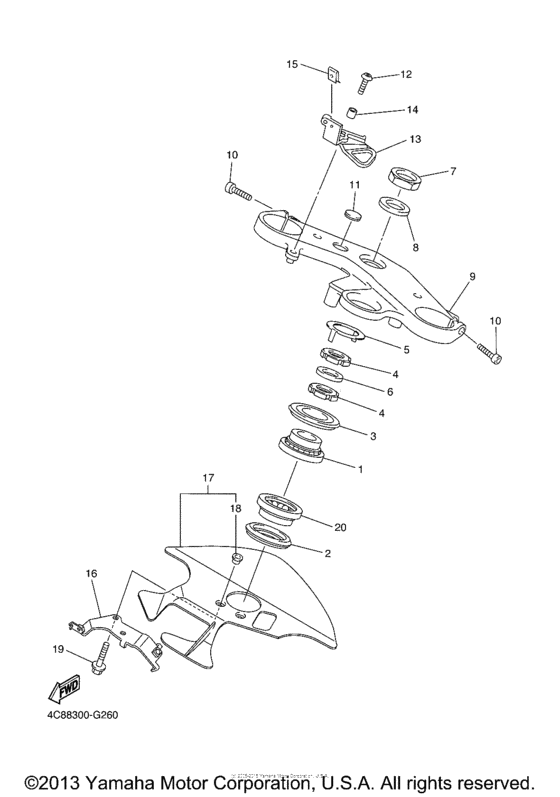

Steering Diagram Yamaha YZF-R1 R1
- Year
- 2008
- Model code
- 4C8B
- Sales region
- USA
- Базовая модель
- YZFR1XR
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
933-99999-32-00 Bearing |
933-99999-32-00 |
from US $36.20 |
||
|
2
|
2
3FV-23462-00-00 Seal, Steering |
3FV-23462-00-00 |
from US $17.14 |
||
|
3
|
3
4XV-23415-01-00 Cover, Ball Race 1 |
4XV-23415-01-00 |
from US $16.58 |
||
|
4
|
4
90179-30691-00 Nut |
90179-30691-00 |
from US $24.79 |
||
|
5
|
5
4XV-23418-00-00 Washer, Special |
4XV-23418-00-00 |
from US $10.91 |
||
|
6
|
6
90202-30235-00 Washer, Plate |
90202-30235-00 |
from US $1.56 |
||
|
7
|
7
90170-28419-00 Nut |
90170-28419-00 |
from US $21.11 |
||
|
8
|
8
90201-281U8-00 Washer, Plate |
90201-281U8-00 |
from US $8.50 |
||
|
9
|
9
4C8-23435-10-00
Crown, Handle
|
4C8-23435-10-00 |
— | ||
|
10
|
10
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.07 |
||
|
11
|
11
4XV-2341B-00-00 Emblem |
4XV-2341B-00-00 |
from US $16.29 |
||
|
12
|
12
90111-06041-00 Bolt, Hex. Socket Button |
90111-06041-00 |
from US $1.70 |
||
|
13
|
13
5VY-26292-11-00 Stay |
5VY-26292-11-00 |
from US $4.39 |
||
| replacement | |||||
|
13
|
13
5VY-26292-12-00 Stay |
5VY-26292-12-00 |
US $12.24 |
||
|
14
|
14
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
15
|
15
90183-050A0-00 Nut, Spring |
90183-050A0-00 |
from US $2.69 |
||
|
16
|
16
4C8-23377-00-00 Bracket, Horn |
4C8-23377-00-00 |
US $20.68 |
||
|
17
|
17
4C8-23808-00-00 Steering, Cover. Assy |
4C8-23808-00-00 |
from US $12.57 |
||
|
18
|
18
90560-06244-00 Spacer |
90560-06244-00 |
from US $1.84 |
||
|
19
|
19
90109-065G4-00 Bolt, Flange |
90109-065G4-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
901-05061-09-00 Bolt, Flange |
901-05061-09-00 |
from US $1.42 |
||
|
20
|
20
93399-99957-00 Bearing |
93399-99957-00 |
from US $51.26 |
||
