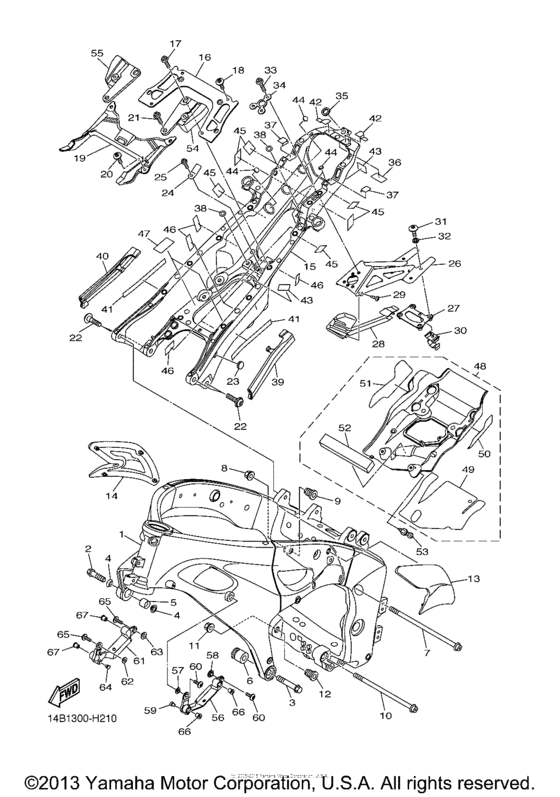

Frame Diagram Yamaha YZF-R1 R1
- Year
- 2009
- Model code
- 14B4
- Sales region
- USA
- Базовая модель
- YZFR1YB
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14B-21110-00-00 Frame CompFOR U 49 |
14B-21110-00-00 |
from US $3,392.96 |
||
|
1
|
1
14B-21110-20-00 Frame CompFOR CALIFORNIA |
14B-21110-20-00 |
US $3,479.18 |
||
|
2
|
2
90105-12062-00 Bolt, Flange |
90105-12062-00 |
from US $3.87 |
||
|
3
|
3
95817-12080-00 Bolt, Flange |
95817-12080-00 |
from US $7.74 |
||
|
4
|
4
14B-21414-00-00 Boss, Engine Mount |
14B-21414-00-00 |
from US $14.45 |
||
|
5
|
5
14B-21424-00-00 Boss, Engine Mount |
14B-21424-00-00 |
from US $25.22 |
||
|
6
|
6
14B-2141R-00-00 Boss |
14B-2141R-00-00 |
from US $47.39 |
||
|
7
|
7
90110-10005-00 Bolt, Hexagon Socket Head |
90110-10005-00 |
from US $13.88 |
||
|
8
|
8
901-79100-28-00 Nut |
901-79100-28-00 |
from US $5.38 |
||
|
9
|
9
14B-21495-00-00 Bolt, Engine Adjusting |
14B-21495-00-00 |
from US $19.27 |
||
|
10
|
10
901-10100-23-00 Bolt, Hexagon Socket Head |
901-10100-23-00 |
from US $17.99 |
||
|
11
|
11
901-79100-28-00 Nut |
901-79100-28-00 |
from US $5.38 |
||
|
12
|
12
14B-21495-00-00 Bolt, Engine Adjusting |
14B-21495-00-00 |
from US $19.27 |
||
|
13
|
13
14B-24121-00-00 Seat, Knee Grip 1 |
14B-24121-00-00 |
from US $35.65 |
||
|
14
|
14
14B-24122-00-00 Seat, Knee Grip 2 |
14B-24122-00-00 |
from US $35.65 |
||
|
15
|
15
14B-21190-00-00 Rear Frame |
14B-21190-00-00 |
from US $1,222.32 |
||
|
16
|
16
14B-21131-00-00 Bracket |
14B-21131-00-00 |
from US $61.34 |
||
|
17
|
17
90109-06015-00 Bolt |
90109-06015-00 |
from US $1.70 |
||
|
18
|
18
90111-06051-00 Bolt, Hex. Socket Button |
90111-06051-00 |
from US $1.70 |
||
|
19
|
19
14B-21214-00-00 Reinf, Frame Rr |
14B-21214-00-00 |
from US $74.05 |
||
|
20
|
20
90111-06051-00 Bolt, Hex. Socket Button |
90111-06051-00 |
from US $1.70 |
||
|
21
|
21
90109-06015-00 Bolt |
90109-06015-00 |
from US $1.70 |
||
|
22
|
22
14B-2585H-09-00 Screw, Set |
14B-2585H-09-00 |
from US $5.38 |
||
|
23
|
23
90338-15004-00 Plug |
90338-15004-00 |
from US $1.70 |
||
|
24
|
24
14B-2116B-00-00
Brkt
|
14B-2116B-00-00 |
— | ||
|
25
|
25
90109-06014-00 Bolt, Hexagon Socket Head |
90109-06014-00 |
from US $1.98 |
||
| replacement | |||||
|
25
|
25
90110-06331-00 Bolt, Hexagon Socket Head |
90110-06331-00 |
from US $1.34 |
||
|
26
|
26
14B-21640-00-00 Rear Stay Comp |
14B-21640-00-00 |
from US $115.92 |
||
|
27
|
27
14B-21682-00-00 Stay, Plate |
14B-21682-00-00 |
from US $32.16 |
||
|
28
|
28
14B-2163A-00-00 Cover, Rear Fender 1 |
14B-2163A-00-00 |
from US $6.38 |
||
|
29
|
29
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.42 |
||
| replacement | |||||
|
29
|
29
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
30
|
30
90464-14228-00 Clamp |
90464-14228-00 |
from US $4.53 |
||
|
31
|
31
901-11061-29-00 Bolt, Hex. Socket Button |
901-11061-29-00 |
from US $1.98 |
||
|
32
|
32
90387-061Y1-00 Washer, Plate |
90387-061Y1-00 |
US $2.69 |
||
| replacement | |||||
|
32
|
32
90201-06040-00 Washer, Plate |
90201-06040-00 |
from US $2.69 |
||
|
33
|
33
90110-06156-00 Bolt |
90110-06156-00 |
US $1.70 |
||
| replacement | |||||
|
33
|
33
90109-06031-00 Bolt |
90109-06031-00 |
from US $1.34 |
||
|
34
|
34
14B-21615-00-00 Washer, Special 1 |
14B-21615-00-00 |
from US $11.33 |
||
|
35
|
35
13S-21746-00-00 Damper |
13S-21746-00-00 |
from US $1.84 |
||
|
36
|
36
14B-22873-00-00 Seal 1 |
14B-22873-00-00 |
from US $3.12 |
||
|
37
|
37
14B-22874-00-00 Seal 2 |
14B-22874-00-00 |
from US $3.40 |
||
|
38
|
38
13S-2173M-00-00 Seal 3 |
13S-2173M-00-00 |
from US $4.96 |
||
|
39
|
39
14B-22876-00-00 Seal 4 |
14B-22876-00-00 |
from US $10.06 |
||
|
40
|
40
14B-22877-00-00 Seal, 5 |
14B-22877-00-00 |
from US $10.06 |
||
|
41
|
41
13S-21567-00-00 Tape, 2 |
13S-21567-00-00 |
from US $8.64 |
||
|
42
|
42
14B-22879-00-00 Seal, 7 |
14B-22879-00-00 |
from US $4.39 |
||
|
43
|
43
14B-28425-00-00 Damper 3 |
14B-28425-00-00 |
from US $3.54 |
||
|
44
|
44
14B-28217-00-00 Damper 1 |
14B-28217-00-00 |
from US $1.40 |
||
|
45
|
45
14B-28227-00-00 Damper 2 |
14B-28227-00-00 |
from US $1.56 |
||
|
46
|
46
14B-28237-00-00 Damper 3 |
14B-28237-00-00 |
from US $1.56 |
||
|
47
|
47
14B-28435-00-00 Damper 4 |
14B-28435-00-00 |
from US $2.98 |
||
|
48
|
48
14B-2110N-00-00
Cover Assy 2
|
14B-2110N-00-00 |
— | ||
|
49
|
49
14B-2112B-00-00 Seat 1 |
14B-2112B-00-00 |
from US $10.06 |
||
|
50
|
50
14B-2113C-00-00 Sheet, 2 |
14B-2113C-00-00 |
from US $4.39 |
||
|
51
|
51
14B-2113D-00-00 Sheet, 3 |
14B-2113D-00-00 |
US $4.82 |
||
|
52
|
52
905-20150-01-00 Damper, Plate |
905-20150-01-00 |
from US $3.12 |
||
|
53
|
53
902-69060-16-00 Rivet |
902-69060-16-00 |
from US $1.34 |
||
|
54
|
54
14B-2172E-00-00 Stay, Side Cover 1 |
14B-2172E-00-00 |
from US $18.70 |
||
|
55
|
55
14B-2174E-00-00 Stay, Side Cover 2 |
14B-2174E-00-00 |
from US $18.70 |
||
|
56
|
56
14B-2836F-00-00 Bracket 3 |
14B-2836F-00-00 |
from US $3.40 |
||
|
57
|
57
903-87062-17-00 Collar |
903-87062-17-00 |
from US $15.16 |
||
|
58
|
58
90560-08251-00 Collar |
90560-08251-00 |
from US $2.69 |
||
| replacement | |||||
|
58
|
58
90387-08079-00 Collar |
90387-08079-00 |
from US $2.69 |
||
|
59
|
59
903-38060-18-00
Plug
|
903-38060-18-00 |
— | ||
| replacement | |||||
|
59
|
59
903-38071-80-00 Plug |
903-38071-80-00 |
from US $1.98 |
||
|
60
|
60
90111-06051-00 Bolt, Hex. Socket Button |
90111-06051-00 |
from US $1.70 |
||
|
61
|
61
14B-2836G-00-00 Bracket 4 |
14B-2836G-00-00 |
from US $3.40 |
||
|
62
|
62
903-87062-17-00 Collar |
903-87062-17-00 |
from US $15.16 |
||
|
63
|
63
90560-08251-00 Collar |
90560-08251-00 |
from US $2.69 |
||
| replacement | |||||
|
63
|
63
90387-08079-00 Collar |
90387-08079-00 |
from US $2.69 |
||
|
64
|
64
903-38060-18-00
Plug
|
903-38060-18-00 |
— | ||
| replacement | |||||
|
64
|
64
903-38071-80-00 Plug |
903-38071-80-00 |
from US $1.98 |
||
|
65
|
65
90111-06051-00 Bolt, Hex. Socket Button |
90111-06051-00 |
from US $1.70 |
||
|
66
|
66
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
67
|
67
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
