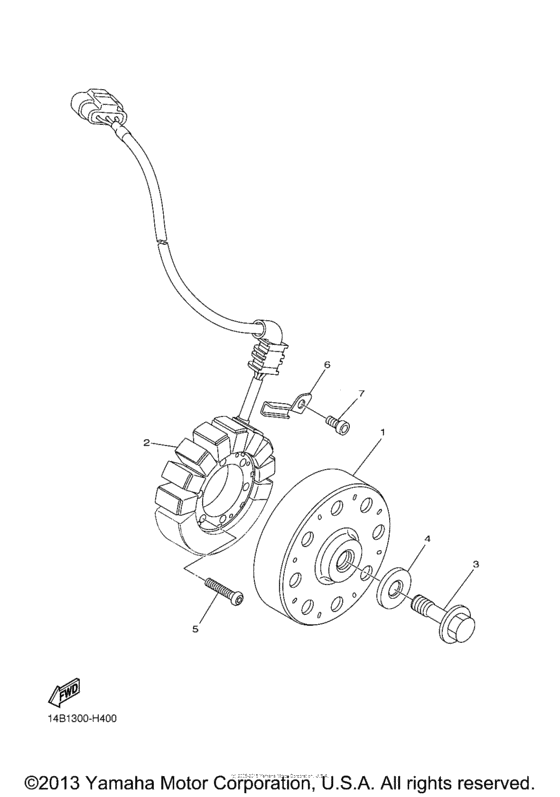

Generator Diagram Yamaha YZF-R1 R1
- Year
- 2009
- Model code
- 14B4
- Sales region
- USA
- Базовая модель
- YZFR1YB
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14B-81450-00-00 Rotor Assy |
14B-81450-00-00 |
from US $450.12 |
||
|
2
|
2
14B-81410-00-00 Stator Assy |
14B-81410-00-00 |
from US $481.49 |
||
|
3
|
3
90105-126A8-00 Bolt, Flange |
90105-126A8-00 |
from US $13.32 |
||
|
4
|
4
90201-12008-00 Washer, Plate |
90201-12008-00 |
from US $11.76 |
||
|
5
|
5
901-49061-28-00 Screw |
901-49061-28-00 |
from US $1.70 |
||
| replacement | |||||
|
5
|
5
901-49061-29-00 Screw |
901-49061-29-00 |
from US $1.10 |
||
|
6
|
6
14B-15484-00-00 Clamp 2 |
14B-15484-00-00 |
from US $6.38 |
||
|
7
|
7
90110-06182-00 Bolt |
90110-06182-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.07 |
||
