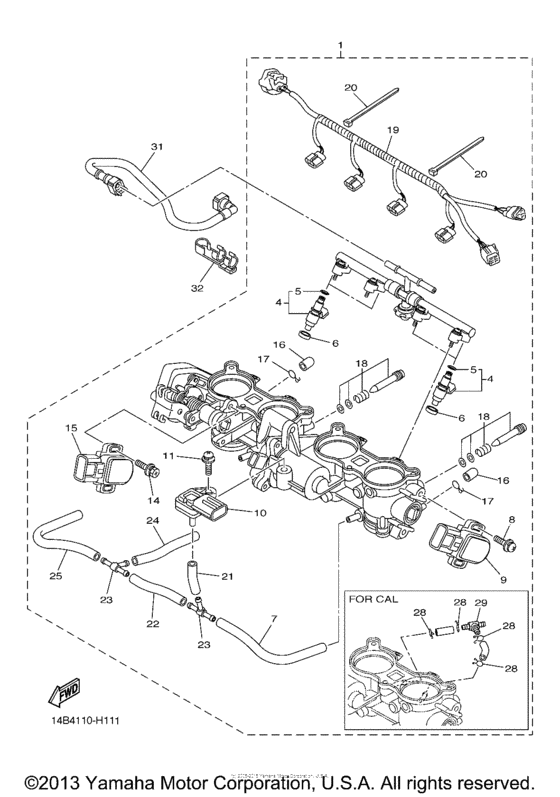

Intake (2) Diagram Yamaha YZF-R1 R1
- Year
- 2009
- Model code
- 14B4
- Sales region
- USA
- Базовая модель
- YZFR1YB
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14B-13750-00-00 Throttle Body AssyFOR U 49 |
14B-13750-00-00 |
from US $2,190.21 |
||
|
1
|
1
14B-13750-10-00 Throttle Body AssyFOR CALIFORNIA |
14B-13750-10-00 |
US $2,190.21 |
||
|
2
|
2
14B-1393A-00-00 Pipe, Inlet |
14B-1393A-00-00 |
US $72.12 |
||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
14B-1393B-00-00 Pipe, Inlet 2 |
14B-1393B-00-00 |
US $72.12 |
||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
14B-13761-00-00 Injector |
14B-13761-00-00 |
from US $183.75 |
||
|
5
|
5
5PS-14147-00-00 O-Ring |
5PS-14147-00-00 |
from US $10.06 |
||
|
6
|
6
8FP-13556-00-00 Rubber, Injector |
8FP-13556-00-00 |
from US $4.53 |
||
|
7
|
7
5PW-14396-00-00 Pipe |
5PW-14396-00-00 |
from US $11.34 |
||
|
8
|
8
8CC-14216-10-00 Screw |
8CC-14216-10-00 |
from US $6.09 |
||
|
9
|
9
13S-85885-00-00
Throttle Sensor Assy
|
13S-85885-00-00 |
— | ||
| replacement | |||||
|
9
|
9
13S-85885-01-00 Throttle Sensor Assy |
13S-85885-01-00 |
from US $127.94 |
||
|
10
|
10
2C0-82380-00-00
Sensor, Pressure
|
2C0-82380-00-00 |
— | ||
| replacement | |||||
|
10
|
10
1WS-82380-00-00 Sensor, Pressure |
1WS-82380-00-00 |
from US $114.40 |
||
|
11
|
11
2C0-14216-00-00 Screw |
2C0-14216-00-00 |
from US $2.98 |
||
|
12
|
12
14B-13571-00-00
Washer
|
14B-13571-00-00 |
— | ||
|
13
|
13
14B-13573-00-00 Bolt 1NOT AVAILABLE |
14B-13573-00-00 |
from US $2.41 |
||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
NOT AVAILABLE |
999-99999-99-00 |
— | ||
|
14
|
14
5FL-14216-00-00 Screw |
5FL-14216-00-00 |
from US $4.11 |
||
|
15
|
15
13S-85884-00-00 Accelerator Sensor Assy |
13S-85884-00-00 |
from US $123.10 |
||
|
16
|
16
895-14169-00-00 Cap |
895-14169-00-00 |
from US $4.11 |
||
|
17
|
17
8A7-14139-00-00 Clip, Pipe |
8A7-14139-00-00 |
from US $3.40 |
||
|
18
|
18
2C0-14105-00-00 Pilot Screw Set |
2C0-14105-00-00 |
from US $18.99 |
||
|
19
|
19
14B-82386-00-00 Extension, Wire Harness |
14B-82386-00-00 |
from US $105.42 |
||
|
20
|
20
4KM-14137-00-00 Clip |
4KM-14137-00-00 |
from US $7.69 |
||
|
21
|
21
5FL-14348-10-00 Pipe 1 |
5FL-14348-10-00 |
from US $4.11 |
||
|
22
|
22
5JW-24311-00-00 Pipe, Fuel 1 |
5JW-24311-00-00 |
from US $4.39 |
||
|
23
|
23
68V-24376-00-00 Pipe, Joint 1 |
68V-24376-00-00 |
from US $9.07 |
||
|
24
|
24
5JW-14348-00-00 Pipe 1 |
5JW-14348-00-00 |
from US $5.81 |
||
|
25
|
25
5PW-14349-00-00 Pipe |
5PW-14349-00-00 |
from US $6.94 |
||
|
26
|
26
2S3-13769-00-00
O-Ring
|
2S3-13769-00-00 |
— | ||
|
27
|
27
14B-14466-00-00 PipeFOR CALIFORNIA, NOT AVAILABLE |
14B-14466-00-00 |
from US $17 |
||
|
28
|
28
904-67090-06-00
Clip
FOR CALIFORNIA |
904-67090-06-00 |
— | ||
| replacement | |||||
|
28
|
28
904-67090-A2-00 ClipFOR CALIFORNIA |
904-67090-A2-00 |
from US $1.56 |
||
|
29
|
29
90413-06031-00 Way 3FOR CALIFORNIA |
90413-06031-00 |
from US $7.51 |
||
|
30
|
30
14B-14465-00-00 PipeFOR CALIFORNIA, NOT AVAILABLE |
14B-14465-00-00 |
from US $12.33 |
||
|
31
|
31
14B-13971-00-00 Pipe, Fuel 1 |
14B-13971-00-00 |
from US $63.97 |
||
|
32
|
32
90464-16005-00 Clamp |
90464-16005-00 |
from US $7.65 |
||
