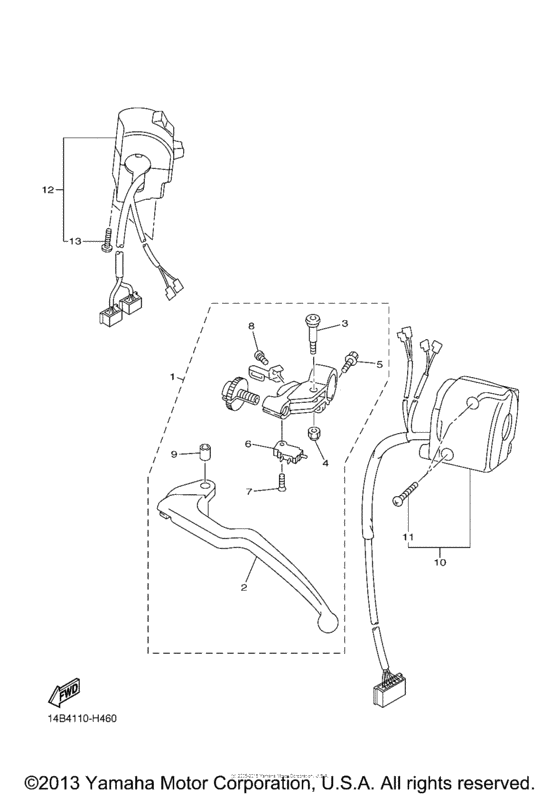

Handle switch & lever Diagram Yamaha YZF-R1 R1
- Year
- 2010
- Model code
- 14BG
- Sales region
- United States (California)
- Базовая модель
- YZFR1ZCW
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2C0-82910-01-00 Lever Holder Assy (Left) |
2C0-82910-01-00 |
from US $111.77 |
||
| replacement | |||||
|
1
|
1
2C0-82910-02-00 Lever Holder Assy |
2C0-82910-02-00 |
US $124.27 |
||
|
2
|
2
5EB-83912-03-00 Lever 1 |
5EB-83912-03-00 |
from US $21.39 |
||
|
3
|
3
2C0-83945-00-00 Bolt, Lever |
2C0-83945-00-00 |
from US $5.38 |
||
|
4
|
4
956-07062-00-00
Nut, U Flange
|
956-07062-00-00 |
— | ||
| replacement | |||||
|
4
|
4
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
5
|
5
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.42 |
||
|
6
|
6
4XV-82917-01-00 Switch |
4XV-82917-01-00 |
from US $20.18 |
||
|
7
|
7
98707-03016-00 Screw, Flat Head |
98707-03016-00 |
from US $1.98 |
||
|
8
|
8
98507-04010-00 Screw, Pan Head |
98507-04010-00 |
from US $1.21 |
||
|
9
|
9
5JJ-83913-00-00 Collar, Lever 1 |
5JJ-83913-00-00 |
from US $5.81 |
||
|
10
|
10
14B-83973-10-00 Switch, Handle 3 |
14B-83973-10-00 |
from US $113.88 |
||
|
11
|
11
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.42 |
||
|
12
|
12
14B-83963-00-00 Switch, Handle 3 (Right) |
14B-83963-00-00 |
from US $131.67 |
||
|
13
|
13
98507-05045-00 Screw, Pan Head |
98507-05045-00 |
from US $1.42 |
||
