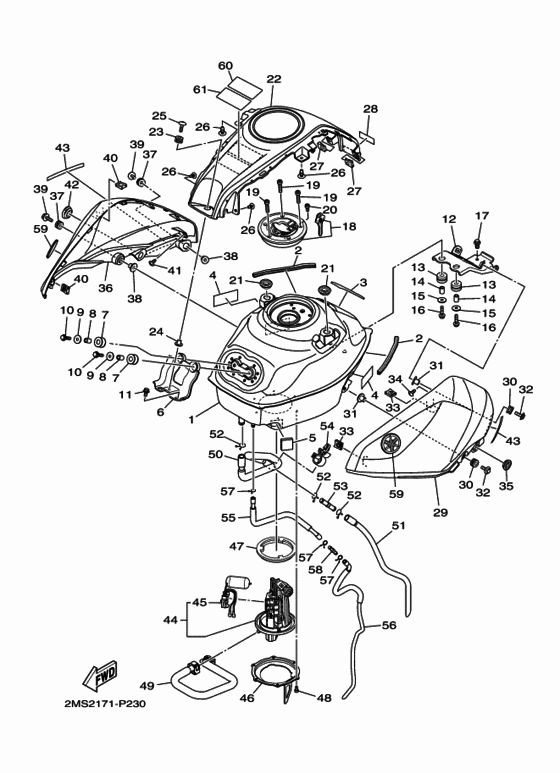

Fuel tank Diagram Yamaha YZF-R3
- Year
- 2015
- Colour
- Black Metallic X
- Model code
- 2MS2
- Sales region
- Canada (010)
- Engine Capacity
- 300
- Color Variant
- B
- Model
- YZF-R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1WD-F4110-00-00
Fuel Tank
|
1WD-F4110-00-00 |
— | ||
| replacement | |||||
|
1
|
1
BR5-F4110-00-00 Fuel Tank |
BR5-F4110-00-00 |
from US $330.20 |
||
|
2
|
2
1WD-F4188-00-00 Mold, Fuel Tank |
1WD-F4188-00-00 |
from US $4.53 |
||
|
3
|
3
905-20038-23-00 Damper, Plate |
905-20038-23-00 |
from US $2.14 |
||
|
4
|
4
5D9-F414G-00-00 Seal |
5D9-F414G-00-00 |
from US $1.28 |
||
|
5
|
5
45P-F414H-00-00 Damper, Plate 1 |
45P-F414H-00-00 |
from US $0.95 |
||
|
6
|
6
1WD-F412Y-00-00 Bracket, Tank Fitting |
1WD-F412Y-00-00 |
from US $24.41 |
||
| replacement | |||||
|
6
|
6
1WD-F412Y-01-00 BRACKET, TANK FITTIN |
1WD-F412Y-01-00 |
from US $13.39 |
||
|
7
|
7
1WD-F4339-00-00 Grommet |
1WD-F4339-00-00 |
from US $1.60 |
||
|
8
|
8
90387-06299-00 Collar |
90387-06299-00 |
from US $1.70 |
||
| replacements | |||||
|
8
|
8
903-87075-98-00 Collar (1T2) |
903-87075-98-00 |
from US $1.70 |
||
|
8
|
8
90387-06553-00 Collar (1M1) |
90387-06553-00 |
from US $1.98 |
||
|
9
|
9
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
10
|
10
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
| replacement | |||||
|
10
|
10
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
11
|
11
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
12
|
12
1WD-F4191-00-00 Bracket, Fuel Tank 1 |
1WD-F4191-00-00 |
from US $28.80 |
||
|
13
|
13
904-80158-07-00 Grommet |
904-80158-07-00 |
from US $2.09 |
||
|
14
|
14
90387-06299-00 Collar |
90387-06299-00 |
from US $1.70 |
||
| replacements | |||||
|
14
|
14
903-87075-98-00 Collar (1T2) |
903-87075-98-00 |
from US $1.70 |
||
|
14
|
14
90387-06553-00 Collar (1M1) |
90387-06553-00 |
from US $1.98 |
||
|
15
|
15
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
16
|
16
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
| replacement | |||||
|
16
|
16
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
17
|
17
950-22080-14-00 Bolt, Flange |
950-22080-14-00 |
from US $1.07 |
||
|
18
|
18
1WD-WF461-00-00 Cap Assy |
1WD-WF461-00-00 |
from US $71.08 |
||
|
19
|
19
90110-05806-00 Bolt, Hexagon Socket Head |
90110-05806-00 |
from US $1.70 |
||
| replacement | |||||
|
19
|
19
90110-05112-00 Bolt, Hexagon Socket Head |
90110-05112-00 |
from US $1.70 |
||
|
20
|
20
91312-05010-00 Bolt |
91312-05010-00 |
from US $1.56 |
||
|
21
|
21
90480-01558-00 Grommet |
90480-01558-00 |
from US $1.56 |
||
|
22
|
22
1WD-F41B1-00-P0 Cover, TankMBL2 FOR SMX,VRC1 |
1WD-F41B1-00-P0 |
from US $20.70 |
||
|
23
|
23
904-80128-08-00 Grommet |
904-80128-08-00 |
from US $1.28 |
||
|
24
|
24
903-87068-99-00 Collar |
903-87068-99-00 |
from US $2.83 |
||
|
25
|
25
901-11061-17-00 Bolt, Hex. Socket Button |
901-11061-17-00 |
from US $1.42 |
||
|
26
|
26
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
27
|
27
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
27
|
27
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
28
|
28
1WD-F414G-00-00 Seal |
1WD-F414G-00-00 |
from US $1.33 |
||
|
29
|
29
1WD-F4129-00-P0 Cover, Side 1UR FOR SMX |
1WD-F4129-00-P0 |
from US $32.59 |
||
|
30
|
30
904-80128-08-00 Grommet |
904-80128-08-00 |
from US $1.28 |
||
|
31
|
31
903-87068-99-00 Collar |
903-87068-99-00 |
from US $2.83 |
||
|
32
|
32
90119-05020-00 Bolt, With Washer |
90119-05020-00 |
from US $1.84 |
||
|
33
|
33
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
33
|
33
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
34
|
34
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
35
|
35
90480-01559-00 Grommet |
90480-01559-00 |
from US $4.39 |
||
|
36
|
36
1WD-F4139-00-P0 Cover, Side 2UR FOR SMX |
1WD-F4139-00-P0 |
from US $32.59 |
||
|
37
|
37
904-80128-08-00 Grommet |
904-80128-08-00 |
from US $1.28 |
||
|
38
|
38
903-87068-99-00 Collar |
903-87068-99-00 |
from US $2.83 |
||
|
39
|
39
90119-05020-00 Bolt, With Washer |
90119-05020-00 |
from US $1.84 |
||
|
40
|
40
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
40
|
40
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
41
|
41
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
42
|
42
90480-01559-00 Grommet |
90480-01559-00 |
from US $4.39 |
||
|
43
|
43
1WD-F414E-00-00 Seal 2 |
1WD-F414E-00-00 |
from US $4.11 |
||
|
44
|
44
1WD-E3907-00-00 Fuel Pump Comp |
1WD-E3907-00-00 |
from US $557.04 |
||
| replacements | |||||
|
44
|
44
1WD-E3907-11-00 Fuel Pump Comp. |
1WD-E3907-11-00 |
from US $362.79 |
||
|
44
|
44
1WD-E3907-12-00 |
1WD-E3907-12-00 |
US $362.79 |
||
|
45
|
45
1WD-H5752-00-00 Sender Unit Assy, Fuel Meter |
1WD-H5752-00-00 |
from US $60.79 |
||
|
46
|
46
1WD-F4491-00-00 Bracket, Fuel Pump |
1WD-F4491-00-00 |
from US $10.62 |
||
|
47
|
47
3C1-F4486-00-00 O-Ring |
3C1-F4486-00-00 |
from US $27.63 |
||
|
48
|
48
91312-05010-00 Bolt |
91312-05010-00 |
from US $1.56 |
||
|
49
|
49
1WD-E3971-00-00 Pipe, Fuel 1 |
1WD-E3971-00-00 |
from US $87.44 |
||
| replacements | |||||
|
49
|
49
1WD-E3971-01-00 Pipe, Fuel 1 |
1WD-E3971-01-00 |
from US $36.68 |
||
|
49
|
49
1WD-E3971-02-00 Pipe, Fuel 1 |
1WD-E3971-02-00 |
from US $68.40 |
||
|
50
|
50
1WD-F4312-00-00 Pipe 2 |
1WD-F4312-00-00 |
from US $12.64 |
||
|
51
|
51
1WD-F4314-00-00 Pipe 4 |
1WD-F4314-00-00 |
from US $26.48 |
||
|
52
|
52
90467-15012-00 Clip |
90467-15012-00 |
from US $1.56 |
||
|
53
|
53
1WD-F4376-00-00 Pipe, Joint 1 |
1WD-F4376-00-00 |
from US $21.54 |
||
|
54
|
54
90464-16012-00 Clamp |
90464-16012-00 |
from US $1.70 |
||
|
55
|
55
1WD-F4313-00-00 Pipe 3 |
1WD-F4313-00-00 |
US $35.51 |
||
|
56
|
56
1WD-F4315-00-00 Pipe 5 |
1WD-F4315-00-00 |
US $21.82 |
||
|
57
|
57
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
57
|
57
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
58
|
58
4XY-14568-00-00 Joint |
4XY-14568-00-00 |
from US $1.70 |
||
|
59
|
59
1WD-F413B-00-00 Emblem |
1WD-F413B-00-00 |
from US $9.08 |
||
| replacement | |||||
|
59
|
59
1WD-F413B-01-00 Emblem |
1WD-F413B-01-00 |
from US $7.94 |
||
|
60
|
60
1TP-2118K-A1-00
Label, Caution
|
1TP-2118K-A1-00 |
— | ||
| replacement | |||||
|
60
|
60
1TP-2118K-A2-00 Label, Caution |
1TP-2118K-A2-00 |
from US $4.53 |
||
|
61
|
61
1TP-2118K-B1-00 Label, Caution |
1TP-2118K-B1-00 |
from US $6.94 |
||
