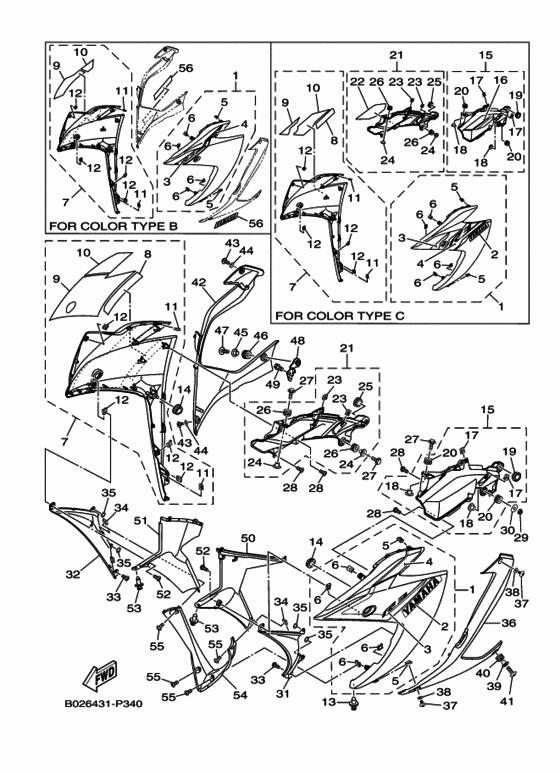

Cowling 1 Diagram Yamaha YZF-R3
- Year
- 2015
- Colour
- Vivid Red Cocktail 1
- Model code
- 2MS2
- Sales region
- Canada (010)
- Engine Capacity
- 300
- Color Variant
- C
- Model
- YZF-R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1WD-XF83L-60-P2 Body, Front Under 1 Sub AssyUR WM6 FOR VRC1 |
1WD-XF83L-60-P2 |
from US $169.47 |
||
|
2
|
2
1WD-F8328-10-00 EmblemUR FOR VRC1 |
1WD-F8328-10-00 |
from US $7.23 |
||
|
3
|
3
1WD-F8393-20-00 Graphic 3UR FOR VRC1 |
1WD-F8393-20-00 |
from US $0.97 |
||
|
4
|
4
2MS-F8398-00-00 Graphic 5UR FOR VRC1 |
2MS-F8398-00-00 |
from US $12.40 |
||
|
5
|
5
90183-050A7-00 Nut, Spring |
90183-050A7-00 |
from US $3.54 |
||
|
6
|
6
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
6
|
6
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
7
|
7
1WD-XF83M-60-P2 Body, Front Under 2 Sub AssyUR WM6 FOR VRC1 |
1WD-XF83M-60-P2 |
from US $169.47 |
||
|
8
|
8
1WD-F8328-10-00 EmblemUR FOR VRC1 |
1WD-F8328-10-00 |
from US $7.23 |
||
|
9
|
9
1WD-F8394-20-00 Graphic 4UR FOR VRC1 |
1WD-F8394-20-00 |
from US $2.72 |
||
|
10
|
10
2MS-F8399-00-00 Graphic 6UR FOR VRC1 |
2MS-F8399-00-00 |
from US $12.40 |
||
|
11
|
11
90183-050A7-00 Nut, Spring |
90183-050A7-00 |
from US $3.54 |
||
|
12
|
12
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
12
|
12
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
13
|
13
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.34 |
||
|
14
|
14
90480-01558-00 Grommet |
90480-01558-00 |
from US $1.56 |
||
|
15
|
15
1WD-XF11W-50-P0 Cover 7MBL2(VRC1) |
1WD-XF11W-50-P0 |
from US $42.71 |
||
|
16
|
16
2MS-F83GA-00-00 Graphic, 7FOR VRC1 |
2MS-F83GA-00-00 |
from US $4.61 |
||
|
17
|
17
90183-050A7-00 Nut, Spring |
90183-050A7-00 |
from US $3.54 |
||
|
18
|
18
903-87068-99-00 Collar |
903-87068-99-00 |
from US $2.83 |
||
|
19
|
19
90480-01558-00 Grommet |
90480-01558-00 |
from US $1.56 |
||
|
20
|
20
904-80128-08-00 Grommet |
904-80128-08-00 |
from US $1.28 |
||
|
21
|
21
1WD-XF11X-60-P0 Cover 8MBL2(VRC1) |
1WD-XF11X-60-P0 |
from US $42.71 |
||
|
22
|
22
2MS-F83GB-00-00 Graphic, 8FOR VRC1 |
2MS-F83GB-00-00 |
from US $5.56 |
||
|
23
|
23
90183-050A7-00 Nut, Spring |
90183-050A7-00 |
from US $3.54 |
||
|
24
|
24
903-87068-99-00 Collar |
903-87068-99-00 |
from US $2.83 |
||
|
25
|
25
90480-01558-00 Grommet |
90480-01558-00 |
from US $1.56 |
||
|
26
|
26
904-80128-08-00 Grommet |
904-80128-08-00 |
from US $1.28 |
||
|
27
|
27
901-19068-10-00 Bolt, With Washer |
901-19068-10-00 |
from US $1.56 |
||
| replacements | |||||
|
27
|
27
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.70 |
||
|
27
|
27
90119-06096-00 Bolt, With Washer |
90119-06096-00 |
from US $1.34 |
||
|
28
|
28
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
28
|
28
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
29
|
29
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
29
|
29
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
30
|
30
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
31
|
31
1WD-F835U-00-P0 Panel 1MBL2 |
1WD-F835U-00-P0 |
from US $44.35 |
||
|
32
|
32
1WD-F835V-00-P0 Panel 2MBL2 |
1WD-F835V-00-P0 |
from US $44.35 |
||
|
33
|
33
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
33
|
33
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
34
|
34
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
34
|
34
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
35
|
35
90183-06815-00 Nut, Spring |
90183-06815-00 |
from US $1.98 |
||
| replacement | |||||
|
35
|
35
90183-06008-00 Nut, Spring |
90183-06008-00 |
from US $1.98 |
||
|
36
|
36
1WD-F8385-00-P0 Cover, UnderMBL2 |
1WD-F8385-00-P0 |
from US $21.82 |
||
|
37
|
37
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
38
|
38
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
39
|
39
903-87068-99-00 Collar |
903-87068-99-00 |
from US $2.83 |
||
|
40
|
40
904-80128-08-00 Grommet |
904-80128-08-00 |
from US $1.28 |
||
|
41
|
41
901-11061-17-00 Bolt, Hex. Socket Button |
901-11061-17-00 |
from US $1.42 |
||
|
42
|
42
1WD-F8395-00-P0 Cover, Under 2MBL2 |
1WD-F8395-00-P0 |
from US $34.87 |
||
|
43
|
43
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
44
|
44
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
45
|
45
903-87068-99-00 Collar |
903-87068-99-00 |
from US $2.83 |
||
|
46
|
46
904-80128-08-00 Grommet |
904-80128-08-00 |
from US $1.28 |
||
|
47
|
47
901-11061-17-00 Bolt, Hex. Socket Button |
901-11061-17-00 |
from US $1.42 |
||
|
48
|
48
1WD-F833E-00-00 Bracket 8 |
1WD-F833E-00-00 |
from US $8.64 |
||
|
49
|
49
95022-06012-00 Bolt, Flange |
95022-06012-00 |
from US $1.07 |
||
|
50
|
50
1WD-F836K-00-00 Panel, Inner 1 |
1WD-F836K-00-00 |
from US $14.73 |
||
|
51
|
51
1WD-F836L-00-00 Panel, Inner 2 |
1WD-F836L-00-00 |
from US $14.73 |
||
|
52
|
52
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
52
|
52
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
53
|
53
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.34 |
||
|
54
|
54
1WD-F836M-00-00 Panel, Inner 3 |
1WD-F836M-00-00 |
from US $27.49 |
||
|
55
|
55
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
55
|
55
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
