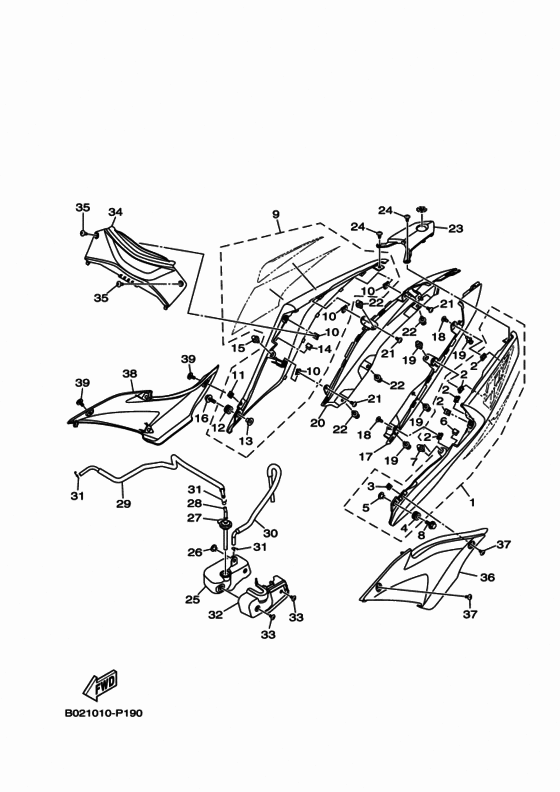

Side cover Diagram Yamaha YZF-R3
- Year
- 2015
- Colour
- ﾃﾞｲ-ﾌﾟ ﾊﾟ-ﾌﾟﾘﾂｼﾕ ﾌﾞﾙ- ﾒﾀﾘﾂｸ C
- Model code
- B021
- Sales region
- Japan (010)
- Engine Capacity
- 300
- Color Variant
- A
- Model
- YZF-R3 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1WD-XF171-30-P1 Cover, Side 1UR DPBMC, WG |
1WD-XF171-30-P1 |
from US $41.72 |
||
|
2
|
2
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
2
|
2
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
3
|
3
90183-050A7-00 Nut, Spring |
90183-050A7-00 |
from US $3.54 |
||
|
4
|
4
904-80128-08-00 Grommet |
904-80128-08-00 |
from US $1.28 |
||
|
5
|
5
903-87068-99-00 Collar |
903-87068-99-00 |
from US $2.83 |
||
|
6
|
6
31B-F8307-00-00 Seal |
31B-F8307-00-00 |
from US $1.28 |
||
|
7
|
7
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.34 |
||
|
8
|
8
901-19068-10-00 Bolt, With Washer |
901-19068-10-00 |
from US $1.56 |
||
| replacements | |||||
|
8
|
8
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.70 |
||
|
8
|
8
90119-06096-00 Bolt, With Washer |
90119-06096-00 |
from US $1.34 |
||
|
9
|
9
1WD-XF172-30-P1 Cover, Side 2UR DPBMC, WG |
1WD-XF172-30-P1 |
from US $41.72 |
||
|
10
|
10
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
10
|
10
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
11
|
11
90183-050A7-00 Nut, Spring |
90183-050A7-00 |
from US $3.54 |
||
|
12
|
12
904-80128-08-00 Grommet |
904-80128-08-00 |
from US $1.28 |
||
|
13
|
13
903-87068-99-00 Collar |
903-87068-99-00 |
from US $2.83 |
||
|
14
|
14
31B-F8307-00-00 Seal |
31B-F8307-00-00 |
from US $1.28 |
||
|
15
|
15
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.34 |
||
|
16
|
16
901-19068-10-00 Bolt, With Washer |
901-19068-10-00 |
from US $1.56 |
||
| replacements | |||||
|
16
|
16
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.70 |
||
|
16
|
16
90119-06096-00 Bolt, With Washer |
90119-06096-00 |
from US $1.34 |
||
|
17
|
17
1WD-F171L-00-00 Mole, Side Cover 1 |
1WD-F171L-00-00 |
from US $6.77 |
||
|
18
|
18
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
18
|
18
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
19
|
19
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.34 |
||
|
20
|
20
1WD-F171M-00-00 Mole, Side Cover 2 |
1WD-F171M-00-00 |
from US $7.79 |
||
|
21
|
21
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
21
|
21
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
22
|
22
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.34 |
||
|
23
|
23
1WD-F171N-00-00 Mole, Side Cover 3WOG |
1WD-F171N-00-00 |
from US $5.10 |
||
|
24
|
24
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
24
|
24
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
25
|
25
1WD-F1871-00-00 Tank, Recovery |
1WD-F1871-00-00 |
from US $13.32 |
||
| replacement | |||||
|
25
|
25
1WD-F1871-01-00 Tank, Recovery |
1WD-F1871-01-00 |
from US $7.28 |
||
|
26
|
26
90387-06857-00 Collar |
90387-06857-00 |
from US $1.42 |
||
|
27
|
27
1WD-F1875-00-00 Cap |
1WD-F1875-00-00 |
from US $1.69 |
||
|
28
|
28
3C1-F1828-00-00 Elbow |
3C1-F1828-00-00 |
from US $6.38 |
||
| replacement | |||||
|
28
|
28
26H-21828-00-00 Elbow |
26H-21828-00-00 |
from US $3.98 |
||
|
29
|
29
1WD-F1816-00-00 Pipe 1 |
1WD-F1816-00-00 |
from US $14.47 |
||
| replacement | |||||
|
29
|
29
1WD-F1816-01-00 Pipe 1 |
1WD-F1816-01-00 |
from US $12.04 |
||
|
30
|
30
1WD-F1817-00-00 Pipe 2 |
1WD-F1817-00-00 |
from US $6.66 |
||
|
31
|
31
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
32
|
32
1WD-F172W-00-00 Cover |
1WD-F172W-00-00 |
from US $11.62 |
||
|
33
|
33
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
34
|
34
1WD-F1731-00-P1 Cover, Side 3UR DPBMC |
1WD-F1731-00-P1 |
from US $41.86 |
||
|
35
|
35
901-60058-10-00 Screw, Round Tapping |
901-60058-10-00 |
from US $1.28 |
||
|
36
|
36
1WD-F171E-00-00 Cover, Side 5 |
1WD-F171E-00-00 |
from US $13.18 |
||
|
37
|
37
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
38
|
38
1WD-F171X-00-00 Cover, Side 6 |
1WD-F171X-00-00 |
from US $10.22 |
||
|
39
|
39
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
