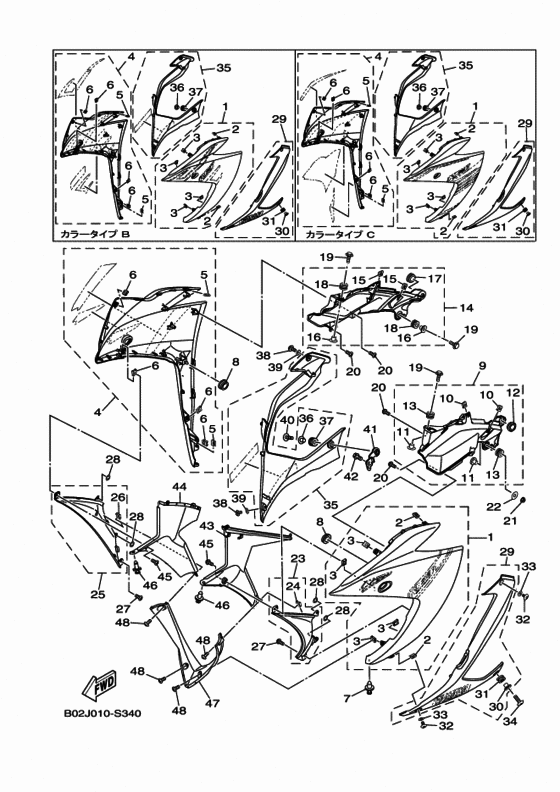

Cowling 1 Diagram Yamaha YZF-R3
- Year
- 2017
- Colour
- ﾎﾜｲﾄ ﾒﾀﾘﾂｸ 6
- Model code
- B02J
- Sales region
- Japan (010)
- Engine Capacity
- 300
- Color Variant
- C
- Model
- YZF-R3 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1WD-XF83L-B0-P2 BODY, FR. UNDER 1 SUUR WM6 |
1WD-XF83L-B0-P2 |
from US $120.04 |
||
|
2
|
2
90183-050A7-00 Nut, Spring |
90183-050A7-00 |
from US $3.54 |
||
|
3
|
3
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
3
|
3
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
4
|
4
1WD-XF83M-B0-P2 BODY, FR. UNDER 2 SUUR WM6 |
1WD-XF83M-B0-P2 |
from US $120.04 |
||
|
5
|
5
90183-050A7-00 Nut, Spring |
90183-050A7-00 |
from US $3.54 |
||
|
6
|
6
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
6
|
6
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
7
|
7
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.34 |
||
|
8
|
8
90480-01558-00 Grommet |
90480-01558-00 |
from US $1.56 |
||
|
9
|
9
1WD-XF11W-10-P0 Cover 7UR MBL2 |
1WD-XF11W-10-P0 |
from US $35.65 |
||
|
10
|
10
90183-050A7-00 Nut, Spring |
90183-050A7-00 |
from US $3.54 |
||
|
11
|
11
903-87068-99-00 Collar |
903-87068-99-00 |
from US $2.83 |
||
|
12
|
12
90480-01558-00 Grommet |
90480-01558-00 |
from US $1.56 |
||
|
13
|
13
904-80128-08-00 Grommet |
904-80128-08-00 |
from US $1.28 |
||
|
14
|
14
1WD-XF11X-10-P0 Cover 8UR MBL2 |
1WD-XF11X-10-P0 |
from US $35.37 |
||
|
15
|
15
90183-050A7-00 Nut, Spring |
90183-050A7-00 |
from US $3.54 |
||
|
16
|
16
903-87068-99-00 Collar |
903-87068-99-00 |
from US $2.83 |
||
|
17
|
17
90480-01558-00 Grommet |
90480-01558-00 |
from US $1.56 |
||
|
18
|
18
904-80128-08-00 Grommet |
904-80128-08-00 |
from US $1.28 |
||
|
19
|
19
901-19068-10-00 Bolt, With Washer |
901-19068-10-00 |
from US $1.56 |
||
| replacements | |||||
|
19
|
19
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.70 |
||
|
19
|
19
90119-06096-00 Bolt, With Washer |
90119-06096-00 |
from US $1.34 |
||
|
20
|
20
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
20
|
20
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
21
|
21
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
21
|
21
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
22
|
22
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
23
|
23
1WD-XF835-00-P0 PANEL ASSYUR MBL2 |
1WD-XF835-00-P0 |
from US $22.25 |
||
|
24
|
24
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
24
|
24
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
25
|
25
1WD-XF83B-00-P0 PANEL ASSY 2UR MBL2 |
1WD-XF83B-00-P0 |
from US $22.25 |
||
|
26
|
26
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
26
|
26
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
27
|
27
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
27
|
27
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
28
|
28
90183-06815-00 Nut, Spring |
90183-06815-00 |
from US $1.98 |
||
| replacement | |||||
|
28
|
28
90183-06008-00 Nut, Spring |
90183-06008-00 |
from US $1.98 |
||
|
29
|
29
1WD-XF838-00-P0 Under Cover Assy 1UR MBL2 |
1WD-XF838-00-P0 |
from US $26.12 |
||
|
30
|
30
903-87068-99-00 Collar |
903-87068-99-00 |
from US $2.83 |
||
|
31
|
31
904-80128-08-00 Grommet |
904-80128-08-00 |
from US $1.28 |
||
|
32
|
32
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
33
|
33
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
34
|
34
901-11061-17-00 Bolt, Hex. Socket Button |
901-11061-17-00 |
from US $1.42 |
||
|
35
|
35
1WD-XF839-00-P0 Under Cover Assy 2UR MBL2 |
1WD-XF839-00-P0 |
from US $29.27 |
||
|
36
|
36
903-87068-99-00 Collar |
903-87068-99-00 |
from US $2.83 |
||
|
37
|
37
904-80128-08-00 Grommet |
904-80128-08-00 |
from US $1.28 |
||
|
38
|
38
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
39
|
39
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
40
|
40
901-11061-17-00 Bolt, Hex. Socket Button |
901-11061-17-00 |
from US $1.42 |
||
|
41
|
41
1WD-F833E-00-00 Bracket 8 |
1WD-F833E-00-00 |
from US $8.64 |
||
|
42
|
42
95022-06012-00 Bolt, Flange |
95022-06012-00 |
from US $1.07 |
||
|
43
|
43
1WD-F836K-00-00 Panel, Inner 1 |
1WD-F836K-00-00 |
from US $14.73 |
||
|
44
|
44
1WD-F836L-00-00 Panel, Inner 2 |
1WD-F836L-00-00 |
from US $14.73 |
||
|
45
|
45
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
45
|
45
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
46
|
46
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.34 |
||
|
47
|
47
1WD-F836M-00-00 Panel, Inner 3 |
1WD-F836M-00-00 |
from US $27.49 |
||
|
48
|
48
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
48
|
48
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
