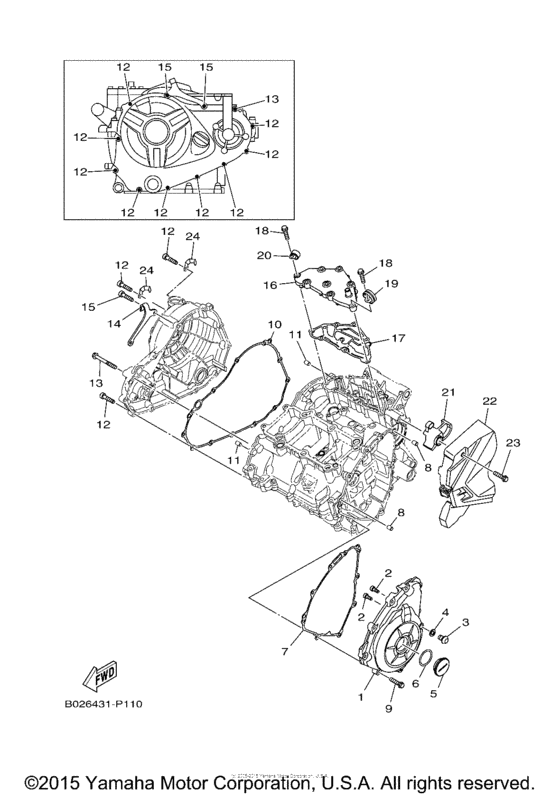

Crankcase cover (1) Diagram Yamaha YZF-R3
- Year
- 2015
- Model code
- 2MS1
- Sales region
- USA
- Engine Capacity
- 300
- Model
- YZF-R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1WD-E5411-00-00 Cover, Crankcase 1 |
1WD-E5411-00-00 |
from US $98.65 |
||
|
2
|
2
91312-05012-00 Bolt |
91312-05012-00 |
from US $1.42 |
||
| replacement | |||||
|
2
|
2
91317-05012-00 Bolt |
91317-05012-00 |
from US $1.07 |
||
|
3
|
3
92014-08012-00 Bolt, Button Head |
92014-08012-00 |
from US $1.84 |
||
|
4
|
4
90430-08143-00 Gasket |
90430-08143-00 |
from US $1.70 |
||
|
5
|
5
90340-32819-00 Plug, Straight Screw |
90340-32819-00 |
from US $3.64 |
||
|
6
|
6
932-10328-16-00 O-Ring |
932-10328-16-00 |
from US $1.28 |
||
|
7
|
7
1WD-E5451-00-00 Gasket, Crankcase Cover 1 |
1WD-E5451-00-00 |
from US $2.32 |
||
|
8
|
8
99530-08012-00 Pin, Dowel |
99530-08012-00 |
from US $1.07 |
||
|
9
|
9
95022-06025-00 Bolt, Flange |
95022-06025-00 |
from US $1.42 |
||
|
10
|
10
1WD-E5461-00-00 Gasket, Crankcase Cover 2 |
1WD-E5461-00-00 |
from US $15.22 |
||
|
11
|
11
99530-08012-00 Pin, Dowel |
99530-08012-00 |
from US $1.07 |
||
|
12
|
12
95022-06025-00 Bolt, Flange |
95022-06025-00 |
from US $1.42 |
||
|
13
|
13
95022-06050-00 Bolt, Flange |
95022-06050-00 |
from US $1.42 |
||
|
14
|
14
2MS-E5441-00-00 Holder, Clutch Cable |
2MS-E5441-00-00 |
from US $3.78 |
||
|
15
|
15
913-12060-25-00
Bolt
|
913-12060-25-00 |
— | ||
| replacement | |||||
|
15
|
15
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
16
|
16
1WD-E5413-10-00 Cover |
1WD-E5413-10-00 |
from US $46.12 |
||
|
17
|
17
1WD-E5462-00-00 Gasket, Crankcase Cover 3 |
1WD-E5462-00-00 |
from US $3.40 |
||
|
18
|
18
95022-06025-00 Bolt, Flange |
95022-06025-00 |
from US $1.42 |
||
|
19
|
19
904-62088-12-00 Clamp |
904-62088-12-00 |
from US $1.42 |
||
|
20
|
20
904-62088-06-00 Clamp |
904-62088-06-00 |
from US $1.42 |
||
|
21
|
21
1WD-E5377-00-00 Guide, Inlet |
1WD-E5377-00-00 |
from US $5.81 |
||
| replacement | |||||
|
21
|
21
BS7-E5377-00-00 Guide, Inlet |
BS7-E5377-00-00 |
from US $5.81 |
||
|
22
|
22
1WD-E5418-00-00 Cover, Chain Case |
1WD-E5418-00-00 |
from US $7.28 |
||
|
23
|
23
95022-06025-00 Bolt, Flange |
95022-06025-00 |
from US $1.42 |
||
|
24
|
24
90462-08225-00 Clamp |
90462-08225-00 |
from US $5.67 |
||
