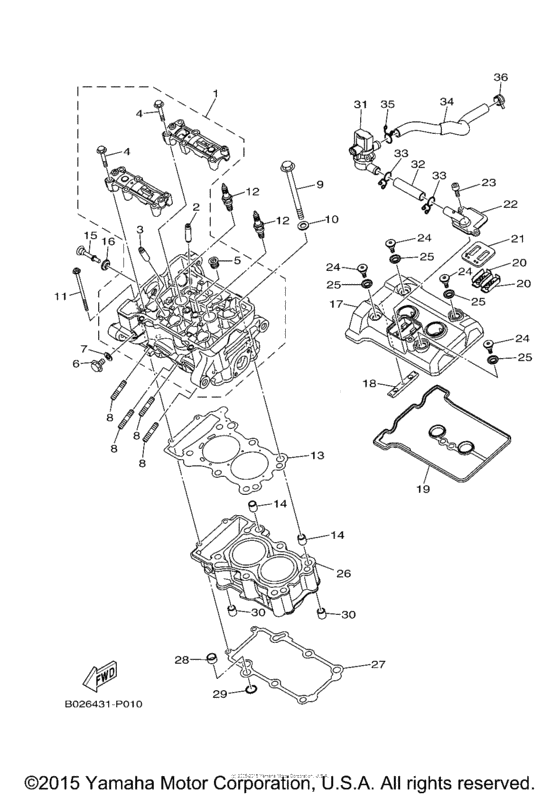

Cylinder head Diagram Yamaha YZF-R3
- Year
- 2015
- Model code
- 2MS1
- Sales region
- USA
- Engine Capacity
- 300
- Model
- YZF-R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2MS-E1102-00-00 Cylinder Head Assy |
2MS-E1102-00-00 |
from US $538.69 |
||
| replacements | |||||
|
1
|
1
2MS-E1102-10-00 Cylinder Head Assy |
2MS-E1102-10-00 |
from US $487.12 |
||
|
1
|
1
2MS-E1102-11-00 Cylinder Head Assy |
2MS-E1102-11-00 |
from US $581.18 |
||
|
2
|
2
2MS-E1133-10-00 Guide, Valve 1 |
2MS-E1133-10-00 |
from US $53.19 |
||
|
3
|
3
1WD-E1133-10-00 Guide, Valve 1 |
1WD-E1133-10-00 |
from US $40.48 |
||
|
4
|
4
90105-06027-00 Bolt, Flange |
90105-06027-00 |
from US $1.34 |
||
|
5
|
5
903-40180-02-00 Plug, Straight Screw |
903-40180-02-00 |
from US $3.98 |
||
|
6
|
6
95022-08012-00 Bolt, Flange |
95022-08012-00 |
from US $1.56 |
||
|
7
|
7
904-30081-19-00
Gasket
|
904-30081-19-00 |
— | ||
| replacement | |||||
|
7
|
7
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.28 |
||
|
8
|
8
95612-08625-00 Bolt, Stud |
95612-08625-00 |
from US $1.66 |
||
|
9
|
9
2MS-11361-00-00 Bolt, Cylinder Holding 1 |
2MS-11361-00-00 |
from US $7.65 |
||
|
10
|
10
902-01108-45-00 Washer, Plate |
902-01108-45-00 |
from US $1.84 |
||
|
11
|
11
901-10068-70-00 Bolt, Hexagon Socket Head |
901-10068-70-00 |
from US $3.54 |
||
|
12
|
12
947-00008-72-00 Plug, Spark (Ngk Cr8E) |
947-00008-72-00 |
US $13.55 |
||
| replacements | |||||
|
12
|
12
CR8-E0000-00-00 Plug, Spark (Ngk Cr8E) |
CR8-E0000-00-00 |
US $42.92 |
||
|
12
|
12
947-03004-11-00 Plug, Spark (NGK CR8E) |
947-03004-11-00 |
US $9.92 |
||
|
12
|
12
947-01004-11-00
Plug, Spark (Ngk Cr8E)
|
947-01004-11-00 |
— | ||
|
12
|
12
NGK-CR8E0-10-00
Spark Plug Cr8E
|
NGK-CR8E0-10-00 |
— | ||
|
13
|
13
2MS-E1181-00-00 Gasket, Cylinder Head 1 |
2MS-E1181-00-00 |
from US $15.54 |
||
|
14
|
14
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.56 |
||
|
15
|
15
901-09068-98-00 Bolt |
901-09068-98-00 |
from US $6.80 |
||
|
16
|
16
1WD-E111G-00-00 Rubber, Mount 1 |
1WD-E111G-00-00 |
from US $10.84 |
||
|
17
|
17
1WD-E1191-00-00 Cover, Cylinder Head 1 |
1WD-E1191-00-00 |
from US $41.66 |
||
|
18
|
18
1WD-E2241-00-00 Guide, Stopper 2 |
1WD-E2241-00-00 |
from US $8.10 |
||
| replacement | |||||
|
18
|
18
1WD-E2241-01-00 |
1WD-E2241-01-00 |
from US $6.77 |
||
|
19
|
19
1WD-E1193-00-00 Gasket, Head Cover 1 |
1WD-E1193-00-00 |
from US $9.92 |
||
|
20
|
20
5VY-1482K-00-00 Plate |
5VY-1482K-00-00 |
from US $2.55 |
||
|
21
|
21
1WD-E4890-00-00 Reed Valve Assy |
1WD-E4890-00-00 |
from US $63.14 |
||
|
22
|
22
1WD-E4899-00-00 Cap, Case |
1WD-E4899-00-00 |
from US $18.28 |
||
|
23
|
23
91312-06020-00 Bolt, Hexagon Socket Head |
91312-06020-00 |
from US $1.21 |
||
| replacement | |||||
|
23
|
23
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.07 |
||
|
24
|
24
901-09068-99-00 Bolt |
901-09068-99-00 |
from US $3.83 |
||
|
25
|
25
1WD-E111G-00-00 Rubber, Mount 1 |
1WD-E111G-00-00 |
from US $10.84 |
||
|
26
|
26
2MS-E1311-00-00 Cylinder 1 |
2MS-E1311-00-00 |
from US $178.92 |
||
| replacement | |||||
|
26
|
26
2MS-WE13E-00-00 Cylinder 1 |
2MS-WE13E-00-00 |
from US $179.82 |
||
|
27
|
27
1WD-E1351-00-00 Gasket, Cylinder |
1WD-E1351-00-00 |
from US $11.90 |
||
| replacement | |||||
|
27
|
27
B1X-E1351-00-00 Gasket, Cylinder |
B1X-E1351-00-00 |
from US $11.90 |
||
|
28
|
28
5NL-12564-00-00 Pipe, Water |
5NL-12564-00-00 |
from US $4.39 |
||
|
29
|
29
932-10167-16-00
O-Ring(59W)
|
932-10167-16-00 |
— | ||
| replacement | |||||
|
29
|
29
932-10167-72-00 O-Ring |
932-10167-72-00 |
from US $1.42 |
||
|
30
|
30
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.56 |
||
|
31
|
31
1WD-E4840-00-00 Air Cut Valve Assy |
1WD-E4840-00-00 |
from US $116.75 |
||
|
32
|
32
1WD-E4881-00-00 Hose, Bend 1 |
1WD-E4881-00-00 |
from US $1.87 |
||
|
33
|
33
904-67168-01-00 Clip |
904-67168-01-00 |
US $3.68 |
||
| replacement | |||||
|
33
|
33
90467-15M14-00 Clip |
90467-15M14-00 |
from US $3.68 |
||
|
34
|
34
1WD-E4882-00-00 Hose, Bend 2 |
1WD-E4882-00-00 |
from US $13.88 |
||
| replacement | |||||
|
34
|
34
1WD-E4882-01-00 Hose, Bend 2 |
1WD-E4882-01-00 |
from US $11.76 |
||
|
35
|
35
904-67168-01-00 Clip |
904-67168-01-00 |
US $3.68 |
||
| replacement | |||||
|
35
|
35
90467-15M14-00 Clip |
90467-15M14-00 |
from US $3.68 |
||
|
36
|
36
90467-16800-00 Clip |
90467-16800-00 |
from US $1.70 |
||
