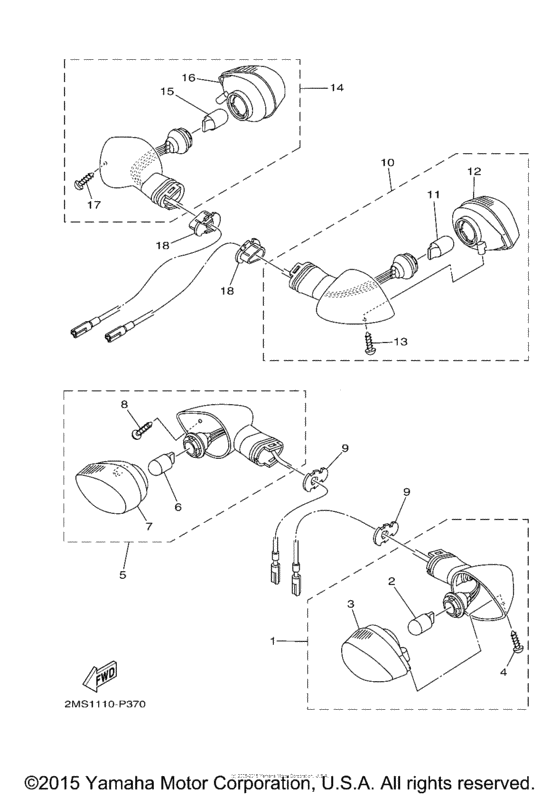

Flasher light Diagram Yamaha YZF-R3
- Year
- 2015
- Model code
- 2MS1
- Sales region
- USA
- Engine Capacity
- 300
- Model
- YZF-R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2MS-H3310-00-00 Front Flasher Light Assy 1 |
2MS-H3310-00-00 |
US $95.40 |
||
|
2
|
2
5GJ-83331-00-00 Bulb, Flasher (12V-21/512V-21/5W T2 |
5GJ-83331-00-00 |
from US $5.67 |
||
|
3
|
3
5PW-8333A-10-00 Lens Comp |
5PW-8333A-10-00 |
from US $21.96 |
||
|
4
|
4
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
5
|
5
2MS-H3320-00-00 Front Flasher Light Assy 2 |
2MS-H3320-00-00 |
from US $52.78 |
||
|
6
|
6
5GJ-83331-00-00 Bulb, Flasher (12V-21/512V-21/5W T2 |
5GJ-83331-00-00 |
from US $5.67 |
||
|
7
|
7
5PW-8334A-10-00 Lens Comp |
5PW-8334A-10-00 |
from US $21.96 |
||
|
8
|
8
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
9
|
9
3D7-83318-10-00 Stay, Flasher 1 |
3D7-83318-10-00 |
from US $1.84 |
||
|
10
|
10
2MS-H3330-00-00 Rear Flasher Light Assy 1 |
2MS-H3330-00-00 |
US $76.97 |
||
|
11
|
11
5PW-83331-00-00 Bulb (12V-21/5W T20)12V-21/5W T20 |
5PW-83331-00-00 |
from US $4.96 |
||
|
12
|
12
5PW-8334A-10-00 Lens Comp |
5PW-8334A-10-00 |
from US $21.96 |
||
|
13
|
13
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
14
|
14
2MS-H3340-00-00 Rear Flasher Light Assy 2 |
2MS-H3340-00-00 |
US $74.93 |
||
|
15
|
15
5PW-83331-00-00 Bulb (12V-21/5W T20)12V-21/5W T20 |
5PW-83331-00-00 |
from US $4.96 |
||
|
16
|
16
5PW-8333A-10-00 Lens Comp |
5PW-8333A-10-00 |
from US $21.96 |
||
|
17
|
17
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
18
|
18
1WD-H3318-00-00 Stay, Flasher 1 |
1WD-H3318-00-00 |
from US $3.54 |
