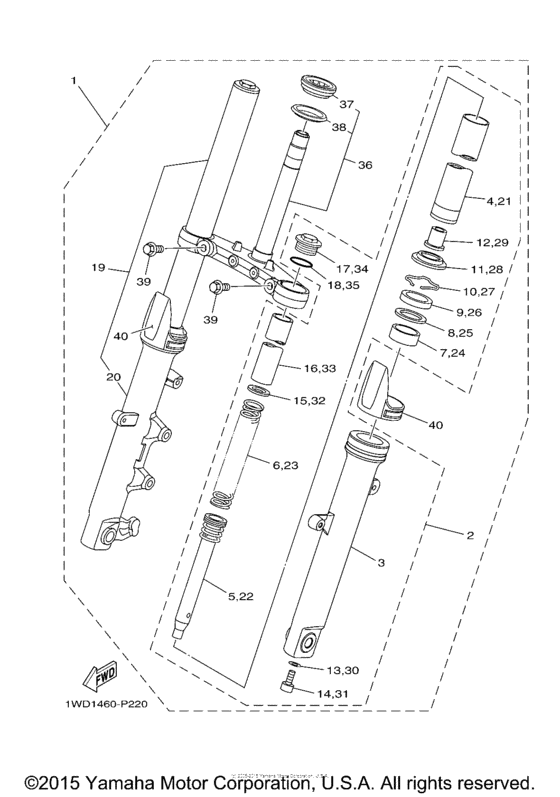

Front fork Diagram Yamaha YZF-R3
- Year
- 2015
- Model code
- 2MS1
- Sales region
- USA
- Engine Capacity
- 300
- Model
- YZF-R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1WD-F3100-00-00 Front Fork Assy |
1WD-F3100-00-00 |
from US $630.79 |
||
|
2
|
2
1WD-F3102-00-00 Front Fork Assy (L.h) |
1WD-F3102-00-00 |
from US $295.52 |
||
|
3
|
3
1WD-F3126-00-00 Tube, Outer (L.h) |
1WD-F3126-00-00 |
from US $115.85 |
||
|
4
|
4
1WD-F3110-00-00 Inner Tube Comp. 1 |
1WD-F3110-00-00 |
from US $142.22 |
||
|
5
|
5
1WD-F3170-00-00 Cylinder Comp., Front For |
1WD-F3170-00-00 |
from US $21.99 |
||
|
6
|
6
1WD-F3141-00-00 Spring, Front Fork |
1WD-F3141-00-00 |
from US $17.06 |
||
|
7
|
7
45P-F3125-00-00 Metal, Slide 1 |
45P-F3125-00-00 |
from US $22.10 |
||
|
8
|
8
45P-F3146-00-00 Washer, Oil Seal |
45P-F3146-00-00 |
from US $2.63 |
||
|
9
|
9
45P-F3145-00-00 Oil Seal |
45P-F3145-00-00 |
from US $4.96 |
||
|
10
|
10
45P-F3156-00-00 Ring, Snap |
45P-F3156-00-00 |
from US $0.79 |
||
|
11
|
11
45P-F3144-00-00 Seal, Dust |
45P-F3144-00-00 |
from US $9.21 |
||
|
12
|
12
1WD-F3173-00-00 Spindle, Taper |
1WD-F3173-00-00 |
from US $9.41 |
||
|
13
|
13
509-F3158-L0-00 Gasket |
509-F3158-L0-00 |
from US $3.54 |
||
| replacement | |||||
|
13
|
13
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.54 |
||
|
14
|
14
31B-F3181-00-00 Bolt, Hexagon Socket Head |
31B-F3181-00-00 |
from US $4.82 |
||
| replacement | |||||
|
14
|
14
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $4.82 |
||
|
15
|
15
45P-F3149-00-00 Washer, Spring Upper |
45P-F3149-00-00 |
from US $0.52 |
||
|
16
|
16
1WD-F3118-00-00 Spacer |
1WD-F3118-00-00 |
from US $2.66 |
||
|
17
|
17
45P-F3111-00-00 Bolt, Cap |
45P-F3111-00-00 |
from US $0.59 |
||
|
18
|
18
45P-F3188-00-00 O-Ring |
45P-F3188-00-00 |
from US $0.99 |
||
|
19
|
19
1WD-F3103-00-00 Front Fork Assy (R.h) |
1WD-F3103-00-00 |
from US $298.87 |
||
|
20
|
20
1WD-F3136-00-00 Tube, Outer |
1WD-F3136-00-00 |
from US $119.66 |
||
|
21
|
21
1WD-F3110-00-00 Inner Tube Comp. 1 |
1WD-F3110-00-00 |
from US $142.22 |
||
|
22
|
22
1WD-F3170-00-00 Cylinder Comp., Front For |
1WD-F3170-00-00 |
from US $21.99 |
||
|
23
|
23
1WD-F3141-00-00 Spring, Front Fork |
1WD-F3141-00-00 |
from US $17.06 |
||
|
24
|
24
45P-F3125-00-00 Metal, Slide 1 |
45P-F3125-00-00 |
from US $22.10 |
||
|
25
|
25
45P-F3146-00-00 Washer, Oil Seal |
45P-F3146-00-00 |
from US $2.63 |
||
|
26
|
26
45P-F3145-00-00 Oil Seal |
45P-F3145-00-00 |
from US $4.96 |
||
|
27
|
27
45P-F3156-00-00 Ring, Snap |
45P-F3156-00-00 |
from US $0.79 |
||
|
28
|
28
45P-F3144-00-00 Seal, Dust |
45P-F3144-00-00 |
from US $9.21 |
||
|
29
|
29
1WD-F3173-00-00 Spindle, Taper |
1WD-F3173-00-00 |
from US $9.41 |
||
|
30
|
30
509-F3158-L0-00 Gasket |
509-F3158-L0-00 |
from US $3.54 |
||
| replacement | |||||
|
30
|
30
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.54 |
||
|
31
|
31
31B-F3181-00-00 Bolt, Hexagon Socket Head |
31B-F3181-00-00 |
from US $4.82 |
||
| replacement | |||||
|
31
|
31
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $4.82 |
||
|
32
|
32
45P-F3149-00-00 Washer, Spring Upper |
45P-F3149-00-00 |
from US $0.52 |
||
|
33
|
33
1WD-F3118-00-00 Spacer |
1WD-F3118-00-00 |
from US $2.66 |
||
|
34
|
34
45P-F3111-00-00 Bolt, Cap |
45P-F3111-00-00 |
from US $0.59 |
||
|
35
|
35
45P-F3188-00-00 O-Ring |
45P-F3188-00-00 |
from US $0.99 |
||
|
36
|
36
1WD-F3340-00-00 Under Bracket Comp |
1WD-F3340-00-00 |
from US $162.59 |
||
|
37
|
37
933-99999-32-00 Bearing |
933-99999-32-00 |
from US $36.20 |
||
|
38
|
38
3FV-23462-00-00 Seal, Steering |
3FV-23462-00-00 |
from US $17.14 |
||
|
39
|
39
45P-F3346-00-00 Bolt 1 |
45P-F3346-00-00 |
from US $2.59 |
||
|
40
|
40
1WS-2331G-00-00 Cover |
1WS-2331G-00-00 |
from US $6.38 |
||
