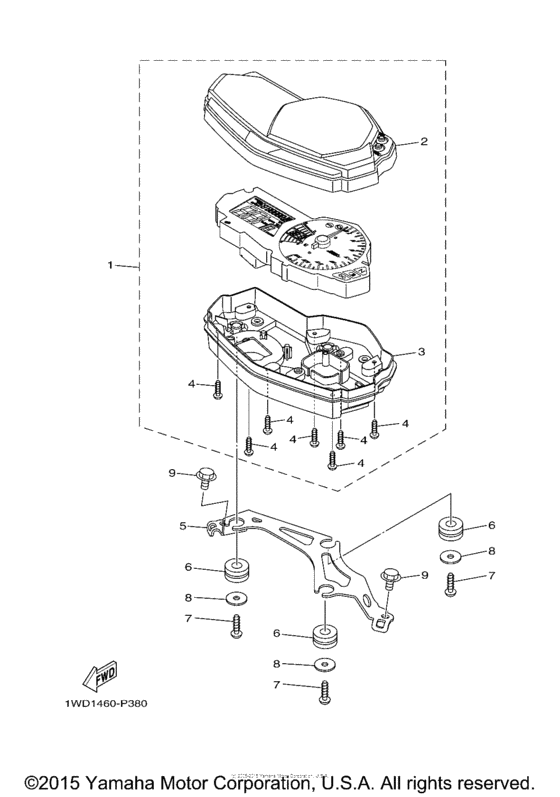

Meter Diagram Yamaha YZF-R3
- Year
- 2015
- Model code
- 2MS1
- Sales region
- USA
- Engine Capacity
- 300
- Model
- YZF-R3
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2MS-H3500-00-00 Meter Assy |
2MS-H3500-00-00 |
US $299.36 |
||
|
2
|
2
1WD-H3571-00-00 Case, Speedometer Upper |
1WD-H3571-00-00 |
from US $37.44 |
||
|
3
|
3
1WD-H3572-00-00 Case, Speedometer Lower |
1WD-H3572-00-00 |
from US $11.99 |
||
|
4
|
4
977-02300-16-00 Screw, Tapping |
977-02300-16-00 |
from US $0.59 |
||
|
5
|
5
1WD-H3519-00-00 Bracket, Meter |
1WD-H3519-00-00 |
from US $13.50 |
||
|
6
|
6
90480-14004-00 Grommet |
90480-14004-00 |
from US $1.70 |
||
|
7
|
7
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
8
|
8
902-01058-27-00 Washer, Plate |
902-01058-27-00 |
from US $1.28 |
||
|
9
|
9
95022-06010-00 Bolt, Flange |
95022-06010-00 |
from US $1.34 |
||
