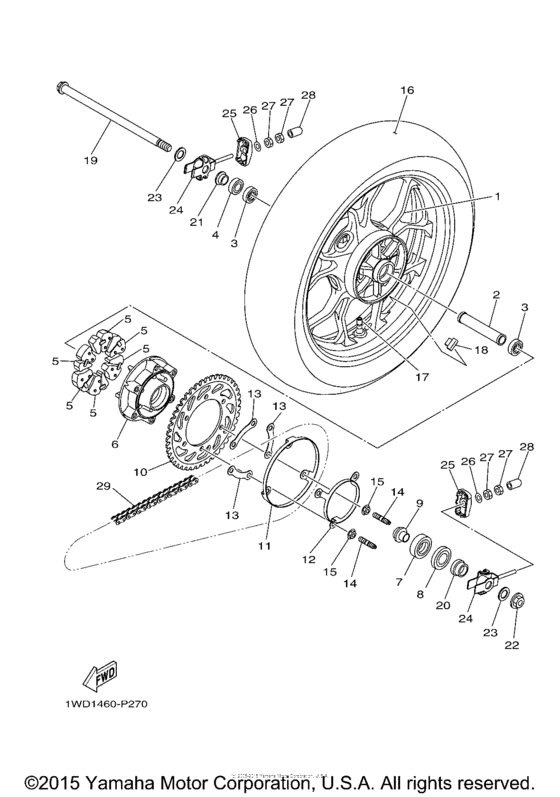

Rear wheel Diagram Yamaha YZF-R3
- Year
- 2015
- Model code
- 2MS1
- Sales region
- USA
- Engine Capacity
- 300
- Model
- YZF-R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1WD-F5338-00-0X Cast Wheel, RearUR LGB/DRSC |
1WD-F5338-00-0X |
from US $505.12 |
||
| replacement | |||||
|
1
|
1
1WD-F5338-03-0X UR LGB/DRSC |
1WD-F5338-03-0X |
from US $367.60 |
||
|
1
|
1
1WD-F5338-00-P0 Cast Wheel, RearUR DPBM15 |
1WD-F5338-00-P0 |
from US $404.95 |
||
| replacements | |||||
|
1
|
1
1WD-F5338-02-P0 Cast Wheel, RearUR DPBM15 |
1WD-F5338-02-P0 |
from US $326.06 |
||
|
1
|
1
1WD-F5338-03-P0 CAST WHEEL, REARUR DPBM15 |
1WD-F5338-03-P0 |
from US $355.41 |
||
|
2
|
2
903-87178-10-00 Collar |
903-87178-10-00 |
from US $14.72 |
||
|
3
|
3
93306-20314-00 Bearing |
93306-20314-00 |
from US $24.23 |
||
| replacement | |||||
|
3
|
3
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.30 |
||
|
4
|
4
931-06230-02-00 Oil Seal |
931-06230-02-00 |
from US $4.39 |
||
|
5
|
5
1WD-F5364-00-00 Damper |
1WD-F5364-00-00 |
from US $6.94 |
||
|
6
|
6
1WD-F5366-00-98 Clutch, HubFOR SMX, VRC1 |
1WD-F5366-00-98 |
from US $25.38 |
||
|
6
|
6
1WD-F5366-00-P0 Clutch, HubFOR DPBMC |
1WD-F5366-00-P0 |
from US $54.68 |
||
|
7
|
7
933-06304-50-00 Bearing |
933-06304-50-00 |
from US $51.67 |
||
|
8
|
8
93106-38046-00 Oil Seal |
93106-38046-00 |
from US $7.28 |
||
|
9
|
9
1WD-F5377-00-00 Collar, Wheel |
1WD-F5377-00-00 |
from US $10.22 |
||
|
10
|
10
1WD-F5443-00-00 Sprocket, Driven (43T)43T |
1WD-F5443-00-00 |
from US $66.46 |
||
|
11
|
11
1WD-F537W-00-00 Bracket 1 |
1WD-F537W-00-00 |
from US $26.35 |
||
|
12
|
12
1WD-F537X-00-00 Brkt 2 |
1WD-F537X-00-00 |
from US $10.42 |
||
|
13
|
13
1WD-F539F-00-00 Plate 1 |
1WD-F539F-00-00 |
from US $1.98 |
||
|
14
|
14
901-16100-65-00 Bolt, Stud |
901-16100-65-00 |
from US $5.10 |
||
|
15
|
15
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
16
|
16
941-14178-03-00 Tire (140/70-17 M/c 66H)140/70-17 M/C 66H MICHELIN |
941-14178-03-00 |
US $396.36 |
||
| replacement | |||||
|
16
|
16
94114-17808-00 Tire140/70-17 M/C 66H MICHELIN |
94114-17808-00 |
US $445.55 |
||
|
17
|
17
939-00008-28-00 Valve, Rim |
939-00008-28-00 |
from US $4.82 |
||
|
18
|
18
5MT-25398-20-00 Balancer, Wheel (30G)30G UN |
5MT-25398-20-00 |
from US $7.65 |
||
|
18
|
18
5MT-25398-00-00 Balancer, Wheel (10G)10G UN |
5MT-25398-00-00 |
from US $7.65 |
||
|
18
|
18
5MT-25398-10-00 Balancer, Wheel (20G)20G UN |
5MT-25398-10-00 |
from US $7.65 |
||
|
19
|
19
1WD-25381-00-00 Axle, Wheel |
1WD-25381-00-00 |
from US $36.75 |
||
|
20
|
20
1WD-F5386-00-00 Collar, Sprocket Axle |
1WD-F5386-00-00 |
from US $16.58 |
||
|
21
|
21
1WD-F5383-00-00 Collar, Wheel |
1WD-F5383-00-00 |
from US $2.41 |
||
|
22
|
22
956-02162-00-00 Nut, Self-Locking |
956-02162-00-00 |
from US $9.49 |
||
|
23
|
23
902-01178-09-00 Washer, Plate |
902-01178-09-00 |
from US $1.70 |
||
|
24
|
24
1WD-F5388-00-00 Puller, Chain 1 |
1WD-F5388-00-00 |
from US $7.28 |
||
|
25
|
25
1WD-F2174-00-00 End 1 |
1WD-F2174-00-00 |
from US $12.33 |
||
|
26
|
26
92902-08600-00 Washer, Plate |
92902-08600-00 |
US $1.56 |
||
| replacement | |||||
|
26
|
26
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
27
|
27
95302-08600-00 Nut, Hexagon |
95302-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
27
|
27
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
27
|
27
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
|
28
|
28
40D-E443G-00-00 Pipe, Drain 2 |
40D-E443G-00-00 |
from US $1.98 |
||
|
29
|
29
945-68H31-12-00 Chain (Did520Vf 112Le)112LE |
945-68H31-12-00 |
from US $134.99 |
||
