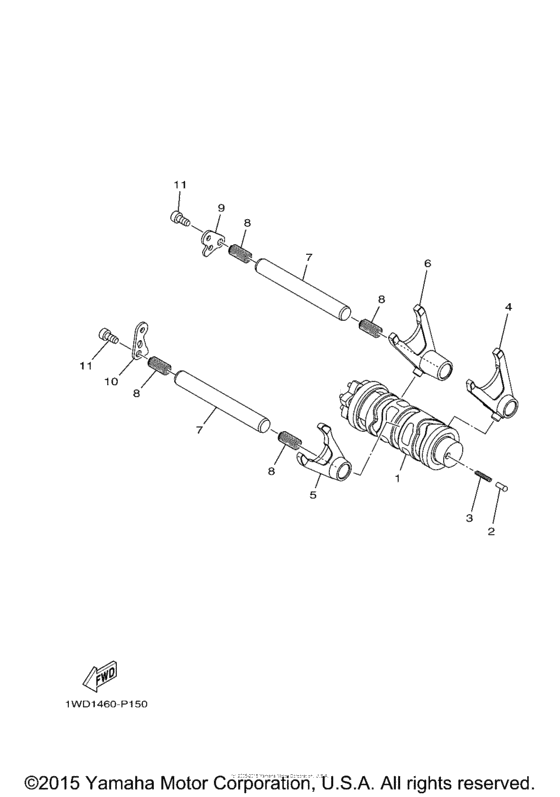

Shift Cam & Fork Diagram Yamaha YZF-R3
- Year
- 2015
- Model code
- 2MS1
- Sales region
- USA
- Engine Capacity
- 300
- Model
- YZF-R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1WD-E8540-10-00 Shift Cam Assy |
1WD-E8540-10-00 |
from US $97.20 |
||
|
2
|
2
5TP-E8542-00-00 Point, Neutral |
5TP-E8542-00-00 |
from US $0.79 |
||
|
3
|
3
90501-06022-00 Spring, Compression |
90501-06022-00 |
from US $1.66 |
||
|
4
|
4
1WD-E8511-00-00 Fork, Shift 1 |
1WD-E8511-00-00 |
from US $33.01 |
||
|
5
|
5
1WD-E8512-00-00 Fork, Shift 2 |
1WD-E8512-00-00 |
from US $31.03 |
||
|
6
|
6
1WD-E8513-00-00 Fork, Shift 3 |
1WD-E8513-00-00 |
from US $34.99 |
||
|
7
|
7
1WD-E8531-00-00 Bar, Shift Fork Guide 1 |
1WD-E8531-00-00 |
from US $13.64 |
||
|
8
|
8
90501-080A2-00 Spring, Compression |
90501-080A2-00 |
from US $1.70 |
||
|
9
|
9
1WD-E8536-00-00 Stopper, Shift Bar |
1WD-E8536-00-00 |
from US $1.42 |
||
|
10
|
10
1WD-E8562-00-00 Plate, Stopper 2 |
1WD-E8562-00-00 |
from US $1.42 |
||
|
11
|
11
90110-06182-00 Bolt |
90110-06182-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.07 |
||
