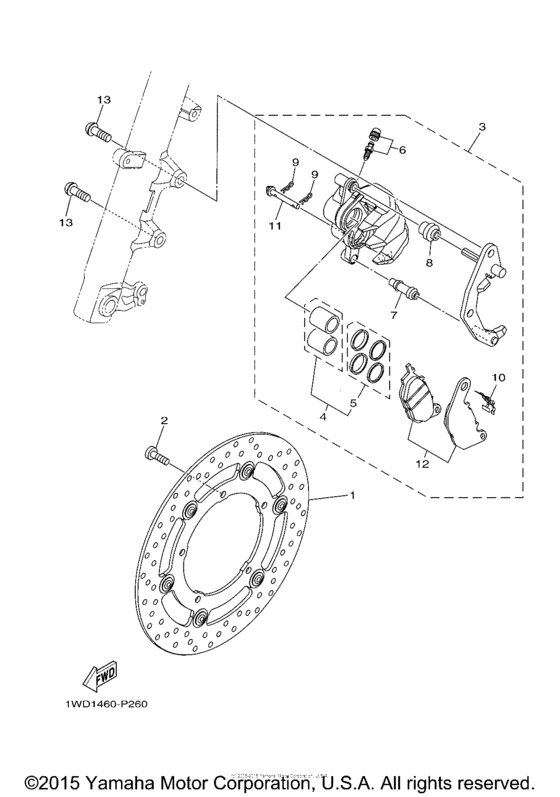

Front brake caliper Diagram Yamaha YZF-R3
- Year
- 2015
- Model code
- 2MS1
- Sales region
- USA
- Engine Capacity
- 300
- Model
- YZF-R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1WD-F581U-00-00 Disc Brake Assy (Right) |
1WD-F581U-00-00 |
from US $218.88 |
||
| replacement | |||||
|
1
|
1
1WD-F581U-01-00 Disk Brake Assy (Rig |
1WD-F581U-01-00 |
from US $107.78 |
||
|
2
|
2
901-11088-15-00 Bolt, Hex. Socket Button |
901-11088-15-00 |
from US $1.42 |
||
|
3
|
3
1WD-F580U-01-00 Caliper Assy (Right) |
1WD-F580U-01-00 |
from US $210.60 |
||
|
4
|
4
1WD-25802-00-00 Piston Assy, Caliper |
1WD-25802-00-00 |
from US $29.95 |
||
|
5
|
5
1WD-25803-00-00 Caliper Seal Kit |
1WD-25803-00-00 |
from US $13.48 |
||
|
6
|
6
4C9-W0048-00-00 Bleed Screw Kit |
4C9-W0048-00-00 |
from US $8.08 |
||
| replacement | |||||
|
6
|
6
15B-W0048-00-00 Bleed Screw Kit |
15B-W0048-00-00 |
from US $8.08 |
||
|
7
|
7
5YP-F5937-00-00 Boot 2 |
5YP-F5937-00-00 |
from US $5.06 |
||
|
8
|
8
5YP-F5917-00-00 Boot, Caliper |
5YP-F5917-00-00 |
from US $4.11 |
||
|
9
|
9
5YP-F5925-01-00 Clip |
5YP-F5925-01-00 |
from US $0.79 |
||
|
10
|
10
1WD-F5919-00-00 Support, Pad |
1WD-F5919-00-00 |
from US $5.02 |
||
|
11
|
11
5YP-F5924-00-00 Pin, Pad |
5YP-F5924-00-00 |
from US $2.45 |
||
|
12
|
12
1WD-25805-00-00 Brake Pad Kit |
1WD-25805-00-00 |
from US $64.94 |
||
|
13
|
13
901-49108-04-00 Screw |
901-49108-04-00 |
from US $2.69 |
||
