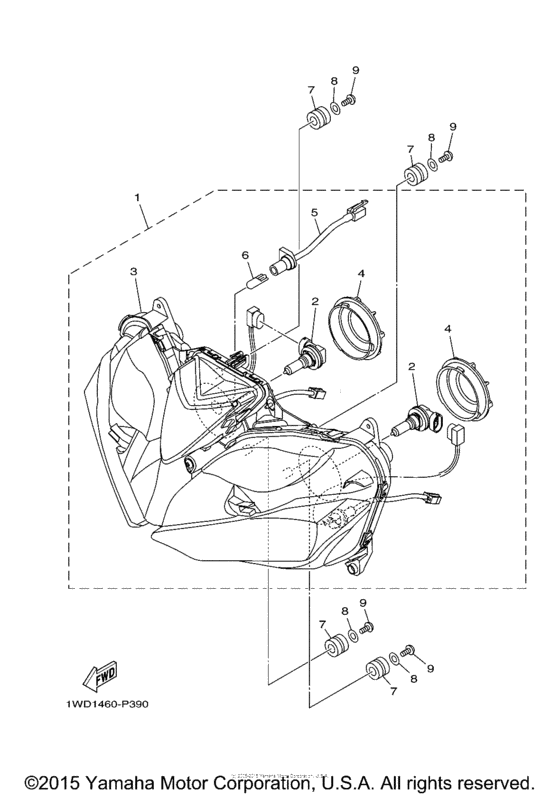

Headlight Diagram Yamaha YZF-R3
- Year
- 2015
- Model code
- 2MS1
- Sales region
- USA
- Engine Capacity
- 300
- Model
- YZF-R3
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1WD-H4300-00-00 Headlight Assy |
1WD-H4300-00-00 |
from US $284.40 |
||
|
2
|
2
1WD-H4314-00-00 Bulb (12V-55W)12V-55W |
1WD-H4314-00-00 |
from US $45.87 |
||
|
3
|
3
1WD-H4303-00-00 Headlight Unit Assy |
1WD-H4303-00-00 |
from US $296.44 |
||
|
4
|
4
1WD-H4397-00-00 Cover, Socket |
1WD-H4397-00-00 |
from US $16.72 |
||
|
5
|
5
1WD-H4340-00-00 Socket Cord Assy 1 |
1WD-H4340-00-00 |
from US $3.55 |
||
|
6
|
6
1WD-H4347-00-00 Bulb (12V-5W)12V-5W |
1WD-H4347-00-00 |
from US $4.68 |
||
|
7
|
7
90480-14004-00 Grommet |
90480-14004-00 |
from US $1.70 |
||
|
8
|
8
90201-05036-00 Washer, Plate |
90201-05036-00 |
from US $1.84 |
||
| replacement | |||||
|
8
|
8
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
9
|
9
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
9
|
9
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
