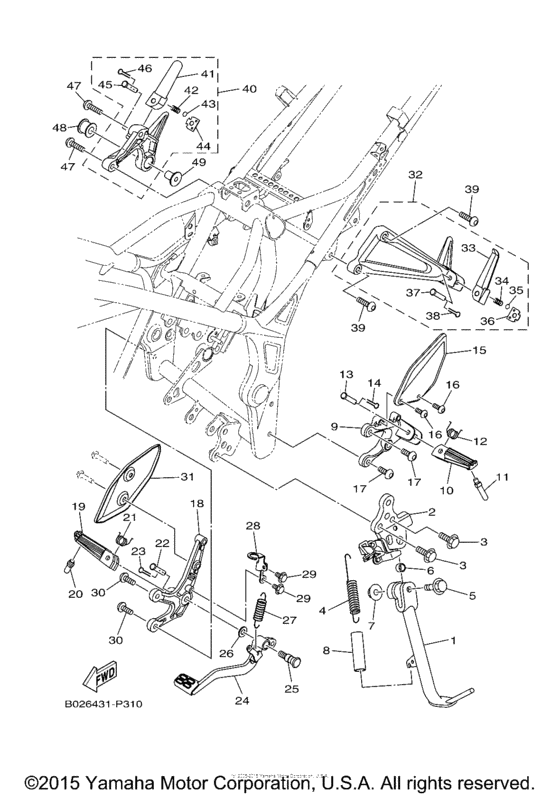

Stand & Footrest Diagram Yamaha YZF-R3
- Year
- 2015
- Model code
- 2MS1
- Sales region
- USA
- Engine Capacity
- 300
- Model
- YZF-R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1WD-F7311-00-00 Stand, Side |
1WD-F7311-00-00 |
from US $21.82 |
||
|
2
|
2
1WD-F7321-10-00 Bracket, Side Stand |
1WD-F7321-10-00 |
from US $102.69 |
||
|
3
|
3
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.07 |
||
|
4
|
4
905-06238-12-00 Spring, Tension |
905-06238-12-00 |
from US $13.37 |
||
|
5
|
5
901-05106-A7-00 Bolt, Flange |
901-05106-A7-00 |
from US $3.83 |
||
|
6
|
6
903-87100-10-00 Collar |
903-87100-10-00 |
from US $3.83 |
||
|
7
|
7
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
8
|
8
90445-217G3-00 Hose (L70) |
90445-217G3-00 |
from US $5.85 |
||
| replacement | |||||
|
8
|
8
90445-212G3-00 Hose (L95) |
90445-212G3-00 |
from US $9.74 |
||
|
9
|
9
1WD-F7442-00-00 Bracket 2 |
1WD-F7442-00-00 |
from US $33.33 |
||
| replacement | |||||
|
9
|
9
1WD-F7442-01-00 Bracket 2 |
1WD-F7442-01-00 |
from US $34.16 |
||
|
10
|
10
1WD-F7451-00-00 Footrest |
1WD-F7451-00-00 |
from US $16.58 |
||
|
11
|
11
1WD-F7435-00-00 Bolt |
1WD-F7435-00-00 |
from US $7.79 |
||
|
12
|
12
90508-183B9-00 Spring, Torsion |
90508-183B9-00 |
from US $2.55 |
||
|
13
|
13
90240-08145-00 Pin, Clevis |
90240-08145-00 |
from US $1.70 |
||
|
14
|
14
914-01250-15-00
Pin. Cotter
|
914-01250-15-00 |
— | ||
| replacement | |||||
|
14
|
14
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
15
|
15
2MS-F7445-00-00 Plate 1 |
2MS-F7445-00-00 |
from US $37.30 |
||
|
16
|
16
90111-06013-00 Bolt, Hex. Socket Button |
90111-06013-00 |
from US $1.56 |
||
|
17
|
17
90109-085G6-00 Bolt |
90109-085G6-00 |
from US $1.66 |
||
|
18
|
18
1WD-F7443-00-00 Bracket 3 |
1WD-F7443-00-00 |
from US $60.93 |
||
|
19
|
19
1WD-F7461-00-00 Footrest |
1WD-F7461-00-00 |
from US $16.58 |
||
|
20
|
20
1WD-F7435-00-00 Bolt |
1WD-F7435-00-00 |
from US $7.79 |
||
|
21
|
21
90508-183B9-00 Spring, Torsion |
90508-183B9-00 |
from US $2.55 |
||
|
22
|
22
90240-08145-00 Pin, Clevis |
90240-08145-00 |
from US $1.70 |
||
|
23
|
23
914-01250-15-00
Pin. Cotter
|
914-01250-15-00 |
— | ||
| replacement | |||||
|
23
|
23
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
24
|
24
1WD-F7211-00-00 Pedal, Brake |
1WD-F7211-00-00 |
from US $29.44 |
||
|
25
|
25
4BP-27261-00-00 Shaft |
4BP-27261-00-00 |
from US $8.36 |
||
| replacement | |||||
|
25
|
25
4BP-27261-10-00 Shaft |
4BP-27261-10-00 |
from US $8.36 |
||
|
26
|
26
90201-10021-00 Washer, Plate |
90201-10021-00 |
from US $4.96 |
||
|
27
|
27
905-06268-07-00 Spring, Tension |
905-06268-07-00 |
from US $1.98 |
||
|
28
|
28
1WD-F144G-00-00 Stay, Stop Switch |
1WD-F144G-00-00 |
from US $3.58 |
||
|
29
|
29
95802-06010-00 Bolt, Flange |
95802-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
29
|
29
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
29
|
29
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
30
|
30
90109-085G6-00 Bolt |
90109-085G6-00 |
from US $1.66 |
||
|
31
|
31
2MS-F7446-00-00 Plate 2 |
2MS-F7446-00-00 |
from US $29.95 |
||
|
32
|
32
1WD-F7430-00-00 Rear Footrest Assy 1 |
1WD-F7430-00-00 |
from US $79.30 |
||
| replacement | |||||
|
32
|
32
1WD-F7430-01-00 Rear Footrest Assy 1 |
1WD-F7430-01-00 |
from US $39.02 |
||
|
33
|
33
1WD-F7431-00-00 Footrest, Rear 1 |
1WD-F7431-00-00 |
from US $18.23 |
||
| replacement | |||||
|
33
|
33
1WD-F7431-01-00 Footrest, Rear 1 |
1WD-F7431-01-00 |
from US $18.28 |
||
|
34
|
34
90501-12743-00 Spring, Compression |
90501-12743-00 |
from US $1.84 |
||
|
35
|
35
935-01048-30-00 Ball |
935-01048-30-00 |
US $1.70 |
||
| replacements | |||||
|
35
|
35
3KA-WF055-00-00
Ball Set
|
3KA-WF055-00-00 |
— | ||
|
35
|
35
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
|
36
|
36
1WD-F7437-00-00 Washer, Special |
1WD-F7437-00-00 |
from US $0.90 |
||
|
37
|
37
90240-08145-00 Pin, Clevis |
90240-08145-00 |
from US $1.70 |
||
|
38
|
38
914-01250-15-00
Pin. Cotter
|
914-01250-15-00 |
— | ||
| replacement | |||||
|
38
|
38
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
39
|
39
90110-08071-00 Bolt, Hexagon Socket Head |
90110-08071-00 |
from US $3.83 |
||
|
40
|
40
1WD-F7440-00-00 Rear Footrest Assy 2 |
1WD-F7440-00-00 |
from US $79.30 |
||
| replacement | |||||
|
40
|
40
1WD-F7440-01-00 Rear Footrest Assy 2 |
1WD-F7440-01-00 |
from US $43.32 |
||
|
41
|
41
1WD-F7441-00-00 Footrest, Rear 2 |
1WD-F7441-00-00 |
from US $17.53 |
||
| replacement | |||||
|
41
|
41
1WD-F7441-01-00 Footrest, Rear 2 |
1WD-F7441-01-00 |
from US $14.90 |
||
|
42
|
42
90501-12743-00 Spring, Compression |
90501-12743-00 |
from US $1.84 |
||
|
43
|
43
935-01048-30-00 Ball |
935-01048-30-00 |
US $1.70 |
||
| replacements | |||||
|
43
|
43
3KA-WF055-00-00
Ball Set
|
3KA-WF055-00-00 |
— | ||
|
43
|
43
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
|
44
|
44
1WD-F7437-00-00 Washer, Special |
1WD-F7437-00-00 |
from US $0.90 |
||
|
45
|
45
90240-08145-00 Pin, Clevis |
90240-08145-00 |
from US $1.70 |
||
|
46
|
46
914-01250-15-00
Pin. Cotter
|
914-01250-15-00 |
— | ||
| replacement | |||||
|
46
|
46
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
47
|
47
90110-08071-00 Bolt, Hexagon Socket Head |
90110-08071-00 |
from US $3.83 |
||
|
48
|
48
5TP-E4747-00-00 Damper, Muffler |
5TP-E4747-00-00 |
from US $5.38 |
||
| replacement | |||||
|
48
|
48
4XV-27424-00-00 Damper, Muffler |
4XV-27424-00-00 |
from US $5.38 |
||
|
49
|
49
903-87088-13-00 Collar |
903-87088-13-00 |
from US $3.26 |
||
| replacement | |||||
|
49
|
49
90387-08812-00 Collar |
90387-08812-00 |
from US $3.26 |
||
