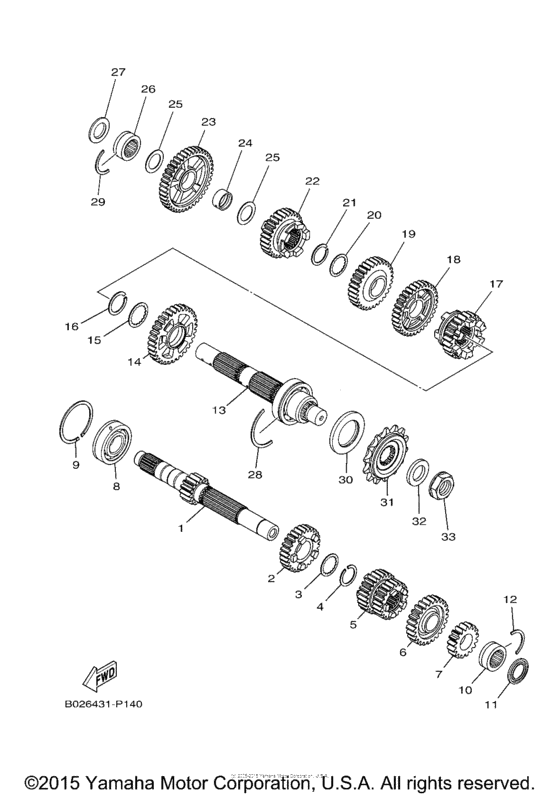

Transmission Diagram Yamaha YZF-R3
- Year
- 2015
- Model code
- 2MS1
- Sales region
- USA
- Engine Capacity
- 300
- Model
- YZF-R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2MS-E7411-00-00 Axle, Main (14T)14T |
2MS-E7411-00-00 |
from US $73.50 |
||
|
2
|
2
2MS-E7151-00-00 Gear, 5Th Pinion (25T)5TH PINION 25T |
2MS-E7151-00-00 |
from US $44.42 |
||
|
3
|
3
902-14220-08-00 Washer, Claw |
902-14220-08-00 |
from US $1.56 |
||
|
4
|
4
934-40242-00-00 Circlip |
934-40242-00-00 |
from US $1.42 |
||
|
5
|
5
2MS-E7131-00-00 Gear, 3Rd Pinion (23T/23T)3RD PINION 23T/23T |
2MS-E7131-00-00 |
from US $33.08 |
||
|
6
|
6
2MS-E7161-00-00 Gear, 6Th Pinion (30T)6TH PINION 30T |
2MS-E7161-00-00 |
from US $58.84 |
||
|
7
|
7
2MS-E7121-00-00 Gear, 2Nd Pinion (17T)2ND PINION 17T |
2MS-E7121-00-00 |
from US $13.24 |
||
|
8
|
8
933-06255-Y9-00 Bearing |
933-06255-Y9-00 |
from US $27.78 |
||
|
9
|
9
93440-52009-00 Circlip |
93440-52009-00 |
from US $3.98 |
||
|
10
|
10
933-11420-Y3-00 Bearing |
933-11420-Y3-00 |
from US $14.56 |
||
|
11
|
11
931-01208-02-00 Oil Seal |
931-01208-02-00 |
from US $4.30 |
||
|
12
|
12
278-17425-00-00 Circlip 2 |
278-17425-00-00 |
from US $2.32 |
||
|
13
|
13
1WD-E7402-00-00 Drive Axle Assy |
1WD-E7402-00-00 |
from US $114.06 |
||
|
14
|
14
2MS-E7221-00-00 Gear, 2Nd Wheel (31T)2ND WHEEL 21T |
2MS-E7221-00-00 |
from US $45.64 |
||
|
15
|
15
90209-25011-00 Washer |
90209-25011-00 |
from US $2 |
||
|
16
|
16
93440-28184-00 Circlip |
93440-28184-00 |
from US $2 |
||
|
17
|
17
2MS-E7261-00-00 Gear, 6Th Wheel (24T)6TH WHEEL 24T |
2MS-E7261-00-00 |
from US $23.48 |
||
|
18
|
18
2MS-E7231-00-00 Gear, 3Rd Wheel (31T)3RD WHEEL 31T |
2MS-E7231-00-00 |
from US $30.76 |
||
|
19
|
19
2MS-E7241-00-00 Gear, 4Th Wheel (25T)4TH WHEEL 25T |
2MS-E7241-00-00 |
from US $28.78 |
||
|
20
|
20
902-14220-08-00 Washer, Claw |
902-14220-08-00 |
from US $1.56 |
||
|
21
|
21
934-40242-00-00 Circlip |
934-40242-00-00 |
from US $1.42 |
||
|
22
|
22
2MS-E7251-00-00 Gear, 5Th Wheel (23T)5TH WHEEL 23T |
2MS-E7251-00-00 |
from US $23.48 |
||
|
23
|
23
2MS-E7211-00-00 Gear, 1St Wheel (35T)1ST WHEEL 35T |
2MS-E7211-00-00 |
from US $27.12 |
||
|
24
|
24
903-87208-14-00 Collar |
903-87208-14-00 |
from US $9.85 |
||
|
25
|
25
90201-20276-00 Washer, Plate (T=1.0) |
90201-20276-00 |
from US $1.56 |
||
|
26
|
26
933-11420-Y3-00 Bearing |
933-11420-Y3-00 |
from US $14.56 |
||
|
27
|
27
931-01208-02-00 Oil Seal |
931-01208-02-00 |
from US $4.30 |
||
|
28
|
28
1WD-17424-00-00 Circlip 1 |
1WD-17424-00-00 |
from US $1.98 |
||
|
29
|
29
278-17425-00-00 Circlip 2 |
278-17425-00-00 |
from US $2.32 |
||
|
30
|
30
931-02358-03-00 Oil Seal |
931-02358-03-00 |
from US $8.78 |
||
| replacement | |||||
|
30
|
30
93102-35808-00 Oil Seal |
93102-35808-00 |
from US $8.78 |
||
|
31
|
31
1WD-E7460-00-00 Sprocket, Drive (14T)14T |
1WD-E7460-00-00 |
from US $52.64 |
||
|
32
|
32
90201-20023-00 Washer, Plate |
90201-20023-00 |
from US $8.64 |
||
|
33
|
33
90179-20013-00 Nut |
90179-20013-00 |
from US $18.42 |
||
