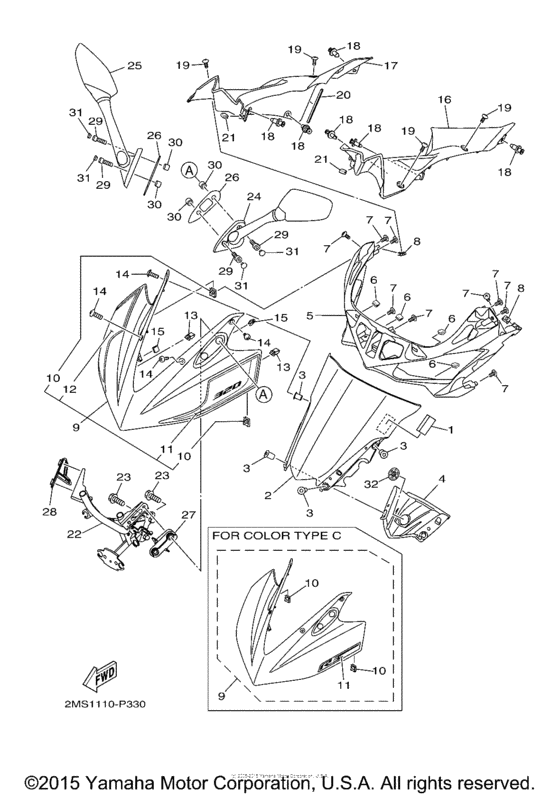

Windshield Diagram Yamaha YZF-R3
- Year
- 2015
- Model code
- 2MS1
- Sales region
- USA
- Engine Capacity
- 300
- Model
- YZF-R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1WD-F815K-10-00 Label, Notice Windshield 1 |
1WD-F815K-10-00 |
US $0.92 |
||
|
2
|
2
1WD-F8381-00-00 Windshield |
1WD-F8381-00-00 |
from US $123.52 |
||
|
3
|
3
90179-05849-00 Nut |
90179-05849-00 |
from US $2.99 |
||
| replacement | |||||
|
3
|
3
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
4
|
4
1WD-H3559-00-00 Cover, Meter |
1WD-H3559-00-00 |
from US $10.63 |
||
|
5
|
5
1WD-F835G-00-00 Body, Front Upper 1 |
1WD-F835G-00-00 |
from US $37.58 |
||
|
6
|
6
1WD-F8376-00-00 Trim |
1WD-F8376-00-00 |
from US $1.84 |
||
|
7
|
7
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
8
|
8
90183-050A7-00 Nut, Spring |
90183-050A7-00 |
from US $3.54 |
||
|
9
|
9
1WD-XF83F-40-P1 Body Cowling Sub AssyUR FOR DPBMC |
1WD-XF83F-40-P1 |
from US $49.91 |
||
|
9
|
9
1WD-XF83F-10-P0 Body Cowling Sub AssyUR FOR SMX |
1WD-XF83F-10-P0 |
from US $42.71 |
||
|
9
|
9
1WD-XF83F-20-P2 Body Cowling Sub AssyUR FOR VRC1 |
1WD-XF83F-20-P2 |
from US $62.17 |
||
|
10
|
10
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
10
|
10
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
11
|
11
2MS-F8391-00-00 Graphic 1UR FOR DPBMC |
2MS-F8391-00-00 |
from US $5.53 |
||
|
11
|
11
2MS-F8391-10-00 Graphic 1UR FOR VRC1 |
2MS-F8391-10-00 |
from US $0.94 |
||
|
12
|
12
1WD-F8392-00-00 Graphic 2FOR DPBMC |
1WD-F8392-00-00 |
from US $2.41 |
||
|
13
|
13
44D-F8379-00-00 Hook |
44D-F8379-00-00 |
from US $4.11 |
||
|
14
|
14
90150-05023-00 Screw, Round Head |
90150-05023-00 |
from US $1.66 |
||
|
15
|
15
1WD-F8376-00-00 Trim |
1WD-F8376-00-00 |
from US $1.84 |
||
|
16
|
16
1WD-F836N-00-00 Panel, Inner 4 |
1WD-F836N-00-00 |
from US $13.50 |
||
|
17
|
17
1WD-F836R-00-00 Panel, Inner 5 |
1WD-F836R-00-00 |
from US $25.79 |
||
|
18
|
18
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.34 |
||
|
19
|
19
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
20
|
20
1WD-F1278-00-00 Mold |
1WD-F1278-00-00 |
from US $0.83 |
||
|
21
|
21
1WD-F8376-00-00 Trim |
1WD-F8376-00-00 |
from US $1.84 |
||
|
22
|
22
1WD-F8356-00-00 Stay 1 |
1WD-F8356-00-00 |
from US $47.84 |
||
|
23
|
23
95812-08035-00 Bolt, Flange |
95812-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
23
|
23
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.07 |
||
|
24
|
24
1WD-F6280-10-00 Rear View Mirror Assy (Left) |
1WD-F6280-10-00 |
from US $93.81 |
||
|
25
|
25
1WD-F6290-10-00 Rear View Mirror Assy (Right) |
1WD-F6290-10-00 |
from US $93.81 |
||
|
26
|
26
1WD-F8483-00-00 Plate, Rubber 1 |
1WD-F8483-00-00 |
from US $3.54 |
||
|
27
|
27
1WD-F8484-00-00 Plate, Rubber 2 |
1WD-F8484-00-00 |
from US $5.24 |
||
|
28
|
28
1WD-F8485-00-00 Plate, Rubber 3 |
1WD-F8485-00-00 |
from US $5.24 |
||
|
29
|
29
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
30
|
30
903-87068-C2-00 Collar |
903-87068-C2-00 |
from US $1.42 |
||
|
31
|
31
903-38050-10-00 Plug |
903-38050-10-00 |
from US $1.28 |
||
|
32
|
32
1PA-F836B-00-00 Tuning Fork Mark |
1PA-F836B-00-00 |
from US $11.05 |
||
| replacement | |||||
|
32
|
32
1PA-F836B-01-00 |
1PA-F836B-01-00 |
from US $11.05 |
||
