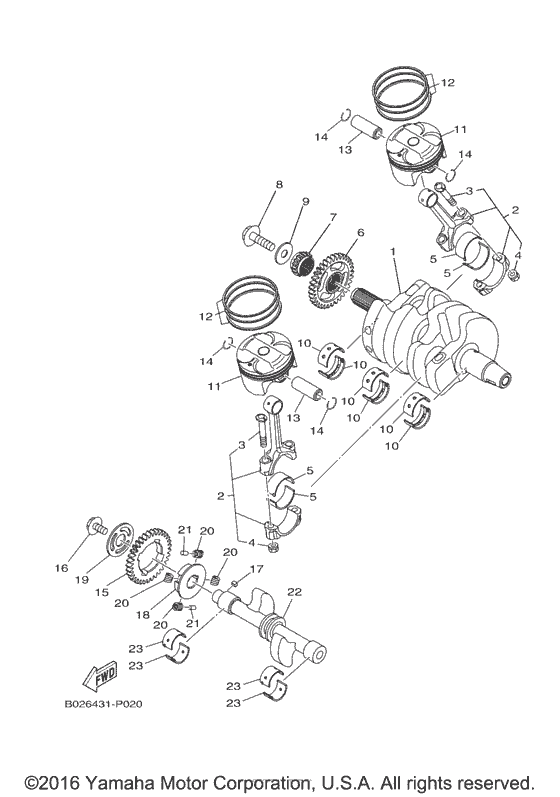

Crankshaft & Piston Diagram Yamaha YZF-R3
- Year
- 2016
- Model code
- 2MS3
- Sales region
- USA
- Model
- YZF-R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1WD-11411-00-00 Crankshaft |
1WD-11411-00-00 |
from US $451.37 |
||
| replacements | |||||
|
1
|
1
1WD-E1411-00-00 CRANKSHAFT |
1WD-E1411-00-00 |
from US $469.71 |
||
|
1
|
1
1WD-E1411-10-00 CRANKSHAFT |
1WD-E1411-10-00 |
from US $579.35 |
||
|
2
|
2
1WD-11650-00-00 Connecting Rod Assy |
1WD-11650-00-00 |
from US $116.47 |
||
|
3
|
3
5SL-11654-00-00 Bolt, Connecting Rod |
5SL-11654-00-00 |
from US $2.98 |
||
|
4
|
4
90179-07652-00 Nut |
90179-07652-00 |
from US $2.13 |
||
|
5
|
5
1WD-11656-20-00 Plane Bearing, Connecting RodUR BROWN |
1WD-11656-20-00 |
from US $9.35 |
||
|
5
|
5
1WD-11656-00-00 Plane Bearing, Connecting RodUR BLUE |
1WD-11656-00-00 |
from US $9.35 |
||
|
5
|
5
1WD-11656-10-00 Plane Bearing, Connecting RodUR BLACK |
1WD-11656-10-00 |
from US $9.35 |
||
|
5
|
5
1WD-11656-30-00 Plane Bearing, Connecting RodUR GREEN |
1WD-11656-30-00 |
from US $9.35 |
||
|
6
|
6
1WD-E1536-00-00 Gear, Drive |
1WD-E1536-00-00 |
from US $63.14 |
||
|
7
|
7
1WD-E1549-00-00 Sprocket, Cam Chain |
1WD-E1549-00-00 |
from US $11.58 |
||
|
8
|
8
901-05108-83-00 Bolt, Flange |
901-05108-83-00 |
from US $23.94 |
||
|
9
|
9
902-01102-R1-00
Washer, Plate
|
902-01102-R1-00 |
— | ||
| replacement | |||||
|
9
|
9
90201-105A2-00 Washer, Plate (4X7) |
90201-105A2-00 |
from US $1.70 |
||
|
10
|
10
1WD-11416-40-00 Plane Bearing, Crankshaft 1UR YELLOW |
1WD-11416-40-00 |
from US $5.95 |
||
|
10
|
10
1WD-11416-30-00 Plane Bearing, Crankshaft 1UR GREEN |
1WD-11416-30-00 |
from US $5.95 |
||
|
10
|
10
1WD-11416-20-00 Plane Bearing, Crankshaft 1UR BROWN |
1WD-11416-20-00 |
from US $5.95 |
||
|
10
|
10
1WD-11416-10-00 Plane Bearing, Crankshaft 1UR BLACK |
1WD-11416-10-00 |
from US $5.95 |
||
|
10
|
10
1WD-11416-00-00 Plane Bearing, Crankshaft 1UR BLUE |
1WD-11416-00-00 |
from US $5.95 |
||
|
11
|
11
2MS-E1631-00-00 Piston (Std) |
2MS-E1631-00-00 |
from US $122.47 |
||
|
12
|
12
2MS-E1603-00-00 Piston Ring Set (Std) |
2MS-E1603-00-00 |
from US $30.61 |
||
| replacement | |||||
|
12
|
12
BR5-E1603-00-00 Piston Ring Set (Std) |
BR5-E1603-00-00 |
from US $32.73 |
||
|
13
|
13
1WD-E1633-00-00 Pin, Piston |
1WD-E1633-00-00 |
from US $10.48 |
||
|
14
|
14
93450-16068-00 Circlip |
93450-16068-00 |
from US $1.34 |
||
|
15
|
15
1WD-E1531-00-00 Gear, Balance Weight |
1WD-E1531-00-00 |
from US $73.08 |
||
|
16
|
16
901-05088-F8-00 Bolt, Flange |
901-05088-F8-00 |
from US $15.73 |
||
|
17
|
17
90282-04036-00 Key, Straight |
90282-04036-00 |
from US $4.11 |
||
|
18
|
18
1WD-E1496-00-00 Boss, Buffer |
1WD-E1496-00-00 |
from US $14.85 |
||
|
19
|
19
902-01168-12-00 Washer, Plate |
902-01168-12-00 |
from US $3.83 |
||
|
20
|
20
905-01228-00-00 Spring, Compression |
905-01228-00-00 |
from US $1.42 |
||
|
21
|
21
93605-10090-00 Pin, Dowel |
93605-10090-00 |
from US $1.84 |
||
|
22
|
22
1WD-E1454-00-00 Weight 1 |
1WD-E1454-00-00 |
from US $150.10 |
||
|
23
|
23
1WD-11413-00-00 Metal, Balance WeightUR BLUE |
1WD-11413-00-00 |
from US $5.10 |
||
|
23
|
23
1WD-11413-20-00 Metal, Balance WeightUR BROWN |
1WD-11413-20-00 |
from US $5.10 |
||
|
23
|
23
1WD-11413-30-00 Metal, Balance WeightUR GREEN |
1WD-11413-30-00 |
from US $5.10 |
||
|
23
|
23
1WD-11413-40-00 Metal, Balance WeightUR YELLOW |
1WD-11413-40-00 |
from US $5.10 |
||
|
23
|
23
1WD-11413-10-00 Metal, Balance WeightUR BLACK |
1WD-11413-10-00 |
from US $5.10 |
||
