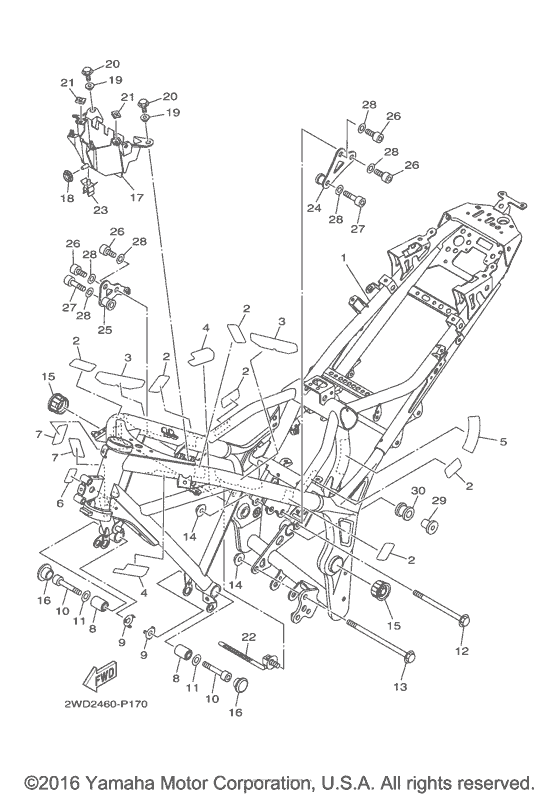

Frame Diagram Yamaha YZF-R3
- Year
- 2016
- Model code
- 2MS3
- Sales region
- USA
- Model
- YZF-R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1WD-F1110-11-00
Frame Comp
|
1WD-F1110-11-00 |
— | ||
| replacement | |||||
|
1
|
1
1WD-F1110-13-00 Frame |
1WD-F1110-13-00 |
from US $671.74 |
||
|
2
|
2
1WD-F113B-00-00 Damper |
1WD-F113B-00-00 |
from US $1.66 |
||
|
3
|
3
1WD-F112C-00-00 Damper 2 |
1WD-F112C-00-00 |
from US $2.93 |
||
|
4
|
4
1WD-F117G-00-00 Protector |
1WD-F117G-00-00 |
from US $4.03 |
||
|
5
|
5
1WD-F1652-00-00 Protector |
1WD-F1652-00-00 |
from US $7.51 |
||
|
6
|
6
1WD-F193A-00-00 Protector |
1WD-F193A-00-00 |
from US $2.27 |
||
|
7
|
7
5D9-F414G-00-00 Seal |
5D9-F414G-00-00 |
from US $1.28 |
||
|
8
|
8
1WD-F2123-00-00 Bush 1 |
1WD-F2123-00-00 |
from US $15.16 |
||
| replacement | |||||
|
8
|
8
90388-10816-00 Damper |
90388-10816-00 |
from US $15.02 |
||
|
9
|
9
1WD-F191B-00-00 Plate 1 |
1WD-F191B-00-00 |
from US $5.10 |
||
|
10
|
10
91317-10060-00 Bolt |
91317-10060-00 |
from US $5.67 |
||
|
11
|
11
92902-10200-00 Washer, Plain |
92902-10200-00 |
US $1.07 |
||
| replacement | |||||
|
11
|
11
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.07 |
||
|
12
|
12
901-05108-89-00 Bolt, Flange |
901-05108-89-00 |
from US $5.35 |
||
|
13
|
13
901-05108-91-00 Bolt, Flange |
901-05108-91-00 |
from US $6.19 |
||
|
14
|
14
901-79108-05-00 Nut |
901-79108-05-00 |
from US $2.63 |
||
|
15
|
15
1WD-F135F-00-00 Cover |
1WD-F135F-00-00 |
from US $3.40 |
||
|
16
|
16
903-38238-01-00 Plug |
903-38238-01-00 |
from US $1.46 |
||
|
17
|
17
1WD-F1171-00-00 Box |
1WD-F1171-00-00 |
from US $15.30 |
||
|
18
|
18
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
18
|
18
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
19
|
19
903-87078-19-00 Collar |
903-87078-19-00 |
from US $1.42 |
||
|
20
|
20
950-22060-14-00 Bolt, Flange |
950-22060-14-00 |
from US $1.34 |
||
|
21
|
21
901-83068-18-00 Nut, Spring |
901-83068-18-00 |
from US $0.71 |
||
|
22
|
22
904-64300-09-00 Clamp |
904-64300-09-00 |
from US $2.69 |
||
|
23
|
23
904-64120-15-00 Clamp |
904-64120-15-00 |
from US $1.04 |
||
|
24
|
24
1WD-F122A-00-00 Stay 1 |
1WD-F122A-00-00 |
from US $8.59 |
||
|
25
|
25
1WD-F122B-00-00 Stay 2 |
1WD-F122B-00-00 |
from US $10.69 |
||
|
26
|
26
91317-10020-00 Bolt, Socket |
91317-10020-00 |
from US $1.56 |
||
|
27
|
27
91317-10045-00 Bolt |
91317-10045-00 |
from US $4.11 |
||
| replacement | |||||
|
27
|
27
91312-10045-00 Bolt |
91312-10045-00 |
from US $3.26 |
||
|
28
|
28
92907-10600-00 Washer, Plate |
92907-10600-00 |
from US $1.07 |
||
|
29
|
29
903-87088-13-00 Collar |
903-87088-13-00 |
from US $3.26 |
||
| replacement | |||||
|
29
|
29
90387-08812-00 Collar |
90387-08812-00 |
from US $3.26 |
||
|
30
|
30
5TP-E4747-00-00 Damper, Muffler |
5TP-E4747-00-00 |
from US $5.38 |
||
| replacement | |||||
|
30
|
30
4XV-27424-00-00 Damper, Muffler |
4XV-27424-00-00 |
from US $5.38 |
||
