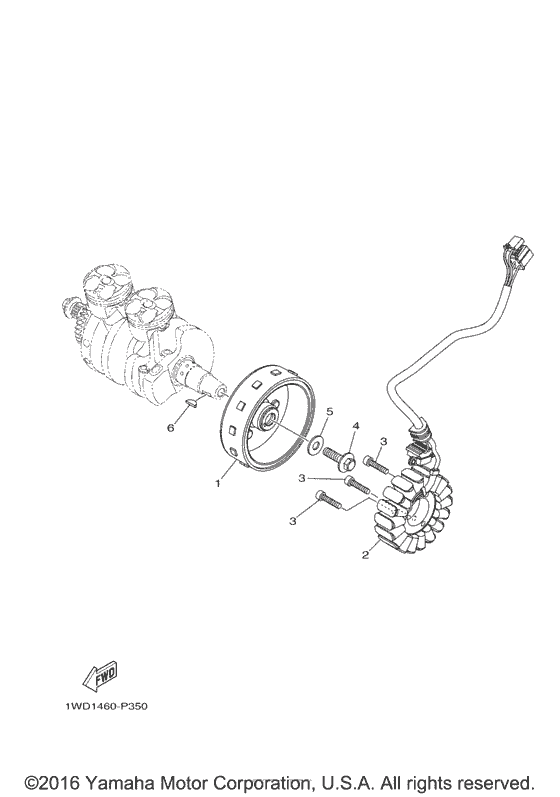

Generator Diagram Yamaha YZF-R3
- Year
- 2016
- Model code
- 2MS3
- Sales region
- USA
- Model
- YZF-R3
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1WD-H1450-00-00 Rotor Assy |
1WD-H1450-00-00 |
from US $110.57 |
||
|
2
|
2
1WD-H1410-01-00 Stator Assy |
1WD-H1410-01-00 |
from US $222.08 |
||
|
3
|
3
913-12060-30-00
Bolt
|
913-12060-30-00 |
— | ||
| replacement | |||||
|
3
|
3
90110-06138-00 Bolt |
90110-06138-00 |
from US $0.99 |
||
|
4
|
4
901-05108-83-00 Bolt, Flange |
901-05108-83-00 |
from US $23.94 |
||
|
5
|
5
902-01102-R1-00
Washer, Plate
|
902-01102-R1-00 |
— | ||
| replacement | |||||
|
5
|
5
90201-105A2-00 Washer, Plate (4X7) |
90201-105A2-00 |
from US $1.70 |
||
|
6
|
6
902-80050-13-00
Key, Woodruff
|
902-80050-13-00 |
— | ||
| replacement | |||||
|
6
|
6
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.35 |
||
