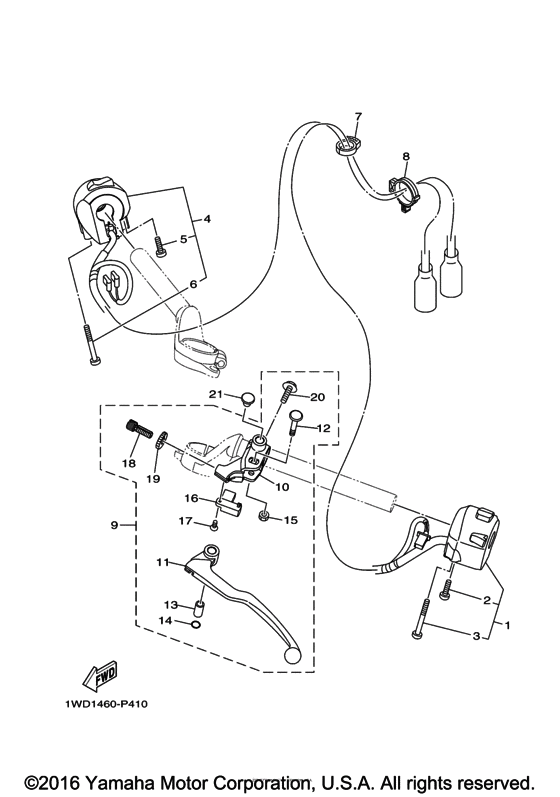

Handle switch & lever Diagram Yamaha YZF-R3
- Year
- 2016
- Model code
- 2MS3
- Sales region
- USA
- Model
- YZF-R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1WD-H3972-00-00 Switch, Handle 4 |
1WD-H3972-00-00 |
from US $115.50 |
||
|
2
|
2
1WD-H2133-00-00 Screw, Fitting |
1WD-H2133-00-00 |
from US $1.26 |
||
|
3
|
3
1WD-H395W-00-00 Screw, Switch Fitting |
1WD-H395W-00-00 |
from US $2.38 |
||
|
4
|
4
1WD-H3975-00-00 Switch, Handle 2 |
1WD-H3975-00-00 |
from US $87.04 |
||
|
5
|
5
45P-H2133-00-00 Screw, Fitting |
45P-H2133-00-00 |
from US $0.79 |
||
|
6
|
6
45P-H395W-00-00 Screw, Switch Fitting |
45P-H395W-00-00 |
from US $0.79 |
||
|
7
|
7
90464-16003-00 Clamp |
90464-16003-00 |
from US $1.70 |
||
|
8
|
8
90464-30001-00 Clamp |
90464-30001-00 |
from US $1.84 |
||
|
9
|
9
1WD-H2910-00-00 Lever Holder Assy (Left) |
1WD-H2910-00-00 |
from US $113.98 |
||
|
10
|
10
1WD-H2911-00-00 Holder, Lever 1 |
1WD-H2911-00-00 |
from US $19.84 |
||
|
11
|
11
1WD-H3912-00-00 Lever 1 |
1WD-H3912-00-00 |
from US $9.60 |
||
|
12
|
12
31A-83945-00-00 Bolt, Lever |
31A-83945-00-00 |
from US $7.45 |
||
|
13
|
13
31A-83913-00-00 Collar, Lever 1 |
31A-83913-00-00 |
from US $10.48 |
||
|
14
|
14
932-10108-H5-00 O-Ring |
932-10108-H5-00 |
from US $3.40 |
||
| replacement | |||||
|
14
|
14
93210-10118-00 O-Ring |
93210-10118-00 |
from US $3.40 |
||
|
15
|
15
95602-06100-00 Nut, U |
95602-06100-00 |
from US $1.21 |
||
| replacement | |||||
|
15
|
15
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
16
|
16
5BP-H2917-00-00 Switch |
5BP-H2917-00-00 |
from US $19.91 |
||
| replacement | |||||
|
16
|
16
31A-82917-00-00 Switch |
31A-82917-00-00 |
US $56.81 |
||
|
17
|
17
901-51030-05-00 Screw, Countersunk |
901-51030-05-00 |
from US $2.27 |
||
| replacement | |||||
|
17
|
17
98707-03008-00 Screw, Flat Head |
98707-03008-00 |
from US $2.27 |
||
|
18
|
18
90123-08083-00 Bolt |
90123-08083-00 |
from US $3.40 |
||
| replacements | |||||
|
18
|
18
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
|
18
|
18
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
19
|
19
90179-08316-00 Nut |
90179-08316-00 |
from US $4.55 |
||
| replacements | |||||
|
19
|
19
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
|
19
|
19
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
20
|
20
97507-06525-00 Bolt, With Washer |
97507-06525-00 |
from US $1.40 |
||
| replacement | |||||
|
20
|
20
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
21
|
21
90338-09012-00 Plug |
90338-09012-00 |
from US $3.12 |
||
