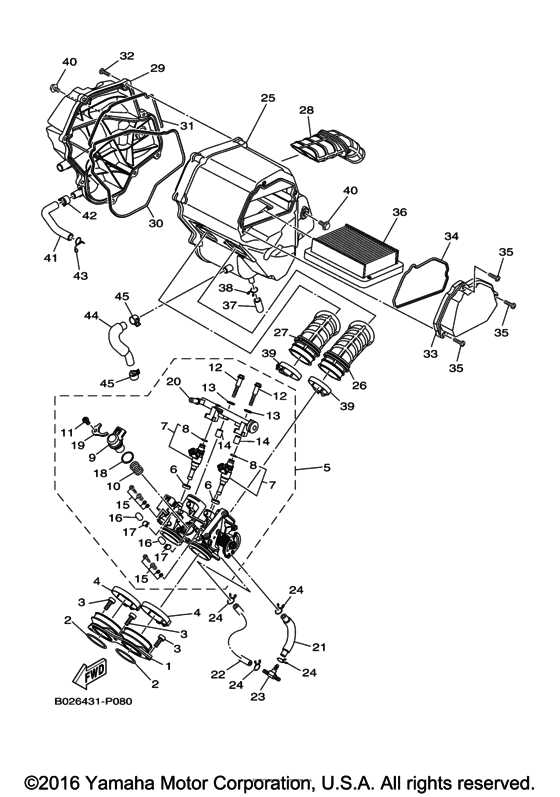

Intake Diagram Yamaha YZF-R3
- Year
- 2016
- Model code
- 2MS3
- Sales region
- USA
- Model
- YZF-R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2MS-E3586-00-00 Joint, Carburetor 1 |
2MS-E3586-00-00 |
from US $67.01 |
||
|
2
|
2
932-10398-02-00 O-Ring |
932-10398-02-00 |
from US $6.80 |
||
| replacement | |||||
|
2
|
2
93210-39700-00 O-Ring |
93210-39700-00 |
from US $6.80 |
||
|
3
|
3
91312-06016-00 Bolt |
91312-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
3
|
3
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.04 |
||
|
4
|
4
904-50558-04-00 Hose Clamp Assy |
904-50558-04-00 |
from US $4.12 |
||
|
5
|
5
2MS-E3750-00-00 Throttle Body Assy |
2MS-E3750-00-00 |
US $498.53 |
||
| replacement | |||||
|
5
|
5
2MS-E3750-01-00 Throttle Body Assy |
2MS-E3750-01-00 |
US $461.38 |
||
|
6
|
6
1WD-E3556-00-00 Gasket |
1WD-E3556-00-00 |
from US $4.03 |
||
|
7
|
7
1WD-E3761-00-00 Injector |
1WD-E3761-00-00 |
from US $54.22 |
||
|
8
|
8
5PS-14147-00-00 O-Ring |
5PS-14147-00-00 |
from US $10.06 |
||
|
9
|
9
1WS-85801-00-00 Motor Assy |
1WS-85801-00-00 |
from US $157.50 |
||
|
10
|
10
1WS-14335-00-00 Spring, Plunger |
1WS-14335-00-00 |
from US $4.39 |
||
|
11
|
11
985-02060-12-00
Screw, Pan Head
|
985-02060-12-00 |
— | ||
| replacement | |||||
|
11
|
11
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
12
|
12
1WD-E3573-00-00 Bolt 1 |
1WD-E3573-00-00 |
from US $3.40 |
||
|
13
|
13
8GL-13571-00-00 Washer |
8GL-13571-00-00 |
from US $1.70 |
||
|
14
|
14
8HG-14534-00-00 Collar |
8HG-14534-00-00 |
from US $5.95 |
||
|
15
|
15
5JW-14104-00-00 Air Screw Set |
5JW-14104-00-00 |
from US $15.87 |
||
|
16
|
16
895-14169-00-00 Cap |
895-14169-00-00 |
from US $4.11 |
||
|
17
|
17
8A7-14139-00-00 Clip, Pipe |
8A7-14139-00-00 |
from US $3.40 |
||
|
18
|
18
54P-E416A-00-00 O-Ring |
54P-E416A-00-00 |
from US $1.98 |
||
|
19
|
19
1WD-E4243-00-00 Plate |
1WD-E4243-00-00 |
from US $2.63 |
||
|
20
|
20
1WD-E3938-00-00 Pipe |
1WD-E3938-00-00 |
from US $88.07 |
||
|
21
|
21
2MS-E4465-00-00 Pipe |
2MS-E4465-00-00 |
from US $18.56 |
||
|
22
|
22
2MS-E4466-00-00 Pipe |
2MS-E4466-00-00 |
from US $16.01 |
||
|
23
|
23
90413-06031-00 Way 3 |
90413-06031-00 |
from US $7.51 |
||
|
24
|
24
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
25
|
25
1WD-E4411-00-00 Case, Air Cleaner 1 |
1WD-E4411-00-00 |
from US $82.90 |
||
|
26
|
26
2MS-E4469-00-00 Funnel, Air |
2MS-E4469-00-00 |
from US $15.73 |
||
|
27
|
27
2MS-E446C-00-00 Funnel 2 |
2MS-E446C-00-00 |
from US $7.79 |
||
|
28
|
28
1WD-E4437-00-00 Duct |
1WD-E4437-00-00 |
from US $12.49 |
||
|
29
|
29
2MS-E4412-00-00 Cap, Cleaner Case 1 |
2MS-E4412-00-00 |
from US $30.26 |
||
|
30
|
30
1WD-E4452-00-00 Seal |
1WD-E4452-00-00 |
from US $4.39 |
||
|
31
|
31
1WD-E4457-00-00 Seal |
1WD-E4457-00-00 |
from US $0.97 |
||
|
32
|
32
97702-50025-00 Screw, Tapping(2Jg) |
97702-50025-00 |
from US $1.42 |
||
| replacement | |||||
|
32
|
32
97707-50025-00 Screw, Tapping |
97707-50025-00 |
from US $1.42 |
||
|
33
|
33
1WD-E4422-00-00 Cap, Cleaner Case 2 |
1WD-E4422-00-00 |
from US $10.22 |
||
|
34
|
34
1WD-E4462-00-00 Seal |
1WD-E4462-00-00 |
from US $2.69 |
||
|
35
|
35
98902-05020-00 Screw, Bind |
98902-05020-00 |
from US $1.42 |
||
|
36
|
36
1WD-E4451-00-00 Element, Air Cleaner |
1WD-E4451-00-00 |
from US $18.86 |
||
|
37
|
37
52B-E443E-00-00 Pipe, Drain |
52B-E443E-00-00 |
from US $1.42 |
||
| replacement | |||||
|
37
|
37
5TL-E443E-00-00 Pipe, Drain |
5TL-E443E-00-00 |
from US $1.31 |
||
|
38
|
38
90467-110A3-00 Clip |
90467-110A3-00 |
from US $1.70 |
||
|
39
|
39
54P-E3474-00-00 Band |
54P-E3474-00-00 |
from US $7.93 |
||
|
40
|
40
95822-06010-00 Bolt, Flange |
95822-06010-00 |
from US $0.90 |
||
| replacements | |||||
|
40
|
40
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
40
|
40
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
41
|
41
1WD-E3543-01-00 Hose, Air |
1WD-E3543-01-00 |
from US $4.96 |
||
|
42
|
42
90467-13802-00 Clip |
90467-13802-00 |
from US $1.70 |
||
|
43
|
43
90467-12052-00 Clip |
90467-12052-00 |
from US $1.84 |
||
|
44
|
44
2MS-E5373-01-00 PIPE, BREATHER |
2MS-E5373-01-00 |
from US $7.65 |
||
|
45
|
45
90467-13802-00 Clip |
90467-13802-00 |
from US $1.70 |
||
