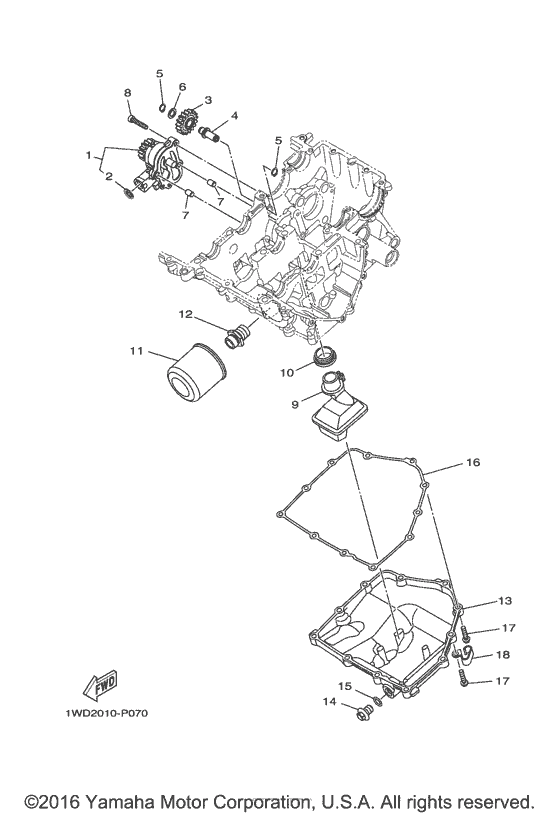

Oil pump Diagram Yamaha YZF-R3
- Year
- 2016
- Model code
- 2MS3
- Sales region
- USA
- Model
- YZF-R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1WD-E3300-00-00 Oil Pump Assy |
1WD-E3300-00-00 |
from US $125.03 |
||
| replacement | |||||
|
1
|
1
1WD-E3300-01-00 OIL PUMP ASSY |
1WD-E3300-01-00 |
from US $64.19 |
||
|
2
|
2
990-09155-00-00 Circlip |
990-09155-00-00 |
from US $2.13 |
||
|
3
|
3
1WD-E3341-00-00 Gear, Oil Pump Idle |
1WD-E3341-00-00 |
from US $18.42 |
||
|
4
|
4
1WD-E3342-00-00 Shaft, Idle Gear |
1WD-E3342-00-00 |
from US $18.56 |
||
|
5
|
5
99009-10400-00 Circlip |
99009-10400-00 |
from US $1.34 |
||
|
6
|
6
90201-10119-00 Washer, Plate |
90201-10119-00 |
from US $1.42 |
||
|
7
|
7
99530-08012-00 Pin, Dowel |
99530-08012-00 |
from US $1.07 |
||
|
8
|
8
913-12060-30-00
Bolt
|
913-12060-30-00 |
— | ||
| replacement | |||||
|
8
|
8
90110-06138-00 Bolt |
90110-06138-00 |
from US $0.99 |
||
|
9
|
9
1WD-E3410-00-00 Strainer Housing Assy |
1WD-E3410-00-00 |
from US $20.54 |
||
|
10
|
10
1WD-E3415-00-00 Seal, Oil Strainer |
1WD-E3415-00-00 |
from US $3.68 |
||
|
11
|
11
1WD-E3440-00-00 Element Assy, Oil Cleaner |
1WD-E3440-00-00 |
from US $15.88 |
||
| replacements | |||||
|
11
|
11
5GH-13440-50-00
Element Assy, Oil Cleaner
|
5GH-13440-50-00 |
— | ||
|
11
|
11
5GH-13440-60-00 OIL CLEANER ELEMENT ASSY |
5GH-13440-60-00 |
US $22.39 |
||
|
11
|
11
5GH-13440-61-00 ELEMENT ASSY, OIL CLEANER |
5GH-13440-61-00 |
from US $18.45 |
||
|
11
|
11
5GH-13440-80-00 Element Assy, Oil Cleaner |
5GH-13440-80-00 |
from US $21.50 |
||
|
12
|
12
904-01200-08-00 Bolt, Union |
904-01200-08-00 |
from US $9.35 |
||
|
13
|
13
1WD-E3417-00-00 Cover, Strainer |
1WD-E3417-00-00 |
from US $108.59 |
||
| replacement | |||||
|
13
|
13
1WD-E3417-01-00 Cover, Strainer |
1WD-E3417-01-00 |
US $38.50 |
||
|
14
|
14
90340-12808-00 Plug, Straight Screw |
90340-12808-00 |
from US $1.42 |
||
|
15
|
15
4YS-E1198-00-00 Gasket |
4YS-E1198-00-00 |
from US $1.84 |
||
|
16
|
16
1WD-E3414-00-00 Gasket, Strainer Cover |
1WD-E3414-00-00 |
from US $10.26 |
||
|
17
|
17
95022-06025-00 Bolt, Flange |
95022-06025-00 |
from US $1.42 |
||
|
18
|
18
904-62088-10-00 Clamp |
904-62088-10-00 |
from US $1.28 |
||
