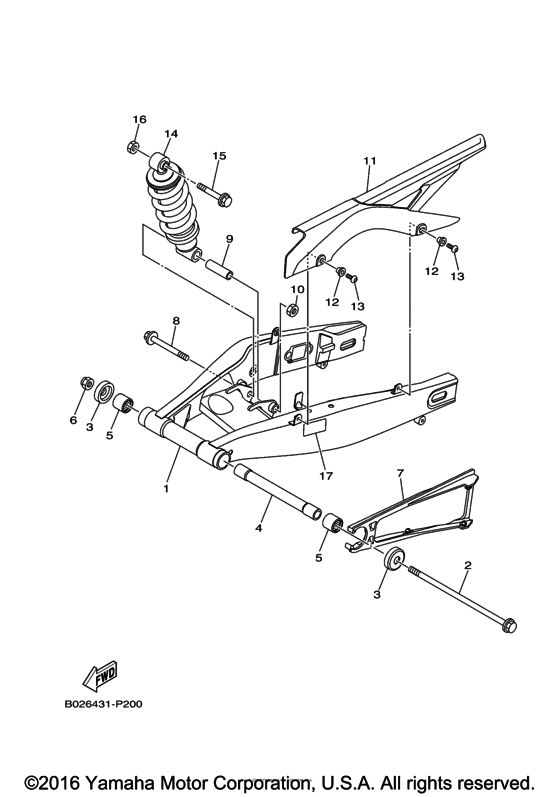

Rear arm & suspension Diagram Yamaha YZF-R3
- Year
- 2016
- Model code
- 2MS3
- Sales region
- USA
- Model
- YZF-R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1WD-F2110-00-00 Rear Arm Comp |
1WD-F2110-00-00 |
from US $301.99 |
||
|
2
|
2
1WD-22141-00-00 Shaft, Pivot |
1WD-22141-00-00 |
from US $36.20 |
||
|
3
|
3
1WD-F2129-00-00 Cover, Thrust 2 |
1WD-F2129-00-00 |
from US $8.08 |
||
| replacement | |||||
|
3
|
3
1WD-F2129-01-00 |
1WD-F2129-01-00 |
from US $6.77 |
||
|
4
|
4
1WD-F2184-00-00 Bush |
1WD-F2184-00-00 |
from US $59.55 |
||
|
5
|
5
93320-32403-00 Bearing |
93320-32403-00 |
from US $21.82 |
||
|
6
|
6
95602-14200-00 Nut, Self-Locking |
95602-14200-00 |
from US $7.51 |
||
| replacement | |||||
|
6
|
6
956-07142-00-00 Nut, Self-Locking |
956-07142-00-00 |
from US $7.48 |
||
|
7
|
7
1WD-F2151-00-00 Seal, Guard |
1WD-F2151-00-00 |
from US $14.59 |
||
|
8
|
8
90105-12309-00 Bolt, Washer Based |
90105-12309-00 |
from US $11.19 |
||
| replacement | |||||
|
8
|
8
90105-12689-00
Bolt, Flange
|
90105-12689-00 |
— | ||
|
9
|
9
1WD-F248B-00-00 Collar, Rod 1 |
1WD-F248B-00-00 |
from US $11.62 |
||
|
10
|
10
956-02121-00-00 Nut, U |
956-02121-00-00 |
from US $3.12 |
||
| replacement | |||||
|
10
|
10
95617-12100-00 Nut, U |
95617-12100-00 |
from US $3.12 |
||
|
11
|
11
1WD-F2311-00-00 Case, Chain |
1WD-F2311-00-00 |
from US $20.54 |
||
| replacement | |||||
|
11
|
11
1WD-F2311-01-00 Case, Chain |
1WD-F2311-01-00 |
from US $4.96 |
||
|
12
|
12
90387-06242-00 Collar |
90387-06242-00 |
from US $4.11 |
||
|
13
|
13
90111-06119-00 Bolt, Hex. Socket Button |
90111-06119-00 |
from US $1.56 |
||
|
14
|
14
1WD-F2210-00-00 Shock Absorber Assy, Rear |
1WD-F2210-00-00 |
from US $267.10 |
||
|
15
|
15
901-05120-93-00 Bolt, Flange |
901-05120-93-00 |
from US $2.34 |
||
| replacement | |||||
|
15
|
15
90105-12025-00 Bolt, Flange |
90105-12025-00 |
from US $7.08 |
||
|
16
|
16
956-02121-00-00 Nut, U |
956-02121-00-00 |
from US $3.12 |
||
| replacement | |||||
|
16
|
16
95617-12100-00 Nut, U |
95617-12100-00 |
from US $3.12 |
||
|
17
|
17
2MS-F1668-20-00 Label, Tire |
2MS-F1668-20-00 |
US $3.38 |
||
