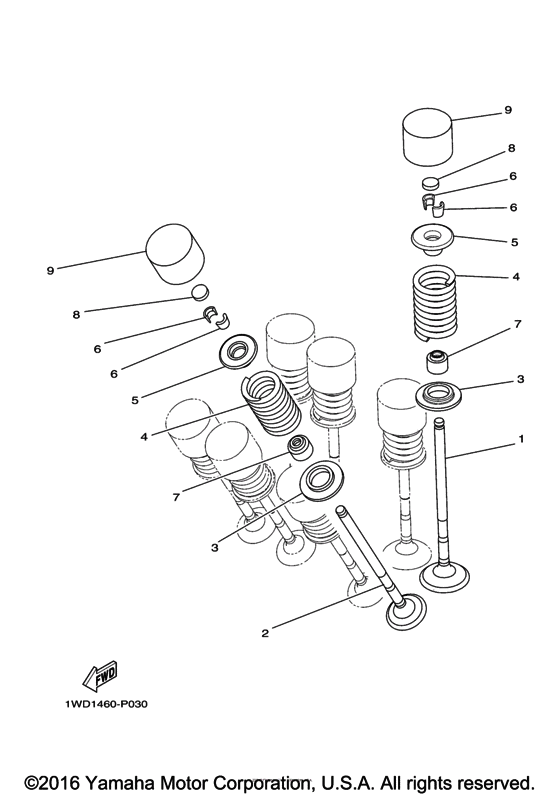

Valve Diagram Yamaha YZF-R3
- Year
- 2016
- Model code
- 2MS3
- Sales region
- USA
- Model
- YZF-R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2MS-E2111-00-00 Valve, Intake |
2MS-E2111-00-00 |
from US $18.56 |
||
|
2
|
2
2MS-E2121-00-00 Valve, Exhaust |
2MS-E2121-00-00 |
from US $38.43 |
||
|
3
|
3
2MS-E2126-00-00 Seat, Valve Spring 2 |
2MS-E2126-00-00 |
from US $1.66 |
||
|
4
|
4
2MS-E2113-00-00 Spring, Valve Inner |
2MS-E2113-00-00 |
from US $8.86 |
||
| replacement | |||||
|
4
|
4
BR5-E2113-00-00 Spring, Valve Inner |
BR5-E2113-00-00 |
from US $13.60 |
||
|
5
|
5
2MS-E2117-00-00 Retainer, Valve Spring |
2MS-E2117-00-00 |
from US $2.32 |
||
|
6
|
6
3S0-E2118-00-00 Lock, Valve Spring Retainer |
3S0-E2118-00-00 |
from US $1.84 |
||
| replacement | |||||
|
6
|
6
1WG-12118-00-00 Valve Spring Retainer Lock |
1WG-12118-00-00 |
from US $1.84 |
||
|
7
|
7
1PA-E2119-00-00 Seal, Valve Stem |
1PA-E2119-00-00 |
from US $1.34 |
||
|
8
|
8
1HX-12168-U1-00 Pad, Adjusting 2 (1.75)UR |
1HX-12168-U1-00 |
from US $6.62 |
||
|
8
|
8
1HX-12168-R1-00 Pad, Adjusting 2 (1.70)UR |
1HX-12168-R1-00 |
from US $6.62 |
||
|
8
|
8
1HX-12168-M1-00 Pad, Adjusting 2 (1.65)UR |
1HX-12168-M1-00 |
from US $7.62 |
||
|
8
|
8
1HX-12168-K1-00 Pad, Adjusting 2 (1.60)UR |
1HX-12168-K1-00 |
from US $8.78 |
||
|
8
|
8
1HX-12168-H1-00 Pad, Adjusting 2 (1.55)UR |
1HX-12168-H1-00 |
from US $6.30 |
||
|
8
|
8
1HX-12168-F0-00 Pad, Adjusting 2 (1.50)UR |
1HX-12168-F0-00 |
from US $6.30 |
||
|
8
|
8
1HX-12168-W1-00 Pad, Adjusting 2 (1.80)UR |
1HX-12168-W1-00 |
from US $6.30 |
||
|
8
|
8
1HX-12168-Y1-00 Pad, Adjusting 2 (1.85)UR |
1HX-12168-Y1-00 |
from US $8.28 |
||
|
8
|
8
1HX-12169-11-00 Pad, Adjusting 2 (1.90)UR |
1HX-12169-11-00 |
from US $6.62 |
||
|
8
|
8
1HX-12169-31-00 Pad, Adjusting 2 (1.95)UR |
1HX-12169-31-00 |
from US $6.96 |
||
|
8
|
8
1HX-12169-50-00 Pad, Adjusting 2 (2.00)UR |
1HX-12169-50-00 |
from US $8.78 |
||
|
8
|
8
1HX-12169-70-00 Pad, Adjusting 2 (2.05)UR |
1HX-12169-70-00 |
from US $8.78 |
||
|
8
|
8
1HX-12169-90-00 Pad, Adjusting 2 (2.10)UR |
1HX-12169-90-00 |
from US $8.78 |
||
|
8
|
8
1HX-12169-E0-00 Pad, Adjusting 2 (2.15)UR |
1HX-12169-E0-00 |
from US $8.78 |
||
|
8
|
8
1HX-12169-G0-00 Pad, Adjusting 2 (2.20)UR |
1HX-12169-G0-00 |
from US $8.78 |
||
|
8
|
8
1HX-12169-J0-00 Pad, Adjusting 2 (2.25)UR |
1HX-12169-J0-00 |
from US $8.78 |
||
|
8
|
8
1HX-12169-L0-00 Pad, Adjusting 2 (2.30)UR |
1HX-12169-L0-00 |
from US $8.78 |
||
|
8
|
8
1HX-12169-N0-00 Pad, Adjusting 2 (2.35)UR |
1HX-12169-N0-00 |
from US $8.78 |
||
|
8
|
8
1HX-12169-T0-00 Pad, Adjusting 2 (2.40)UR |
1HX-12169-T0-00 |
from US $8.78 |
||
|
9
|
9
2MS-12153-10-00 Lifter, Valve |
2MS-12153-10-00 |
from US $20.69 |
||
| replacements | |||||
|
9
|
9
2MS-E2153-10-00 LIFTER, VALVE |
2MS-E2153-10-00 |
from US $20.69 |
||
|
9
|
9
2MS-E2153-11-00 Lifter, Valve |
2MS-E2153-11-00 |
from US $20.69 |
||
