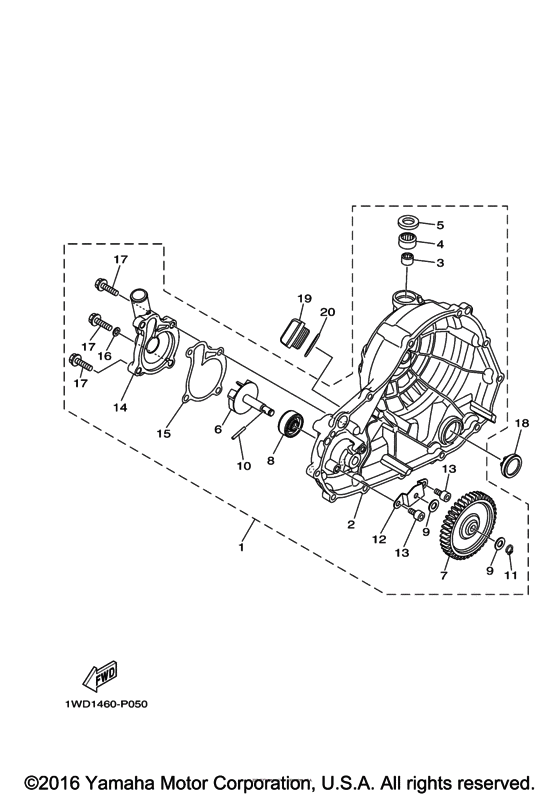

Water pump Diagram Yamaha YZF-R3
- Year
- 2016
- Model code
- 2MS3
- Sales region
- USA
- Model
- YZF-R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1WD-E2420-00-00 Water Pump Assy |
1WD-E2420-00-00 |
from US $196.06 |
||
|
2
|
2
1WD-E5421-00-00 Clutch Cover |
1WD-E5421-00-00 |
from US $62.16 |
||
|
3
|
3
93317-11096-00 Bearing |
93317-11096-00 |
from US $5.96 |
||
|
4
|
4
93315-21570-00 Bearing |
93315-21570-00 |
from US $6.96 |
||
|
5
|
5
931-02158-01-00 Oil Seal |
931-02158-01-00 |
from US $1.84 |
||
| replacement | |||||
|
5
|
5
93102-15805-00 OIL SEAL,SD-TYPE |
93102-15805-00 |
from US $1.84 |
||
|
6
|
6
1WD-E2450-00-00 Impeller Shaft Assy |
1WD-E2450-00-00 |
from US $11.92 |
||
|
7
|
7
1WD-E2453-00-00 Gear |
1WD-E2453-00-00 |
from US $43.66 |
||
|
8
|
8
33S-E2223-00-00 Seal |
33S-E2223-00-00 |
from US $54.02 |
||
|
9
|
9
33S-E2456-00-00 Washer |
33S-E2456-00-00 |
from US $1.28 |
||
|
10
|
10
1WD-E319L-00-00 Pin, Straight |
1WD-E319L-00-00 |
from US $1.33 |
||
|
11
|
11
99009-08400-00 Circlip |
99009-08400-00 |
from US $1.56 |
||
|
12
|
12
1WD-E2681-00-00 Plate |
1WD-E2681-00-00 |
from US $4.86 |
||
|
13
|
13
91312-06010-00 Bolt |
91312-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
91317-06010-00 Bolt |
91317-06010-00 |
from US $1.07 |
||
|
14
|
14
1WD-E2422-00-00 Cover, Housing |
1WD-E2422-00-00 |
from US $55.68 |
||
|
15
|
15
1WD-E2428-00-00 Gasket, Housing Cover 2 |
1WD-E2428-00-00 |
from US $2.66 |
||
|
16
|
16
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.28 |
||
|
17
|
17
95022-06025-00 Bolt, Flange |
95022-06025-00 |
from US $1.42 |
||
|
18
|
18
2H7-15361-00-00 Gauge, Level |
2H7-15361-00-00 |
from US $26.07 |
||
|
19
|
19
1WD-E5362-00-00 Plug, Oil Level |
1WD-E5362-00-00 |
from US $2.98 |
||
|
20
|
20
932-10278-07-00 O-Ring |
932-10278-07-00 |
from US $1.28 |
||
