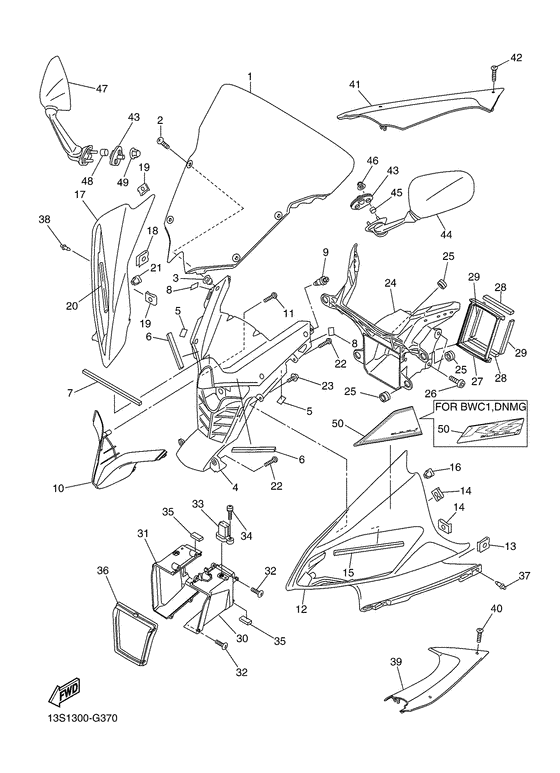

Cowling 1 Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2008
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 13S1
- Sales region
- Europe (General) (010)
- Базовая модель
- YZF-R6
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
13S-28381-00-00 Windshield |
13S-28381-00-00 |
US $84.14 |
||
|
02
|
02
90150-05023-00 Screw, Round Head |
90150-05023-00 |
from US $1.66 |
||
|
03
|
03
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
04
|
04
13S-2836K-00-00 Panel, Inner 1 |
13S-2836K-00-00 |
from US $26.64 |
||
|
05
|
05
3P6-28217-00-00 Damper 1 |
3P6-28217-00-00 |
from US $1.84 |
||
|
06
|
06
13S-28227-00-00 Damper 2 |
13S-28227-00-00 |
from US $1.34 |
||
|
07
|
07
13S-28237-00-00 Damper 3 |
13S-28237-00-00 |
from US $1.70 |
||
|
08
|
08
13S-28371-00-00 Damper |
13S-28371-00-00 |
from US $1.70 |
||
|
09
|
09
902-69060-46-00
Rivet
|
902-69060-46-00 |
— | ||
| replacement | |||||
|
09
|
09
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.34 |
||
|
10
|
10
13S-28365-00-P0 CoverMbl2 |
13S-28365-00-P0 |
from US $62.86 |
||
|
11
|
11
97702-40016-00 Screw, Tapping |
97702-40016-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
97707-40016-00 Screw, Tapping |
97707-40016-00 |
from US $1.42 |
||
|
12
|
12
13S-2835G-00-P0 Body, Front Upper 1Ur for dpbmc |
13S-2835G-00-P0 |
from US $142.30 |
||
|
12
|
12
13S-2835G-00-P1 Body, Front Upper 1Ur for bwc1 |
13S-2835G-00-P1 |
from US $142.30 |
||
|
12
|
12
13S-2835G-00-P2 Body, Front Upper 1Ur mbl2 for dnmg |
13S-2835G-00-P2 |
US $142.30 |
||
|
13
|
13
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
13
|
13
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
14
|
14
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
15
|
15
2C0-28455-00-00 Damper, 4 |
2C0-28455-00-00 |
from US $1.84 |
||
|
16
|
16
90480-01605-00 Grommet |
90480-01605-00 |
from US $1.34 |
||
|
17
|
17
13S-2835H-00-P0 Body, Front Upper 2Ur for dpbmc |
13S-2835H-00-P0 |
from US $142.30 |
||
|
17
|
17
13S-2835H-00-P1 Body, Front Upper 2Ur for bwc1 |
13S-2835H-00-P1 |
from US $142.30 |
||
|
17
|
17
13S-2835H-00-P2 Body, Front Upper 2Ur mbl2 for dnmg |
13S-2835H-00-P2 |
US $142.30 |
||
|
18
|
18
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
18
|
18
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
19
|
19
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
20
|
20
2C0-28455-00-00 Damper, 4 |
2C0-28455-00-00 |
from US $1.84 |
||
|
21
|
21
90480-01605-00 Grommet |
90480-01605-00 |
from US $1.34 |
||
|
22
|
22
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
22
|
22
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
23
|
23
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
24
|
24
13S-28356-00-00 Stay 1 |
13S-28356-00-00 |
from US $245.92 |
||
|
25
|
25
4XV-83513-00-00 Damper |
4XV-83513-00-00 |
from US $1.84 |
||
|
26
|
26
901-11060-38-00 Bolt, Hex. Socket Button |
901-11060-38-00 |
from US $1.70 |
||
|
27
|
27
2C0-28342-01-00 Joint |
2C0-28342-01-00 |
from US $4.11 |
||
| replacement | |||||
|
27
|
27
2C0-28342-02-00 JOINT |
2C0-28342-02-00 |
from US $4.11 |
||
|
28
|
28
2C0-28217-00-00 Damper 1 |
2C0-28217-00-00 |
from US $1.70 |
||
|
29
|
29
2C0-28227-00-00 Damper 2 |
2C0-28227-00-00 |
from US $1.70 |
||
|
30
|
30
13S-2838R-00-00 Duct 2 |
13S-2838R-00-00 |
from US $7.65 |
||
|
31
|
31
13S-2838T-00-00 Duct 3 |
13S-2838T-00-00 |
US $7.65 |
||
| replacement | |||||
|
31
|
31
13S-2838T-01-00 Duct 3 |
13S-2838T-01-00 |
US $13.46 |
||
|
32
|
32
97702-40016-00 Screw, Tapping |
97702-40016-00 |
from US $1.42 |
||
| replacement | |||||
|
32
|
32
97707-40016-00 Screw, Tapping |
97707-40016-00 |
from US $1.42 |
||
|
33
|
33
8FP-85886-00-00 Sensor, Air Temperature |
8FP-85886-00-00 |
from US $22.81 |
||
|
34
|
34
97702-50116-00 Screw, Tapping |
97702-50116-00 |
from US $1.42 |
||
| replacement | |||||
|
34
|
34
97780-50116-00 Screw, Tapping |
97780-50116-00 |
from US $1.42 |
||
|
35
|
35
51Y-21639-00-00 Damper 2 |
51Y-21639-00-00 |
from US $1.84 |
||
|
36
|
36
2C0-28371-00-00 Damper |
2C0-28371-00-00 |
from US $13.60 |
||
|
37
|
37
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
38
|
38
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
39
|
39
13S-2837L-00-00 Panel, Console 1 |
13S-2837L-00-00 |
from US $13.60 |
||
|
40
|
40
90111-05021-00 Bolt,hex. Socket Button |
90111-05021-00 |
from US $1.34 |
||
|
41
|
41
13S-2837M-00-00 Panel, Console 2 |
13S-2837M-00-00 |
from US $11.58 |
||
|
42
|
42
90111-05021-00 Bolt,hex. Socket Button |
90111-05021-00 |
from US $1.34 |
||
|
43
|
43
13S-26298-00-00 Plate, Mirror Fitting 1 |
13S-26298-00-00 |
from US $4.25 |
||
|
44
|
44
13S-26280-00-00 Rear View Mirror Assy (Left) |
13S-26280-00-00 |
from US $115.64 |
||
|
45
|
45
90387-064T3-00 Collar |
90387-064T3-00 |
from US $1.34 |
||
|
46
|
46
90176-06008-00 Nut, Crown |
90176-06008-00 |
from US $1.70 |
||
|
47
|
47
13S-26290-00-00 Rear View Mirror Assy (Right) |
13S-26290-00-00 |
from US $115.64 |
||
|
48
|
48
90387-064T3-00 Collar |
90387-064T3-00 |
from US $1.34 |
||
|
49
|
49
90176-06008-00 Nut, Crown |
90176-06008-00 |
from US $1.70 |
||
|
50
|
50
13S-28328-00-00 EmblemUr for bwc1 |
13S-28328-00-00 |
US $18.28 |
||
|
50
|
50
13S-28328-10-00 EmblemUr for dnmg |
13S-28328-10-00 |
US $18.28 |
||
|
50
|
50
13S-2832L-00-00 Graphic, 13Ur for dpbmc |
13S-2832L-00-00 |
US $35.56 |
||
