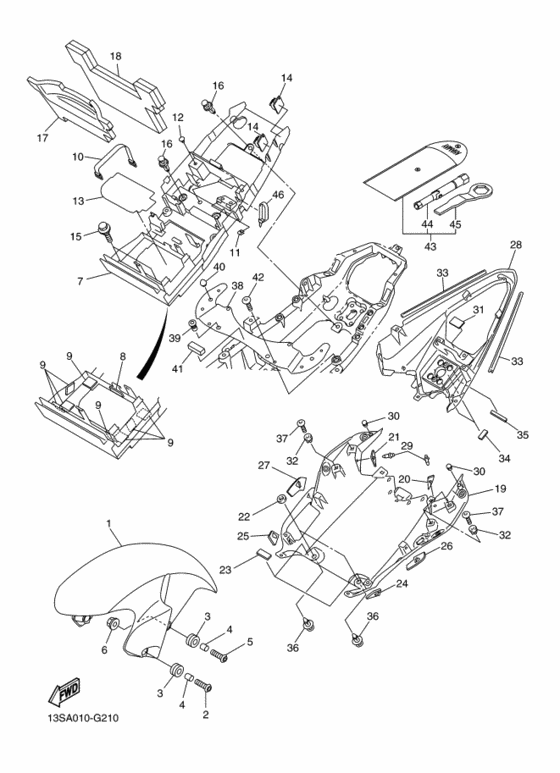

Fender Diagram Yamaha YZF-R6/ YZF600 R6 RaceBase
- Year
- 2008
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 13SA
- Sales region
- Japan (010)
- Базовая модель
- YZF-R6
- Engine Capacity
- 600
- Color Variant
- A
- Note
- 競技用モデル
- Model
- YZF-R6R (RaceBase)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2C0-21511-00-P2 Fender, FrontＳＭＸ |
2C0-21511-00-P2 |
from US $122.82 |
||
| replacement | |||||
|
1
|
1
2C0-21511-01-P2 ＳＭＸ |
2C0-21511-01-P2 |
US $224.62 |
||
|
2
|
2
90111-06043-00 Bolt, Hex. Socket Button |
90111-06043-00 |
from US $1.84 |
||
|
3
|
3
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
4
|
4
90387-06057-00 Collarカラー; |
90387-06057-00 |
from US $2.55 |
||
|
5
|
5
90111-06030-00 Bolt, Hex. Socket Button |
90111-06030-00 |
from US $2.69 |
||
|
6
|
6
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
6
|
6
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
7
|
7
13S-8212B-00-00 Box, Battery 1ボツクス，バツテリー １; |
13S-8212B-00-00 |
from US $26.21 |
||
|
8
|
8
51Y-21639-00-00 Damper 2 |
51Y-21639-00-00 |
from US $1.84 |
||
|
9
|
9
13S-21649-00-00 Damper |
13S-21649-00-00 |
from US $1.70 |
||
|
10
|
10
133-82131-00-00 Band, Battery |
133-82131-00-00 |
from US $12.89 |
||
|
11
|
11
90183-04039-00 Nut, Spring |
90183-04039-00 |
from US $1.98 |
||
|
12
|
12
903-38060-18-00
Plug
|
903-38060-18-00 |
— | ||
| replacement | |||||
|
12
|
12
903-38071-80-00 Plug |
903-38071-80-00 |
from US $1.98 |
||
|
13
|
13
13S-821A1-00-00 Seat Btry. Assy 1 |
13S-821A1-00-00 |
from US $10.06 |
||
|
14
|
14
90464-13004-00 Clamp |
90464-13004-00 |
from US $3.83 |
||
|
15
|
15
90109-06171-00 Bolt |
90109-06171-00 |
from US $1.98 |
||
|
16
|
16
902-69070-10-00 Rivet |
902-69070-10-00 |
from US $1.70 |
||
|
17
|
17
13S-21652-00-00 Protectorプロテクター; |
13S-21652-00-00 |
from US $35.65 |
||
|
18
|
18
13S-24140-00-00 Damper Plate Assy |
13S-24140-00-00 |
from US $22.81 |
||
|
19
|
19
13S-21611-00-P3 Fender, RearＳＭＸ |
13S-21611-00-P3 |
from US $145.07 |
||
|
20
|
20
13S-2172P-00-00 Seatシート; |
13S-2172P-00-00 |
from US $9.92 |
||
|
21
|
21
13S-2173P-00-00 Seat 2シート; |
13S-2173P-00-00 |
from US $9.92 |
||
|
22
|
22
13S-21735-00-00 Seal 2シール ２; |
13S-21735-00-00 |
from US $5.10 |
||
|
23
|
23
4D9-21717-00-00 Damper |
4D9-21717-00-00 |
from US $0.85 |
||
| replacement | |||||
|
23
|
23
90520-02014-00 Damper, Plate |
90520-02014-00 |
from US $1.34 |
||
|
24
|
24
13S-21669-00-00 Sealシール; |
13S-21669-00-00 |
from US $5.53 |
||
|
25
|
25
13S-216A2-00-00 Seal, 2シール， ２; |
13S-216A2-00-00 |
from US $5.53 |
||
|
26
|
26
13S-216A3-00-00 Seal, 3シール， ３; |
13S-216A3-00-00 |
from US $6.66 |
||
|
27
|
27
13S-216A4-00-00 Seal, 4シール， ４; |
13S-216A4-00-00 |
from US $6.66 |
||
|
28
|
28
13S-2162R-00-P1 Fender 2ＭＢＬ２ |
13S-2162R-00-P1 |
from US $126.69 |
||
|
29
|
29
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.34 |
||
|
30
|
30
903-38060-18-00
Plug
|
903-38060-18-00 |
— | ||
| replacement | |||||
|
30
|
30
903-38071-80-00 Plug |
903-38071-80-00 |
from US $1.98 |
||
|
31
|
31
5GM-27445-00-00 Plate 1プレート １; |
5GM-27445-00-00 |
from US $2.13 |
||
|
32
|
32
90480-08005-00 Grommet |
90480-08005-00 |
from US $1.34 |
||
|
33
|
33
13S-21732-00-00 Seal 1シール １; |
13S-21732-00-00 |
from US $11.33 |
||
|
34
|
34
13S-21575-00-00 Seal 1シール １; |
13S-21575-00-00 |
from US $4.68 |
||
|
35
|
35
13S-2173N-00-00 Seal 4シール ４; |
13S-2173N-00-00 |
from US $4.96 |
||
|
36
|
36
902-69070-10-00 Rivet |
902-69070-10-00 |
from US $1.70 |
||
|
37
|
37
97702-50014-00 Screw, Truss Head Tapping |
97702-50014-00 |
from US $1.42 |
||
| replacement | |||||
|
37
|
37
97707-50014-00 Screw, Truss Head Tapping |
97707-50014-00 |
from US $1.42 |
||
|
38
|
38
13S-21131-00-00 Bracket |
13S-21131-00-00 |
from US $66.45 |
||
|
39
|
39
90179-06010-00 Nut |
90179-06010-00 |
from US $3.40 |
||
|
40
|
40
4G0-21639-00-00 Damper 2 |
4G0-21639-00-00 |
from US $2.41 |
||
| replacement | |||||
|
40
|
40
903-38070-18-00 Plug |
903-38070-18-00 |
from US $4.82 |
||
|
41
|
41
5YT-24665-00-00 Damper |
5YT-24665-00-00 |
from US $1.70 |
||
|
42
|
42
90111-06104-00 Bolt, Button Head |
90111-06104-00 |
from US $1.56 |
||
| replacement | |||||
|
42
|
42
92012-06016-00 Bolt, Button Head |
92012-06016-00 |
from US $1.56 |
||
|
43
|
43
2C0-28110-00-00 Tool Kit, 2ツールキツト ２; |
2C0-28110-00-00 |
from US $45.73 |
||
|
44
|
44
4XV-2814F-00-00 Box, Spark Plug．ボツクス， スパーク プラグ; |
4XV-2814F-00-00 |
from US $28.76 |
||
|
45
|
45
4FM-28135-00-00 Spanner, Special．スパナ，スペシヤル; |
4FM-28135-00-00 |
from US $17.14 |
||
|
46
|
46
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
46
|
46
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
