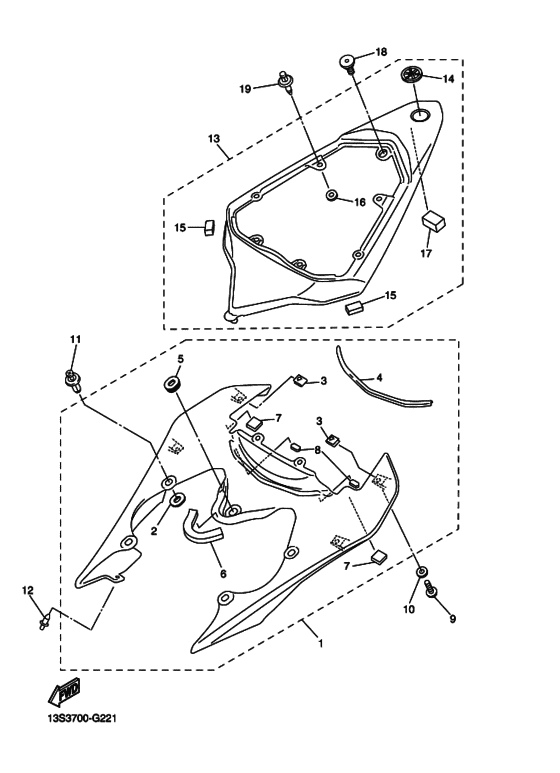

Side cover Diagram Yamaha YZF-R6/ YZF600 R6 RaceBase
- Year
- 2008
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 13SA
- Sales region
- Japan (010)
- Базовая модель
- YZF-R6
- Engine Capacity
- 600
- Color Variant
- A
- Note
- 競技用モデル
- Model
- YZF-R6R (RaceBase)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13S-21710-00-P3 Side Cover Assy 1サイドカバーアセンブリ １; ＳＭＸ |
13S-21710-00-P3 |
from US $190.66 |
||
|
2
|
2
5PW-2174X-00-00 Damper．ダンパ; |
5PW-2174X-00-00 |
from US $1.70 |
||
|
3
|
3
901-83050-76-00
Nut,spring
．ナツト，スプリング; |
901-83050-76-00 |
— | ||
| replacement | |||||
|
3
|
3
901-83050-A6-00 Nut, Spring．ナツト，スプリング; |
901-83050-A6-00 |
from US $1.84 |
||
|
4
|
4
13S-2171L-00-00 Mole, Side Cover 1．モール，サイドカバー １; |
13S-2171L-00-00 |
from US $4.25 |
||
|
5
|
5
90480-01558-00 Grommet．グロメツト; |
90480-01558-00 |
from US $1.56 |
||
|
6
|
6
2C0-28237-00-00 Damper 3．ダンパ ３; |
2C0-28237-00-00 |
from US $2.13 |
||
|
7
|
7
1UF-15379-00-00 Seal．シール; |
1UF-15379-00-00 |
from US $1.70 |
||
|
8
|
8
5SL-28416-00-00 Damper 2．ダンパ ２; |
5SL-28416-00-00 |
from US $1.84 |
||
|
9
|
9
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
10
|
10
902-02051-80-00 Washer, Plateワツシヤ，プレート; |
902-02051-80-00 |
from US $1.66 |
||
|
11
|
11
902-69070-76-00 Rivet(4Jh)リベツト; |
902-69070-76-00 |
from US $1.66 |
||
|
12
|
12
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
13
|
13
13S-21720-00-P1 Side Cover Assy 2サイドカバーアセンブリ ２ ; ＷＧ; ＭＢＬ２ |
13S-21720-00-P1 |
from US $167.17 |
||
|
14
|
14
4KN-2836B-10-00 Tuning Fork Mark．チユーニングフオークマーク; |
4KN-2836B-10-00 |
from US $17.86 |
||
|
15
|
15
13S-21639-00-00 Damper 2．ダンパ ２; |
13S-21639-00-00 |
from US $1.70 |
||
|
16
|
16
5SL-84753-00-00 Damper．ダンパ; |
5SL-84753-00-00 |
from US $1.70 |
||
|
17
|
17
4J2-21778-00-00 Cap．ダンパ，ロケーテイング １; |
4J2-21778-00-00 |
from US $1.84 |
||
| replacement | |||||
|
17
|
17
1WG-2143A-00-00 Cap．ダンパ，ロケーテイング １; |
1WG-2143A-00-00 |
from US $5.67 |
||
|
18
|
18
90109-06248-00 Bolt |
90109-06248-00 |
from US $16.15 |
||
|
19
|
19
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.34 |
||
