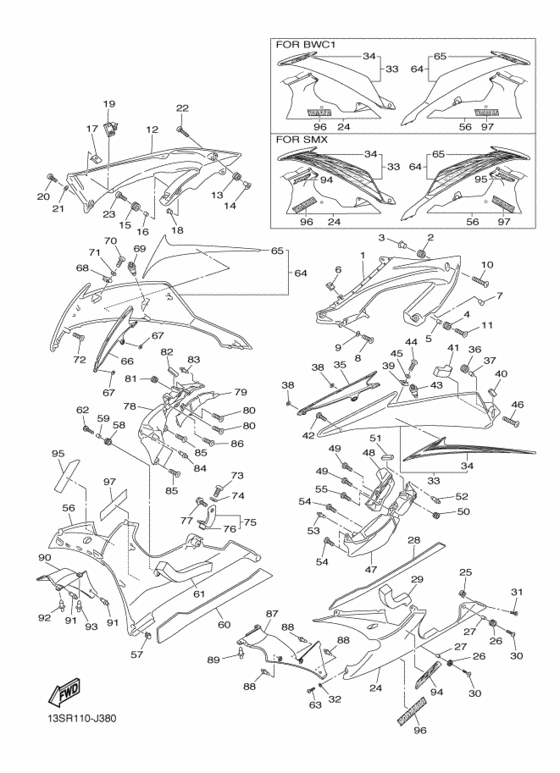

Cowling 2 Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2010
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 13ST
- Sales region
- Europe (010)
- Базовая модель
- YZF-R6 YZFR6Z
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13S-2117V-00-P0 Cover 7UR FOR DPBMC |
13S-2117V-00-P0 |
from US $175.46 |
||
|
2
|
2
90480-12613-00 Grommet |
90480-12613-00 |
from US $22.95 |
||
|
3
|
3
90387-067K8-00 Collar |
90387-067K8-00 |
from US $2.69 |
||
|
4
|
4
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
5
|
5
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
6
|
6
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
6
|
6
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
7
|
7
90338-06134-00 Plug |
90338-06134-00 |
from US $2.69 |
||
|
8
|
8
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
9
|
9
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
10
|
10
90111-06063-00 Bolt, Hex. Socket Button |
90111-06063-00 |
from US $1.84 |
||
|
11
|
11
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
12
|
12
13S-2117W-00-P0 Cover 8UR FOR DPBMC |
13S-2117W-00-P0 |
from US $164.41 |
||
|
13
|
13
90480-12613-00 Grommet |
90480-12613-00 |
from US $22.95 |
||
|
14
|
14
90387-067K8-00 Collar |
90387-067K8-00 |
from US $2.69 |
||
|
15
|
15
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
16
|
16
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
17
|
17
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
17
|
17
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
18
|
18
90338-06134-00 Plug |
90338-06134-00 |
from US $2.69 |
||
|
19
|
19
90464-20014-00 Clamp |
90464-20014-00 |
from US $3.83 |
||
|
20
|
20
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
21
|
21
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
22
|
22
90111-06063-00 Bolt, Hex. Socket Button |
90111-06063-00 |
from US $1.84 |
||
|
23
|
23
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
24
|
24
13S-28385-00-P3 Cover, UnderUR FOR DPBMC,BWC1 |
13S-28385-00-P3 |
from US $327.44 |
||
|
25
|
25
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
25
|
25
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
26
|
26
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
27
|
27
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
28
|
28
13S-2838G-00-00 Seat 1 |
13S-2838G-00-00 |
from US $28.19 |
||
|
29
|
29
13S-2836U-00-00 Damper, Locating 2 |
13S-2836U-00-00 |
from US $11.33 |
||
|
30
|
30
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
31
|
31
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
32
|
32
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
33
|
33
13S-W283U-14-P0 Graphic Set Panel 1UR FOR DPBMC |
13S-W283U-14-P0 |
from US $352.72 |
||
|
34
|
34
13S-28391-C0-00 Graphic, 1UR FOR DPBMC |
13S-28391-C0-00 |
from US $96.01 |
||
|
34
|
34
13S-28391-B0-00 Graphic, 1UR FOR BWC1 |
13S-28391-B0-00 |
from US $21.35 |
||
|
34
|
34
13S-28391-D0-00 Graphic, 1UR FOR SMX |
13S-28391-D0-00 |
from US $199.31 |
||
|
35
|
35
13S-28219-00-00 Cover 1 |
13S-28219-00-00 |
from US $8.22 |
||
|
36
|
36
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
37
|
37
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
38
|
38
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.34 |
||
|
39
|
39
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
39
|
39
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
40
|
40
13S-28415-00-00 Damper 1 |
13S-28415-00-00 |
from US $1.70 |
||
|
41
|
41
13S-24183-00-00 Damper, Locating 3 |
13S-24183-00-00 |
from US $4.39 |
||
|
42
|
42
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
42
|
42
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
43
|
43
902-69070-07-00 Rivet |
902-69070-07-00 |
from US $1.34 |
||
|
44
|
44
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
45
|
45
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
46
|
46
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
47
|
47
13S-2137U-00-00 Guide, Air 1 |
13S-2137U-00-00 |
from US $26.49 |
||
|
48
|
48
13S-2137K-00-00 Guide, Air 3 |
13S-2137K-00-00 |
from US $9.21 |
||
|
49
|
49
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.42 |
||
| replacement | |||||
|
49
|
49
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
50
|
50
90480-01558-00 Grommet |
90480-01558-00 |
from US $1.56 |
||
|
51
|
51
13S-28217-00-00 Damper 1 |
13S-28217-00-00 |
from US $1.84 |
||
|
52
|
52
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
53
|
53
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.34 |
||
|
54
|
54
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
54
|
54
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
55
|
55
97702-50020-00 Screw, Tapping |
97702-50020-00 |
from US $1.56 |
||
| replacement | |||||
|
55
|
55
90167-05078-00 Screw, Tapping |
90167-05078-00 |
from US $1.56 |
||
|
56
|
56
13S-28395-00-P3 Cover, Under 2UR FOR DPBMC,BWC1 |
13S-28395-00-P3 |
from US $237.64 |
||
|
57
|
57
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
57
|
57
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
58
|
58
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
59
|
59
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
60
|
60
13S-2848K-00-00 Seat 2 |
13S-2848K-00-00 |
from US $28.19 |
||
|
61
|
61
13S-2847R-00-00 Damper 1010 |
13S-2847R-00-00 |
from US $12.47 |
||
|
62
|
62
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
63
|
63
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
64
|
64
13S-W283V-14-P0 Graphic Set Panel 2UR FOR DPBMC |
13S-W283V-14-P0 |
from US $309.28 |
||
|
65
|
65
13S-28392-C0-00 Graphic, 2UR FOR DPBMC |
13S-28392-C0-00 |
from US $133.52 |
||
|
65
|
65
13S-28392-B0-00 Graphic, 2UR FOR BWC1 |
13S-28392-B0-00 |
from US $21.35 |
||
|
65
|
65
13S-28392-D0-00 Graphic, 2UR FOR SMX |
13S-28392-D0-00 |
from US $195.06 |
||
|
66
|
66
13S-28229-00-00 Cover 2 |
13S-28229-00-00 |
from US $8.22 |
||
|
67
|
67
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.34 |
||
|
68
|
68
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
68
|
68
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
69
|
69
902-69070-07-00 Rivet |
902-69070-07-00 |
from US $1.34 |
||
|
70
|
70
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
71
|
71
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
72
|
72
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
72
|
72
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
73
|
73
90109-06207-00 Bolt |
90109-06207-00 |
from US $6.52 |
||
|
74
|
74
90202-10024-00 Washer, Plate |
90202-10024-00 |
from US $3.26 |
||
|
75
|
75
13S-2836G-00-00 Bracket 4 |
13S-2836G-00-00 |
from US $13.74 |
||
|
76
|
76
90179-06059-00 Nut |
90179-06059-00 |
from US $3.83 |
||
|
77
|
77
90105-06020-00 Bolt, Flange |
90105-06020-00 |
from US $1.07 |
||
| replacements | |||||
|
77
|
77
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.07 |
||
|
77
|
77
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.42 |
||
|
78
|
78
13S-2137V-00-00 Guide, Air 2 |
13S-2137V-00-00 |
from US $26.49 |
||
|
79
|
79
13S-2137L-00-00 Guide, Air 4 |
13S-2137L-00-00 |
from US $9.21 |
||
|
80
|
80
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.42 |
||
| replacement | |||||
|
80
|
80
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
81
|
81
90480-01558-00 Grommet |
90480-01558-00 |
from US $1.56 |
||
|
82
|
82
13S-28217-00-00 Damper 1 |
13S-28217-00-00 |
from US $1.84 |
||
|
83
|
83
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
84
|
84
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.34 |
||
|
85
|
85
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
85
|
85
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
86
|
86
97702-50020-00 Screw, Tapping |
97702-50020-00 |
from US $1.56 |
||
| replacement | |||||
|
86
|
86
90167-05078-00 Screw, Tapping |
90167-05078-00 |
from US $1.56 |
||
|
87
|
87
13S-2836L-00-00 Panel, Inner 2 |
13S-2836L-00-00 |
from US $17.57 |
||
|
88
|
88
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
89
|
89
902-69060-02-00 Rivet |
902-69060-02-00 |
from US $1.66 |
||
|
90
|
90
13S-2836M-00-00 Panel, Inner 3 |
13S-2836M-00-00 |
from US $17.57 |
||
|
91
|
91
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
92
|
92
902-69060-02-00 Rivet |
902-69060-02-00 |
from US $1.66 |
||
|
93
|
93
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
94
|
94
13S-28328-C0-00 EmblemUR FOR DPBMC |
13S-28328-C0-00 |
from US $17.06 |
||
|
95
|
95
13S-28338-C0-00 EmblemUR FOR DPBMC |
13S-28338-C0-00 |
from US $17.06 |
||
|
96
|
96
13S-2153A-40-00 Emblem, YamahaUR FOR DPBMC |
13S-2153A-40-00 |
from US $18.06 |
||
|
97
|
97
13S-2153A-40-00 Emblem, YamahaUR FOR DPBMC |
13S-2153A-40-00 |
from US $18.06 |
||
