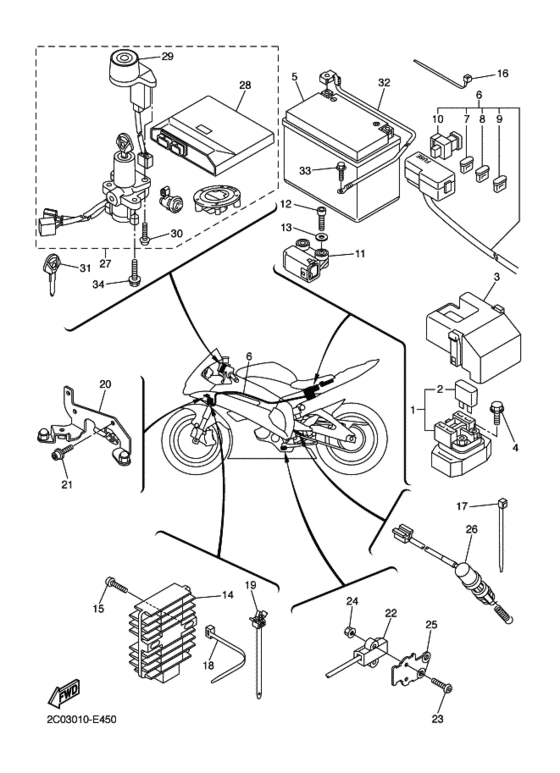

Electrical 2 Diagram Yamaha YZF-R6/ YZF600 R6 RaceBase
- Year
- 2006
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 2C03
- Sales region
- Japan (010)
- Базовая модель
- YZF-R6
- Engine Capacity
- 600
- Color Variant
- A
- Note
- 競技用モデル
- Model
- YZF-R6R (RaceBase)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2C0-81940-00-00 Starter Relay Assy (Rc19-054)スタータリレーアセンブリ; |
2C0-81940-00-00 |
from US $79.58 |
||
|
2
|
2
36Y-82151-00-00 Fuse (15A-Blue)．フユーズ ; １５Ａ−ＢＬ |
36Y-82151-00-00 |
from US $2.98 |
||
|
3
|
3
5SL-82119-10-00 Cover, Lead Wireカバー，リードワイヤ; |
5SL-82119-10-00 |
from US $4.39 |
||
|
4
|
4
95022-06008-00 Bolt, Flange |
95022-06008-00 |
from US $1.42 |
||
|
5
|
5
5VY-82100-00-00
Ytz10S Yuasa Battery
ＹＵＡＳＡ ＹＴＺ１０Ｓ |
5VY-82100-00-00 |
— | ||
| replacements | |||||
|
5
|
5
YTZ-10S00-00-00
Bat Ytz10S (Ptz10S) Yu
ＹＵＡＳＡ ＹＴＺ１０Ｓ |
YTZ-10S00-00-00 |
— | ||
|
5
|
5
BTY-GTZ10-S0-00
Battery gtz10s
ＹＵＡＳＡ ＹＴＺ１０Ｓ |
BTY-GTZ10-S0-00 |
— | ||
|
6
|
6
2C0-82590-00-00 Wire Harness Assyワイヤハーネスアセンブリ; |
2C0-82590-00-00 |
US $814.44 |
||
|
7
|
7
5JJ-82151-10-00 Fuse (15A-Bl)．フユーズ ; １５Ａ−ＢＬ |
5JJ-82151-10-00 |
US $2.83 |
||
| replacement | |||||
|
7
|
7
67F-82151-50-00 Fuse (15A)．フユーズ ; １５Ａ−ＢＬ |
67F-82151-50-00 |
from US $1.98 |
||
|
8
|
8
5JJ-82151-00-00 Fuse (7.5A-Bl)．．フユーズ ; ７５Ａ−ＢＬ |
5JJ-82151-00-00 |
from US $2.98 |
||
|
9
|
9
5JJ-82151-30-00
Fuse (10A-Bl)
．フユーズ ; １０Ａ−ＢＬ |
5JJ-82151-30-00 |
— | ||
| replacement | |||||
|
9
|
9
67F-82151-40-00 Fuse (10A)．フユーズ ; １０Ａ−ＢＬ |
67F-82151-40-00 |
from US $1.98 |
||
|
10
|
10
5JW-82151-10-00 Fuse (50A)．フユーズ ; ５０Ａ |
5JW-82151-10-00 |
from US $9.63 |
||
|
11
|
11
5PS-82576-01-00
Sensor, Lean Angle
|
5PS-82576-01-00 |
— | ||
| replacement | |||||
|
11
|
11
5PS-82576-02-00 Sensor, Lean Angle |
5PS-82576-02-00 |
US $103.09 |
||
|
12
|
12
91317-04025-00 Boltボルト; |
91317-04025-00 |
from US $1.42 |
||
|
13
|
13
90201-042E0-00 Washer, Plateワツシヤ，プレート; |
90201-042E0-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
90201-043H7-00 Washer, Plate (34L)ワツシヤ，プレート; |
90201-043H7-00 |
from US $1.70 |
||
|
14
|
14
4XY-81960-00-00 Rectifier & Regulator Assyレクチフアイヤアンドレギユレータアセンブリ; |
4XY-81960-00-00 |
from US $93.90 |
||
|
15
|
15
92017-06025-00 Bolt, Button Head |
92017-06025-00 |
from US $1.56 |
||
|
16
|
16
90465-15011-00 Clamp |
90465-15011-00 |
from US $1.84 |
||
|
17
|
17
90464-32060-00 Band |
90464-32060-00 |
from US $1.28 |
||
| replacement | |||||
|
17
|
17
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
18
|
18
90464-16061-00 Band |
90464-16061-00 |
from US $1.28 |
||
| replacement | |||||
|
18
|
18
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
19
|
19
90464-12036-00 Clamp |
90464-12036-00 |
from US $1.35 |
||
| replacement | |||||
|
19
|
19
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.35 |
||
|
20
|
20
2C0-23377-00-00 Bracket, Hornブラケツト，ホーン; |
2C0-23377-00-00 |
from US $32.90 |
||
|
21
|
21
90110-06122-00 Bolt, Hexagon Socket Head |
90110-06122-00 |
from US $1.70 |
||
|
22
|
22
5PX-82566-72-00 Switch, Side Stand |
5PX-82566-72-00 |
from US $73.78 |
||
|
23
|
23
92017-05025-00 Bolt, Button Head |
92017-05025-00 |
from US $1.56 |
||
|
24
|
24
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.42 |
||
|
25
|
25
2C0-27961-00-00 Bracket, Sensor 1 |
2C0-27961-00-00 |
from US $18.70 |
||
|
26
|
26
2C0-82530-00-00 Stop Switch Assy |
2C0-82530-00-00 |
from US $33.15 |
||
| replacement | |||||
|
26
|
26
5YU-82530-00-00 Stop Switch Assy |
5YU-82530-00-00 |
from US $33.15 |
||
|
27
|
27
2C0-W8250-00-00 Main Sw. Immobilizer Kit |
2C0-W8250-00-00 |
US $2,523.84 |
||
| replacement | |||||
|
27
|
27
2C0-W8250-01-00 Main Sw. Immobilizer Kit |
2C0-W8250-01-00 |
US $2,523.84 |
||
|
28
|
28
2C0-8591A-00-00 Engine Control Unit Assy．エンジンコントロールユニツトアセンブリ; |
2C0-8591A-00-00 |
US $1,676.40 |
||
| replacement | |||||
|
28
|
28
2C0-8591A-01-00 Engine Control Unit Assy．エンジンコントロールユニツトアセンブリ; |
2C0-8591A-01-00 |
US $1,676.40 |
||
|
29
|
29
2C0-8255P-00-00 Immobilizer. Unit Comp．イモビライザーユニツトコンプリート; |
2C0-8255P-00-00 |
US $387.38 |
||
|
30
|
30
5SL-82113-00-00
Screw
．スクリユ; |
5SL-82113-00-00 |
— | ||
| replacement | |||||
|
30
|
30
5SL-82113-01-00 Screw．スクリユ; |
5SL-82113-01-00 |
from US $1.56 |
||
|
31
|
31
5SL-82511-08-00 Blank KeyＡＰ |
5SL-82511-08-00 |
from US $19.84 |
||
|
32
|
32
2C0-82116-00-00 Wire, Minus Leadワイヤ，マイナスリード; |
2C0-82116-00-00 |
from US $17 |
||
|
33
|
33
91380-06012-00 Boltボルト; |
91380-06012-00 |
from US $1.42 |
||
|
34
|
34
901-09080-G5-00
Bolt
ボルト; |
901-09080-G5-00 |
— | ||
| replacement | |||||
|
34
|
34
901-09081-96-00 Boltボルト; |
901-09081-96-00 |
from US $1.70 |
||
