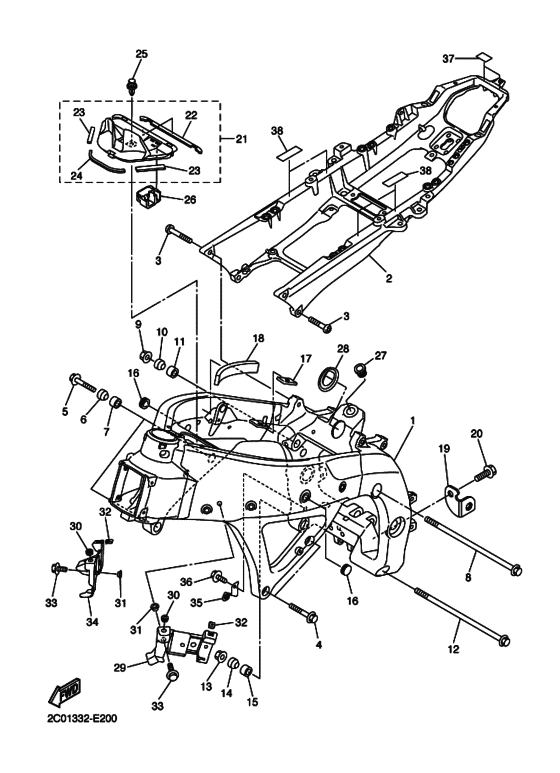

Frame Diagram Yamaha YZF-R6/ YZF600 R6 RaceBase
- Year
- 2006
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 2C03
- Sales region
- Japan (010)
- Базовая модель
- YZF-R6
- Engine Capacity
- 600
- Color Variant
- A
- Note
- 競技用モデル
- Model
- YZF-R6R (RaceBase)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2C0-21110-00-00 Frame Compフレームコンプリート; |
2C0-21110-00-00 |
US $2,822.54 |
||
| replacement | |||||
|
1
|
1
2C0-21110-01-00 Frame Compフレームコンプリート; |
2C0-21110-01-00 |
US $2,822.54 |
||
|
2
|
2
2C0-21190-00-00 Rear Frame Compリヤフレームコンプリート; |
2C0-21190-00-00 |
from US $574.20 |
||
|
3
|
3
90149-10017-00 Screw |
90149-10017-00 |
from US $8.37 |
||
| replacement | |||||
|
3
|
3
901-49100-20-00 Screw |
901-49100-20-00 |
from US $10.58 |
||
|
4
|
4
95024-10040-00 Bolt, Flangeボルト，フランジ; |
95024-10040-00 |
from US $3.68 |
||
|
5
|
5
950-24100-45-00 Bolt, Flangeボルト，フランジ; |
950-24100-45-00 |
from US $3.40 |
||
|
6
|
6
2C0-21414-00-00 Boss, Engine Mount |
2C0-21414-00-00 |
from US $16.43 |
||
|
7
|
7
5VY-21424-00-00 Boss, Engine Mount |
5VY-21424-00-00 |
from US $16.01 |
||
|
8
|
8
90105-12228-00 Bolt, Washer Basedボルト，フランジ; |
90105-12228-00 |
from US $10.06 |
||
|
9
|
9
90179-12248-00 Nutナツト; |
90179-12248-00 |
from US $4.34 |
||
| replacement | |||||
|
9
|
9
90179-12657-00 Nutナツト; |
90179-12657-00 |
from US $6.52 |
||
|
10
|
10
2C0-21414-00-00 Boss, Engine Mount |
2C0-21414-00-00 |
from US $16.43 |
||
|
11
|
11
5VY-21424-00-00 Boss, Engine Mount |
5VY-21424-00-00 |
from US $16.01 |
||
|
12
|
12
90105-12228-00 Bolt, Washer Basedボルト，フランジ; |
90105-12228-00 |
from US $10.06 |
||
|
13
|
13
90179-12248-00 Nutナツト; |
90179-12248-00 |
from US $4.34 |
||
| replacement | |||||
|
13
|
13
90179-12657-00 Nutナツト; |
90179-12657-00 |
from US $6.52 |
||
|
14
|
14
2C0-21414-00-00 Boss, Engine Mount |
2C0-21414-00-00 |
from US $16.43 |
||
|
15
|
15
5VY-21424-00-00 Boss, Engine Mount |
5VY-21424-00-00 |
from US $16.01 |
||
|
16
|
16
90338-15004-00 Plug |
90338-15004-00 |
from US $1.70 |
||
|
17
|
17
2C0-24182-00-00 Damper, Locating 2ダンパ，ロケーテイング ２; |
2C0-24182-00-00 |
from US $1.70 |
||
|
18
|
18
2C0-21486-00-00 Damper 2 |
2C0-21486-00-00 |
from US $3.12 |
||
|
19
|
19
2C0-21435-00-00 Bracket, Muffler 1 |
2C0-21435-00-00 |
from US $12.19 |
||
|
20
|
20
90105-083A2-00 Bolt, Flangeボルト，フランジ; |
90105-083A2-00 |
from US $0.85 |
||
| replacement | |||||
|
20
|
20
958-17080-20-00 Bolt, Flangeボルト，フランジ; |
958-17080-20-00 |
from US $0.85 |
||
|
21
|
21
2C0-2110M-00-00
Cover Assy 1
カバーアセンブリ １; |
2C0-2110M-00-00 |
— | ||
|
22
|
22
2C0-2174X-00-00 Damper．ダンパ; |
2C0-2174X-00-00 |
from US $1.70 |
||
|
23
|
23
2C0-2174Y-00-00 Damper．ダンパ; |
2C0-2174Y-00-00 |
from US $0.67 |
||
|
24
|
24
2C0-21746-00-00 Damper．ダンパ; |
2C0-21746-00-00 |
from US $1.70 |
||
|
25
|
25
902-69070-10-00 Rivet |
902-69070-10-00 |
from US $1.70 |
||
|
26
|
26
2C0-8258J-00-00 Housing, Connector 1 |
2C0-8258J-00-00 |
from US $4.96 |
||
|
27
|
27
2C0-22241-00-00 Bolt 1 |
2C0-22241-00-00 |
from US $17.43 |
||
|
28
|
28
2C0-21279-00-00 Plug, Blind |
2C0-21279-00-00 |
from US $4.68 |
||
|
29
|
29
2C0-2833A-00-00 Bracket 7 |
2C0-2833A-00-00 |
US $13.54 |
||
|
30
|
30
90480-10003-00 Grommet |
90480-10003-00 |
from US $1.56 |
||
|
31
|
31
90387-06048-00 Collarカラー; |
90387-06048-00 |
from US $3.83 |
||
|
32
|
32
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
32
|
32
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
33
|
33
95807-06020-00 Bolt, Flange |
95807-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
33
|
33
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
34
|
34
2C0-2833E-00-00 Bracket 8 |
2C0-2833E-00-00 |
US $23.27 |
||
|
35
|
35
2C0-2836G-00-00 Bracket 4 |
2C0-2836G-00-00 |
from US $9.98 |
||
|
36
|
36
90105-06020-00 Bolt, Flangeボルト，フランジ; |
90105-06020-00 |
from US $1.07 |
||
| replacements | |||||
|
36
|
36
95817-06014-00 Bolt, Flangeボルト，フランジ; |
95817-06014-00 |
from US $1.07 |
||
|
36
|
36
950-27060-20-00 Bolt, Flangeボルト，フランジ; |
950-27060-20-00 |
from US $1.42 |
||
|
37
|
37
2C0-21566-00-00 Tape, 1 |
2C0-21566-00-00 |
from US $2.55 |
||
|
38
|
38
2C0-21567-00-00 Tape, 2 |
2C0-21567-00-00 |
from US $3.68 |
||
