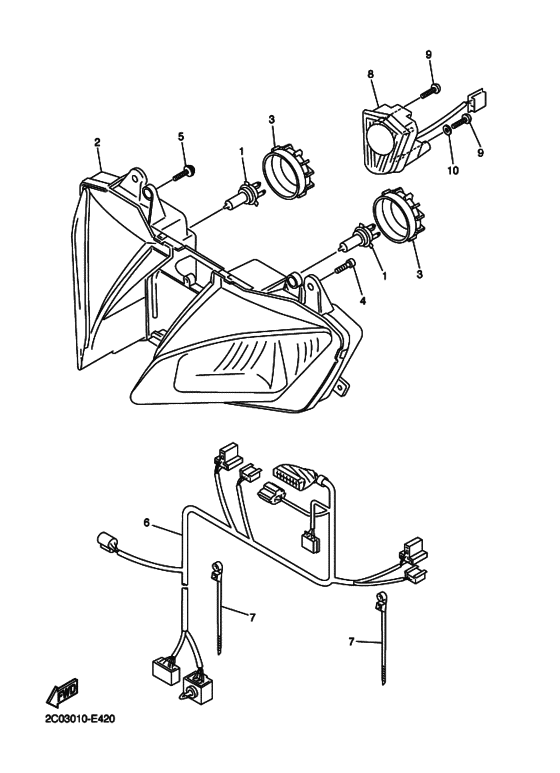

Headlight Diagram Yamaha YZF-R6/ YZF600 R6 RaceBase
- Year
- 2006
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 2C03
- Sales region
- Japan (010)
- Базовая модель
- YZF-R6
- Engine Capacity
- 600
- Color Variant
- A
- Note
- 競技用モデル
- Model
- YZF-R6R (RaceBase)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4SV-84314-00-00 Bulb (12V-55W)１２Ｖ−５５Ｗ; （Ｈ７）ＨＡＬＯＧＥＮ |
4SV-84314-00-00 |
from US $40.76 |
||
| replacement | |||||
|
1
|
1
5B2-H4314-00-00 Bulb, Headlight (H7, 12V-55W)１２Ｖ−５５Ｗ; （Ｈ７）ＨＡＬＯＧＥＮ |
5B2-H4314-00-00 |
US $30.18 |
||
|
2
|
2
2C0-84303-00-00 Headlight Unit Assy |
2C0-84303-00-00 |
from US $839.52 |
||
|
3
|
3
5SL-84397-00-00 Cover, Socketカバー，ソケツト; |
5SL-84397-00-00 |
from US $10.91 |
||
|
4
|
4
977-07500-16-00
Screw, Tapping(4Mv)
スクリユ，トラスヘツドタツピング; |
977-07500-16-00 |
— | ||
| replacement | |||||
|
4
|
4
90167-05077-00 Screw, Tapping(4Tv)スクリユ，トラスヘツドタツピング; |
90167-05077-00 |
from US $1.84 |
||
|
5
|
5
90160-05006-00 Screw, Round Tapping |
90160-05006-00 |
from US $1.34 |
||
|
6
|
6
2C0-84359-00-00 Cord, Headlightコード，ヘツドライト; |
2C0-84359-00-00 |
US $172.70 |
||
|
7
|
7
90464-47001-00 Clamp |
90464-47001-00 |
from US $3.68 |
||
|
8
|
8
2C0-84301-00-00
Pilot Light Assy 1
|
2C0-84301-00-00 |
— | ||
|
9
|
9
97707-40016-00 Screw, Tappingスクリユ，タツピング; |
97707-40016-00 |
from US $1.42 |
||
|
10
|
10
90201-047A2-00 Washer, Plateワツシヤ，プレート; |
90201-047A2-00 |
from US $1.70 |
||
